Description

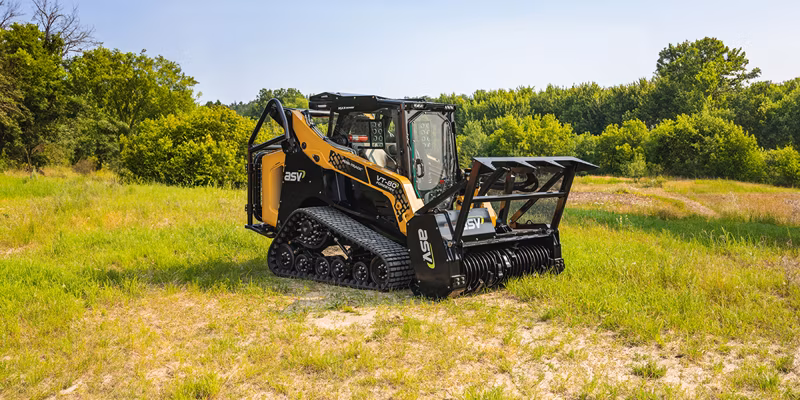

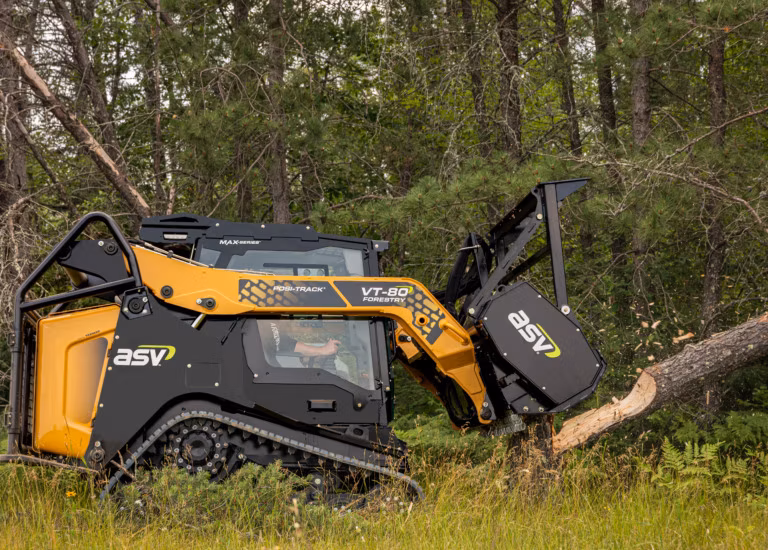

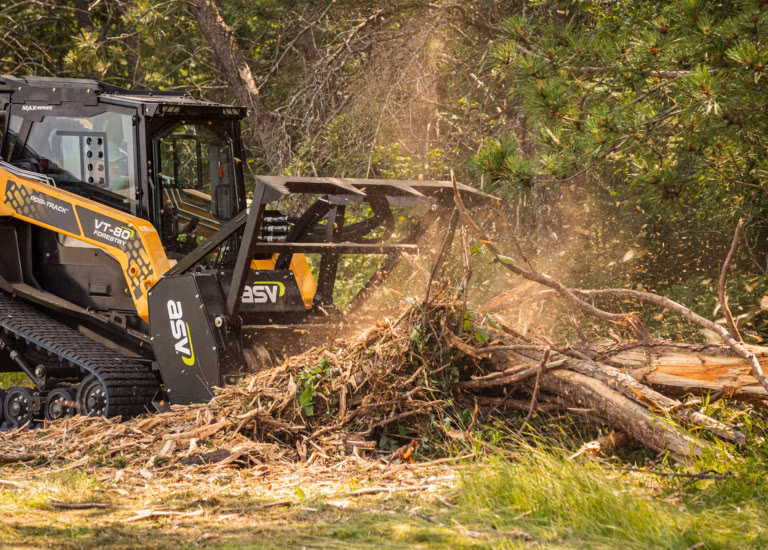

MULCHING POWER. Be a Force in Nature with the MAX-Series™ VT-80 Forestry Posi-Track® compact track loader. Despite its mid-sized frame, the machine packs a heavy punch to play with big forestry equipment. High flow performance comes standard for optimal performance while running mulchers. Safety takes the front seat with the VT-80 Forestry as one of the industry’s only compact track loaders to meet forestry equipment safety standards.
Specifications
Manufacturer
ASV
Model
VT-80 Forestry
Year
2025
Category
Loaders
Subcategory
Compact Track Loaders
Ground Clearance
13 in
Overall Length with Bucket
148.7 in
Reach at Dump HeightReach at Dump Height
32 in
Track Width
17.7 in
Length of Track on Ground
64.5 in
Front & Rear Roller Wheels
14 in
Middle Roller Wheels
10 in
Full Length
148.7 in
Hinge Pin Height
126.5 in
Machine Height
86 in
Width
70 in
TRAVEL SPEED, MAXIMUM- 1ST SPEED
6.1 mph
TRAVEL SPEED, MAXIMUM- 2ND SPEED
9.1 mph
Drive System
Two hydrostatic direct drive sprockets controlled by single joystick
Track Drive Sprocket
Elevated with low-friction, replaceable sprocket rollers
Undercarriage Suspension
Two independent torsion axles per undercarriage
Engine Power
74.3 hp
Engine Type
Diesel, 4-cylinder, intercooled, turbocharged
Engine Model
Yanmar 4TN86CHT
Engine Cooling System
Belt-driven fan and anti-freeze filled radiator cooling system
Intake Air Cleaner
Dual-Stage
Emission Controls
Meets all U S EPA Tier 4 final standards
Torque Peak
194.9 ft-lb
Gross Horsepower
74.3 hp
Engine Speed
Hand-operated dial and foot throttle
Auxiliary Hydraulic Controls
Intermittent via joystick button or continuous via console switch
Couplers
1/2 in Flat Face Couplers
Standard Pump Capacity
24.7 gpm
Optional High Flow
34.3 gpm
Maximum System Pressure
3,771 psi
Auxiliary Hydraulic Cooling System
High efficiency side-by-side radiator and oil cooler
Loader Arms
Vertical
Operating Weight
9,645 lbs
Rated Operating Capacity One @ 35%
2,800 lbs
Rated Operating Capacity Two @ 50%
4,000 lbs
Ground Pressure
4.2 psi
Shipping Weight
8,911 lbs
Tipping Load
8,000 lbs
Rear Angle of Departure
34 Degrees
Bucket Roll Back at Ground Level
20 Degrees
Fuel Tank Capacity
21.4 gal
Ground Contact Area
2,283 in<sup>2<sup\>
Outlets
1-12 V port outlet inside operator station
Wiring
Pre-wired for all factory-available accessories
Nominal Charge
12 V
Battery
800 CCA
Alternator Charging System
80 Amp
ROPS
ISO 8082-Forestry
FOPS
ISO 8083-Forestry
