Description

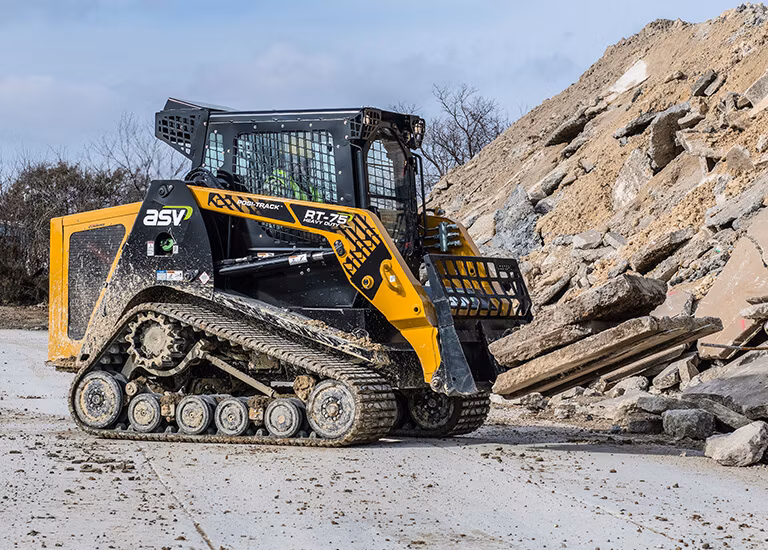

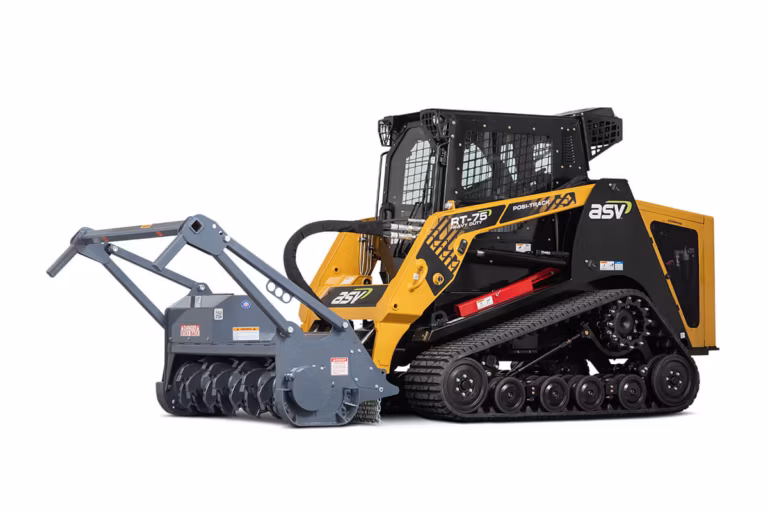

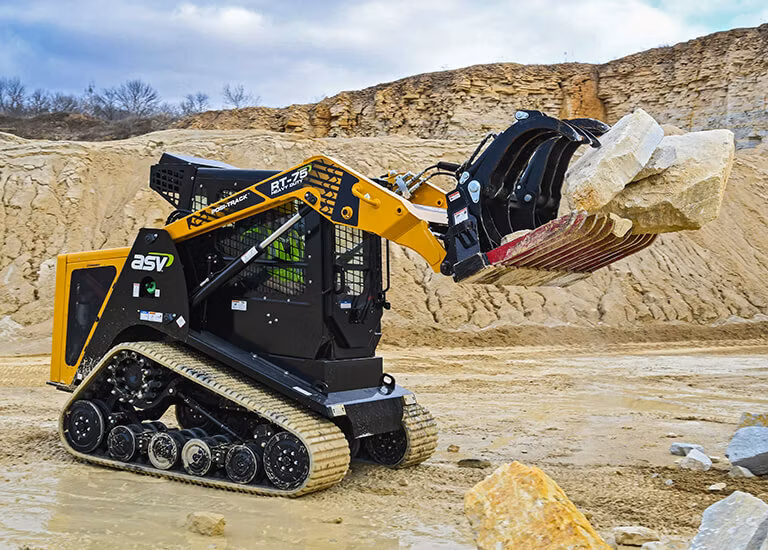

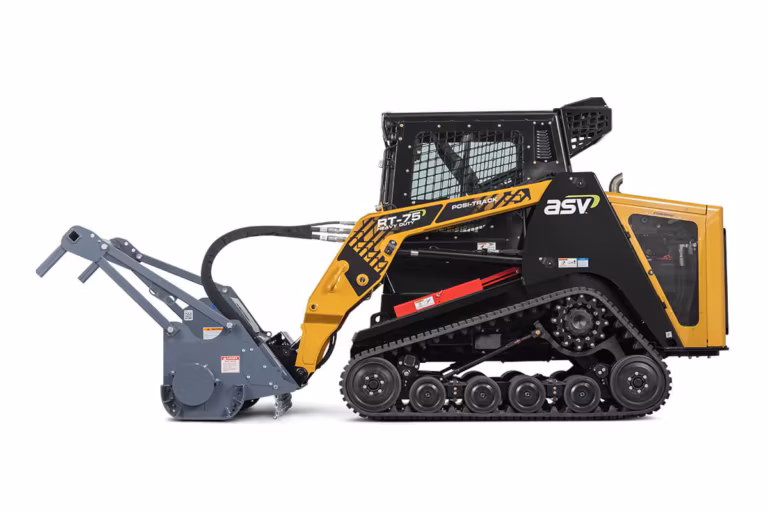

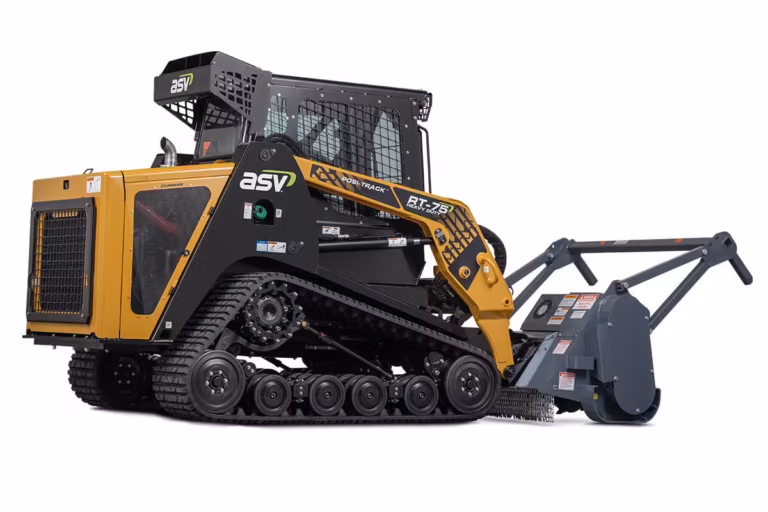

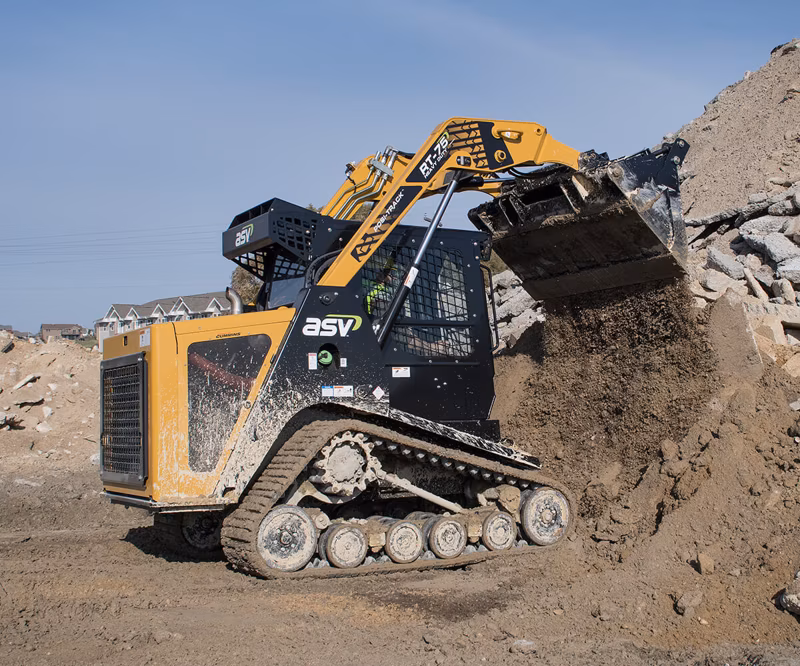

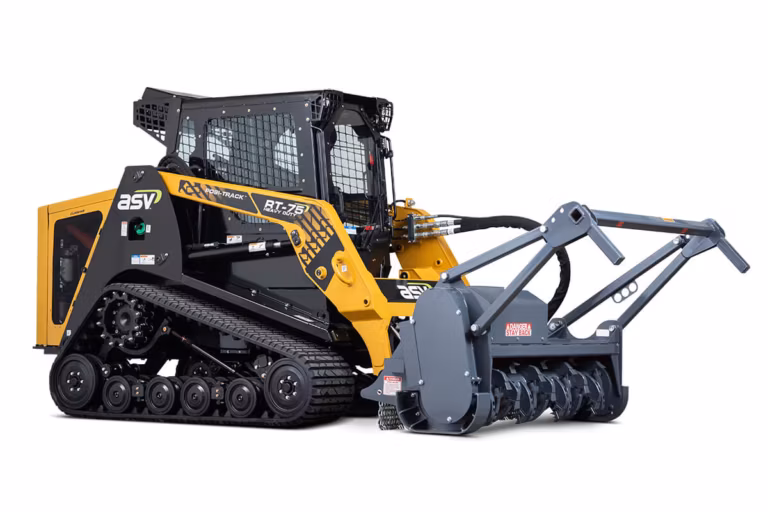

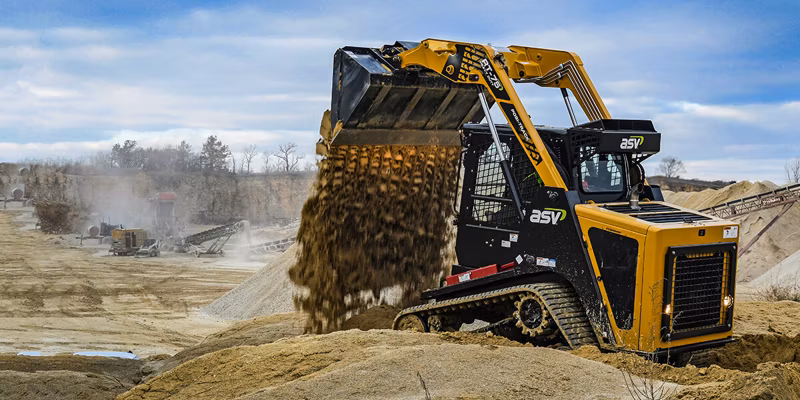

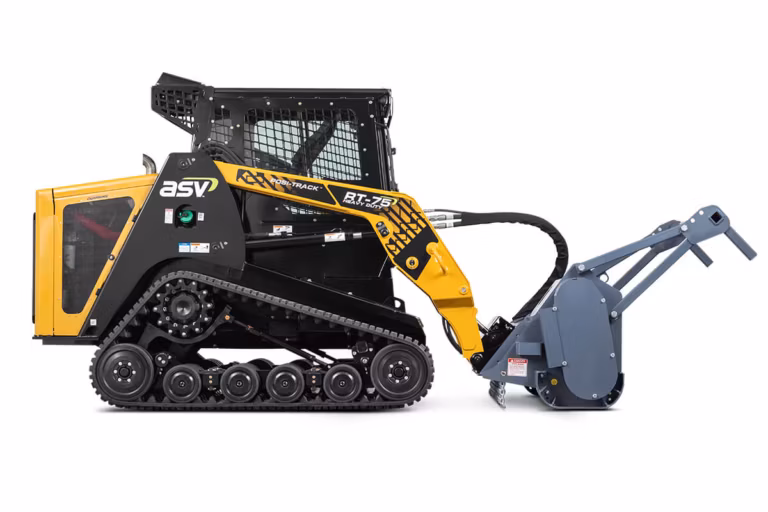

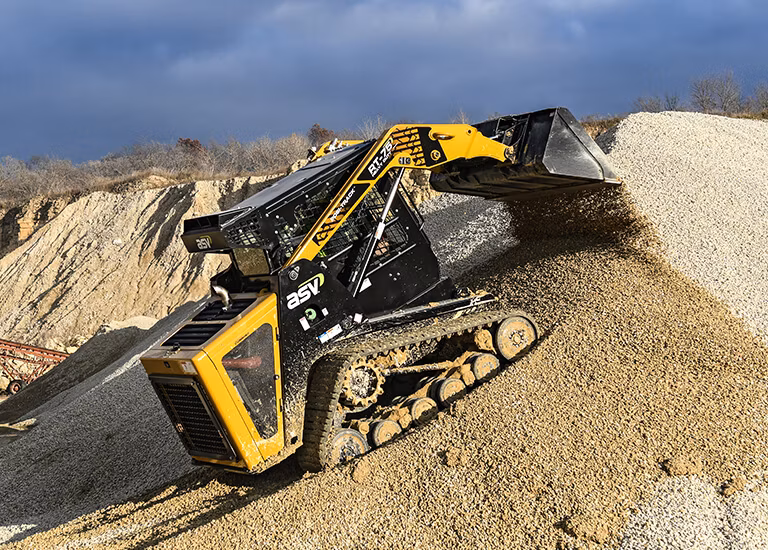

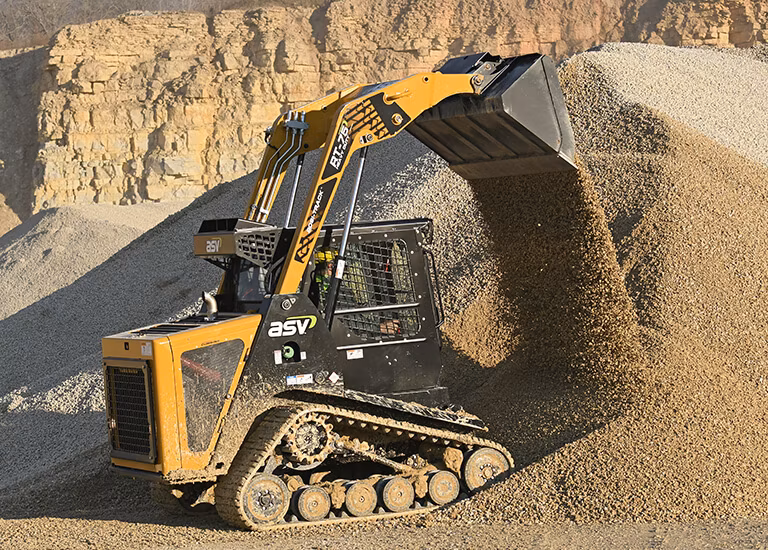

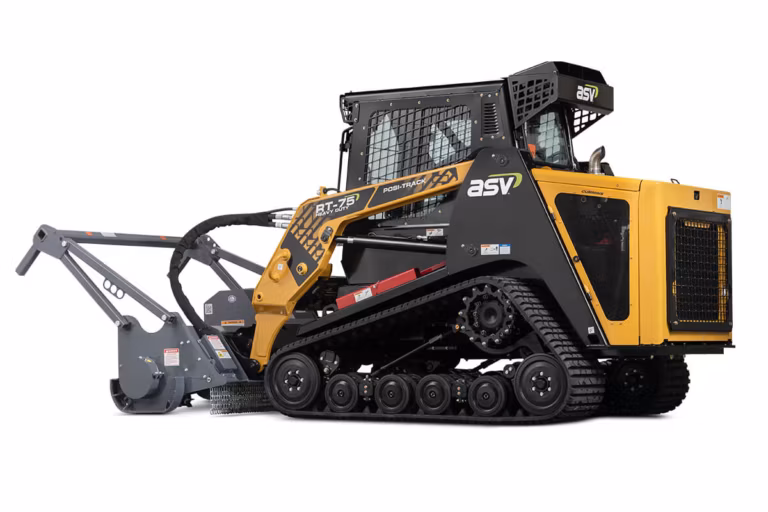

When The Duty Is Heavy The RT-75 HD is built to get more done, especially in forestry and mulching applications, while requiring less maintenance. Like the RT-75, the HD provides the industry’s highest ground clearance, lowest ground pressure, longest track life and best traction over all types of surfaces while providing some heavy duty extras. Take On More The HD model ensures our operators get maximum durability, serviceability and productivity in the toughest conditions.
Specifications
Manufacturer
ASV
Model
RT-75 Heavy Duty
Year
2025
Category
Loaders
Subcategory
Compact Track Loaders
Loader Arms
Radial
Operating Weight
9650 lbs
Rated Operating Capacity @ 35%
2650 lbs
Rated Operating Capacity @ 50%(one)
3786 lbs
Ground Pressure
STD Track 3.8 psi, OPT Track 3.4 psi
Tipping Load
7571 lbs
Max Single Speed Travel Speed
6.3 mph
Max Travel Speed with 2 Speed
9.3 mph

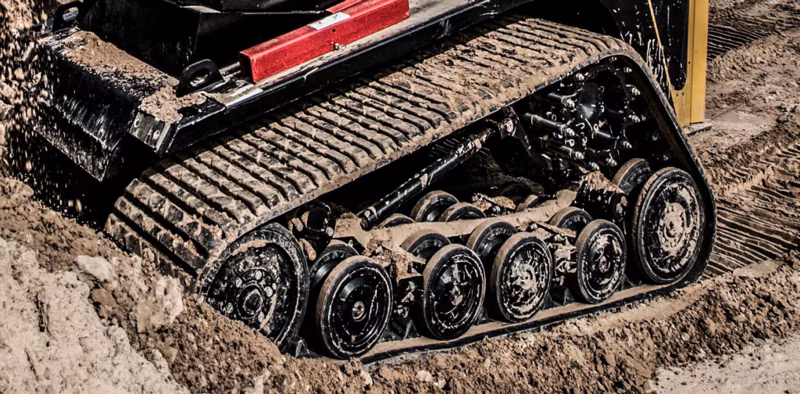

Roller Wheels
48 High Density Polyurethane
Front & Rear Roller Wheels
15 in
Mid-Roller
10 in
Maximum System Pressure
3300 psi
Auxiliary Pump Low Flow
22.6 gpm
Auxiliary Pump High Flow
35.7 gpm
Hydraulic Tank
8 gal
Engine Power
74.0 hp
Displacement
171 in 3
Gross Horsepower
74.0 hp
Torque Peak
221 ft-lb
Fuel Tank
18.4 gal
Engine Coolant
5.5 gal
Engine Oil (Including Filter)
9 quarts
Height to Bucket Pin
125 in
Dump Height at Bucket Discharge
96 in
Rear Angle of Departure
38 Degrees
Bucket Roll Back at Ground Level
25 Degrees
Ground Clearance
14.4 in
Overall Length with Bucket
148 in
Reach at Dump Height
24 in
Track Width
18 in
Length of Track on Ground
71 in
Ground Contact Area
2556 in2
Flat Faced Couplers
5/8 in
Full Length
148 in
Arm Height
125.5 in
Machine Height
90.5 in
Width
70 in
Normal Charge
12 V
Battery
950 CCA
Alternator Charging System
120 Amp
Port Outlet (Inside Operations Cab)
1 - 12 V
