Description

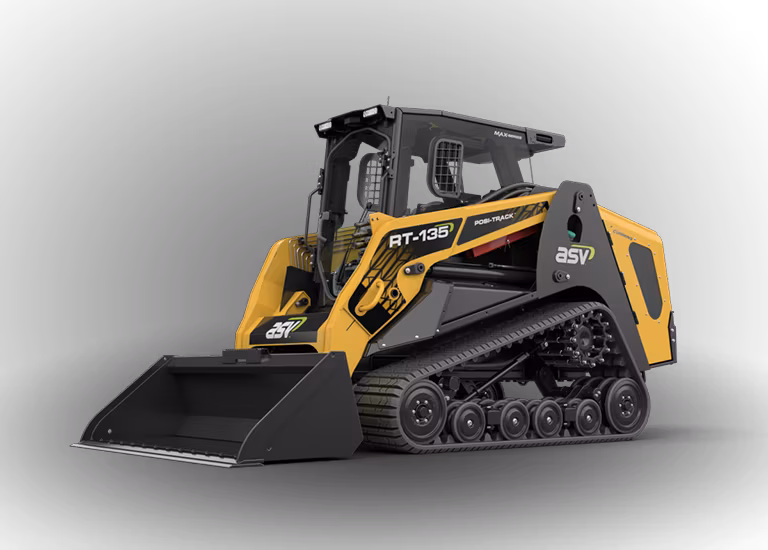

When it comes to power, performance, comfort and serviceability the RT-135 has it all. This machine was built to be a leader in a variety of applications and it’s been built to last.
Specifications
Manufacturer
ASV
Model
RT-135
Year
2025
Category
Loaders
Subcategory
Compact Track Loaders
Operating Weight
12075 lbs
Rated Operating Capacity @ 35%
3500 lbs
Ground Pressure
4.7 psi
Tipping Load
10000 lbs
Max Travel Speed
10 mph
Height to Bucket Pin
125 in
Dump Height at Bucket Discharge
91 in
Rear Angle of Departure
34 Degrees
Bucket Roll Back at Ground Level
45 Degrees
Ground Clearance
15 in
Overall Length with Bucket
157 in
Reach at Dump Height
24 in
Nominal Charge
12 V
Battery
950 CCA
Engine Power
132 hp
Displacement
232 in
Gross Horsepower
132 hp
Torque Peak
360 ft lb
Rated Operating Capacity @ 50%
5000 lbs
Fuel Tank
52 gal
Hydraulic Tank
22 gal
Engine Coolant
5.5 gal
Engine Oil (Including Filter)
12 quarts
Full Length
157 in
Hinge Pin Height
125 in
Machine Height
90 in
Width
76 in
Pump Capacity Low
20 gpm
Pump Capacity High
50 gpm
System Pressure Max Low
3300 psi
System Pressure Max High
4060 psi
Track Width
18 in
Length of Track on the Ground
71 in
Ground Contact Area
2556 in
Roller Wheel Diameter Front & rear wheels
15 in
Roller Wheel Diameter Middle Wheel
10 in
