Description

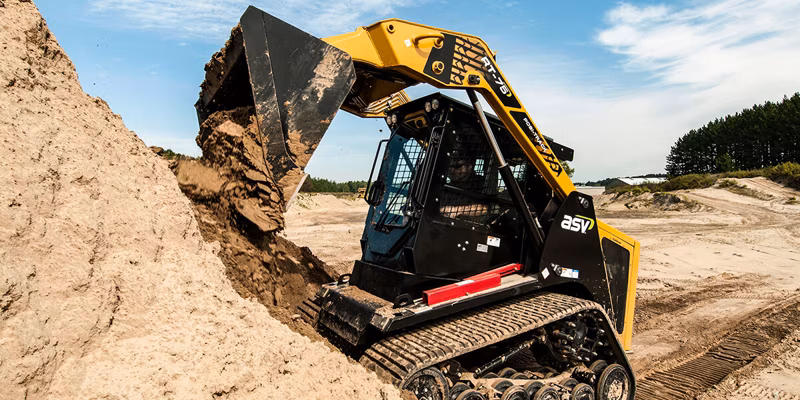

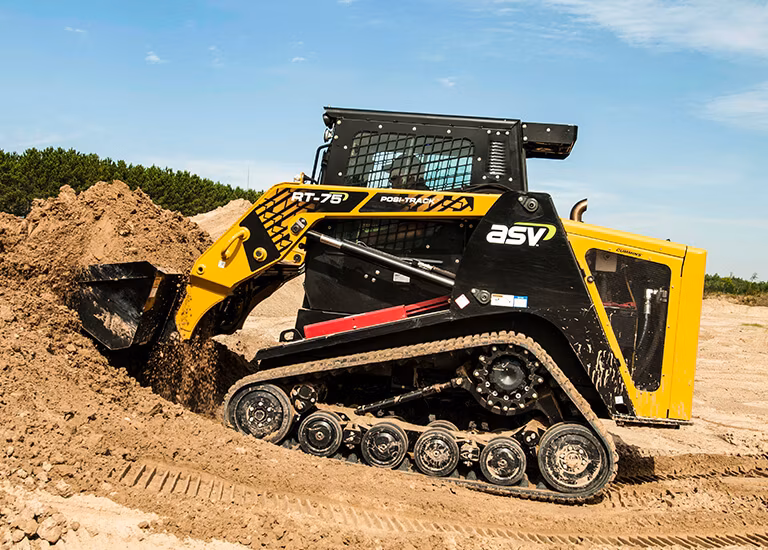

Power And Traction Perfected The RT-75 revolutionizing the compact track loader industry with longer run time and less maintenance. The 75’s provide the industry’s highest ground clearance, lowest ground pressure, longest track life and best traction over all types of surfaces, from brush and mud to snow and ice. More Machine For When You Need It The design ensures our customers have a machine built for maximum durability, serviceability and productivity in rough and dirty applications.
Specifications
Manufacturer
ASV
Model
RT-75
Year
2025
Category
Loaders
Subcategory
Compact Track Loaders
Loader Arms
Radial
Operating Weight
9180 lbs
Rated Operating Capacity @ 35%
2650 lbs
Rated Operating Capacity @ 50%(one)
3786 lbs
Ground Pressure
Standard Track: 3.6 psi
Tipping Load
7571 lbs
Max Single Speed Travel Speed
6.3 mph
Max Travel Speed with 2 Speed
9.3 mph

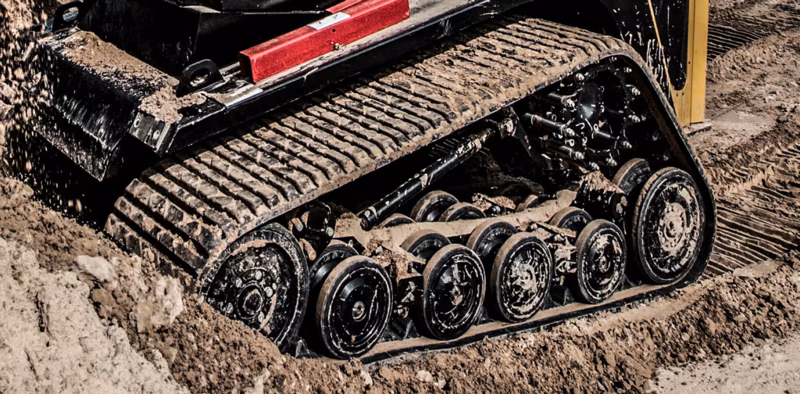

Roller Wheels
48 High Density Polyurethane
Maximum System Pressure
3300 psi
Auxiliary Pump Low Flow
22.6 gpm
Auxiliary Pump High Flow
35.7 gpm
Hydraulic Tank
8 gal
Engine Power
74.0 hp
Displacement
171 in3
Gross Horsepower
74.0 hp
Torque Peak
221 ft-lb
Fuel Tank
18.4 gal
Engine Coolant
5.5 gal
Engine Oil (Including Filter)
9 quarts
Height to Bucket Pin
125.5 in
Dump Height at Bucket Discharge
96 in
Rear Angle of Departure
38 Degrees
Bucket Roll Back at Ground Level
41 Degrees
Ground Clearance
14.4 in
Overall Length with Bucket
148 in
Reach at Dump Height
24 in
Track Width
18 in
Length of Track on the Ground
71 in
Ground Contact Area
2556 in2
Front & Rear Rollers
15 in
Mid-Rollers
10 in
Flat Faced Couplers
5/8 in
Full Length
148 in
Arm-Up Height
125.5 in
Machine Height
87 in
Width
70 in
Normal Charge
12 V
Battery
950 CCA
Alternator Charging System
120 Amp
Port Outlet (Inside Operators Cab)
1 - 12 V
