Description

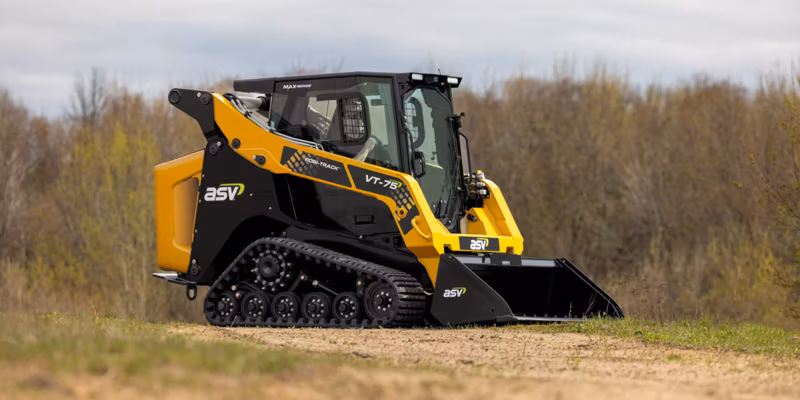

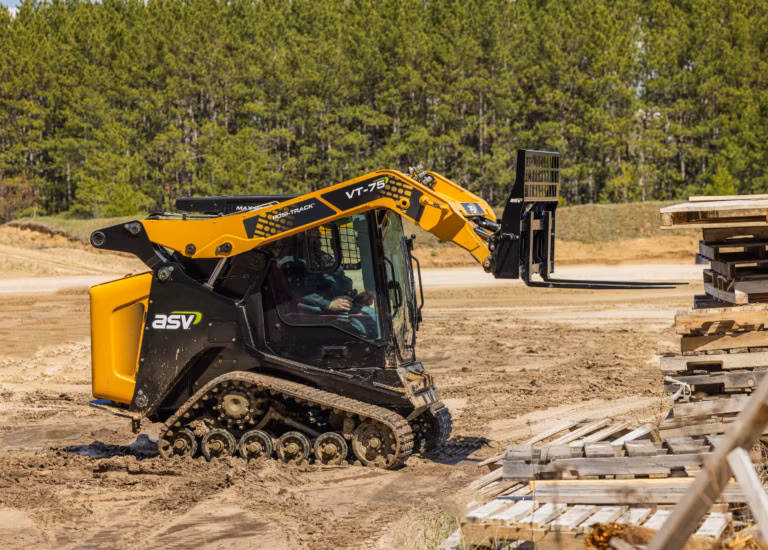

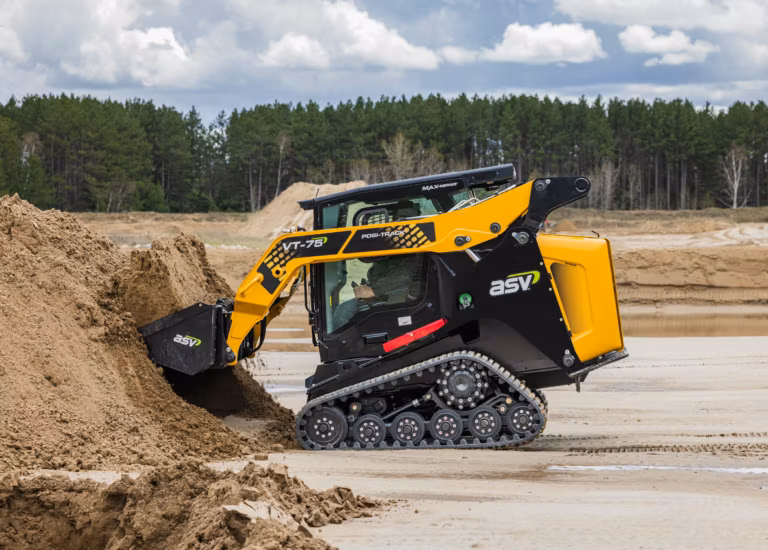

LIFT HIGHER. WORK HARDER. The VT-75 MAX-Series™ Posi-Track® compact track loader is your key to high performance work ranging from handling pallets and loading to a wide range of other construction and landscaping applications. Lift more with the vertical-lift machine, thanks to a high-rated operating capacity and lift height allowing you to load over the edge of standard dump trucks. Plus, take advantage of MAX-Series comfort, visibility and productivity.
Specifications
Manufacturer
ASV
Model
VT-75
Year
2025
Category
Loaders
Subcategory
Compact Track Loaders
Track Width
15 in
Length of Track on Ground
59 in
Front Wheels
14 in
Rear and Middle Wheels
10 in
Full Length
142 in
Hinge Pin Height
126.5 in
Machine Height
82 in
Width
66 in
Ground Clearance
12 in
Drive System
Two Hydrostatic Direct Drive Sprockets Controlled by a Single Joystick
Track Drive Sprockets
Elevated with Low-Friction, Replaceable Sprocket Rollers

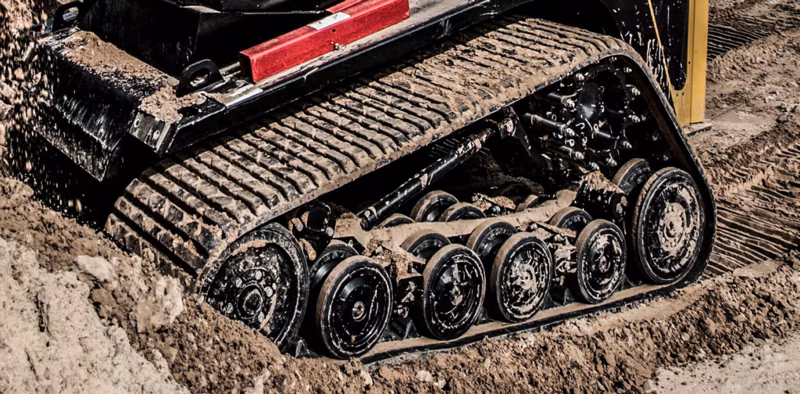

Undercarriage Suspension
Two Independent Torsion Axles per Undercarriage
Engine Power
74.3 hp
Engine Model
Yanmar 4TN86CHT
Engine Type
Diesel, 4-cylinder, intercooled, turbocharged

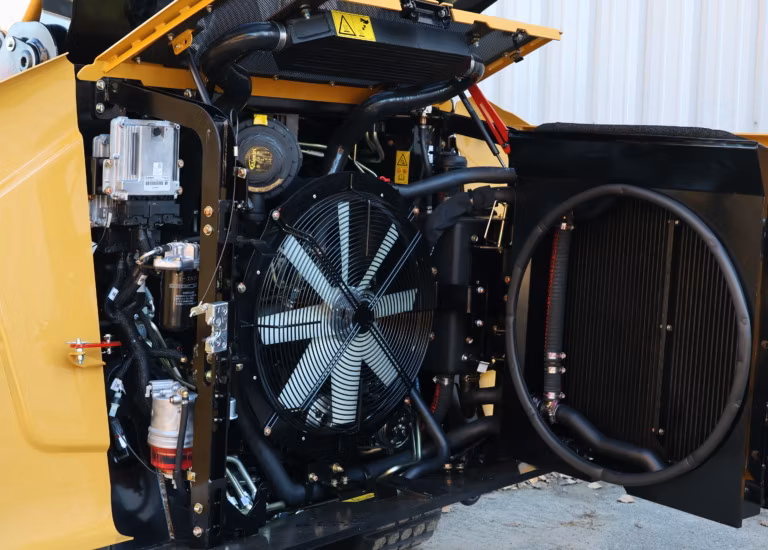

Engine Cooling System
Belt-driven fan and anti-freeze filled radiator cooling system
Intake Air Cleaner
Dual-Stage
Emission Controls
Meets All U S EPA Tier 4 Final Standards
Gross Power Rating @2600 rpm
74.3 hp
Torque, Peak
194.9 ft-lb
Engine Speed
Hand-operated dial, foot throttle optional
Auxiliary Hydraulic Controls
Intermittent via joystick button or continuous via console switch
Couplers
1/2 in Flat Face Couplers
Auxiliary Hydraulic Cooling System
High efficiency side-by-side radiator and oil cooler
Standard Pump Capacity
21.4 gpm
Optional High Flow
26.7 gpm
Loader Arms
Vertical
Operating Weight
7,915 lbs
Rated Operating Capacity One @ 35%
2,300 lbs
Rated Operating Capacity Two @ 50%
3,286 lbs
Ground Pressure
4.5 psi
Tipping Load
6,571 lbs
Travel Speed, Maximum - 1st Speed
6.1 mph
Travel Speed, Maximum - 2nd Speed
9.1 mph
Ground Contact Area
1,770 in<sup>2<sup\>
System Pressure, Max
3,771 psi
Wiring
Pre-Wired for All Factory-Available Accessories
Nominal Charge
12 V
Battery
800 CCA
Charging System
80 Amp Alternator
Outlets
1-12 V Port Inside Operator Station
Illumination
2 - Fixed forward-facing LED lights 2 - Adjustable rear-facing LED lights 2 - LED side lights (optional) 1 - Interior light
Convenience
12 V power port
Fuel Tank
21.4 gal
ROPS
Restraint-ISO 6683, SAE J2292, Cal OSHA 1596, ISO 3471
FOPS
Meets ISO 3449: Level I and II (Optional)
