Description

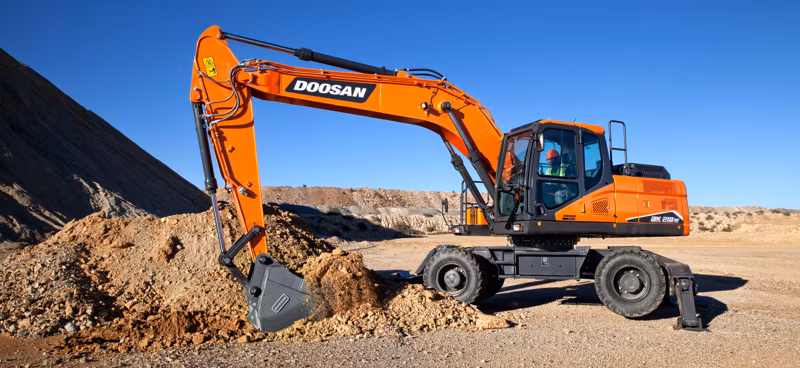

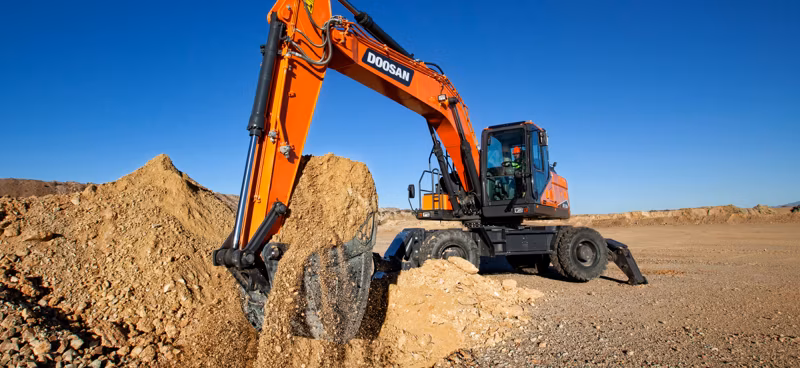

Develon DX210W-7
Specifications
Manufacturer
Develon
Model
DX210W-7
Year
2025
Category
Excavators
Subcategory
Wheel Excavators
Model
DOOSAN DL06V
Rated Flywheel Power (Gross)
189.1 hp @ 1900 rpm
Rated Horse Power (Net)
171.2 hp @ 1900 rpm
Max. Torque (Net)
593 lbf ft @ 1400 rpm
Engine Emissions Tier (Epa)
Tier 4
Engine After Treatment
CEGR + DOC + SRC
Engine Make
Doosan
Engine Name
DOOSAN DL06V
Engine Number Of Cylinders
6
Engine Displacement
359 in³
Swing Performance: Max Swing Torque
46197 lbf ft
Swing Performance: Max Swing Speed (At Efficiency)
9.8 rpm
Engine Coolant
8.56 gal
Engine Oil
7.13 gal
Tire Size
10.00 – 20 - 16PR
Travel Performance: Traction Force (Highest Value)
27172 lbf
Travel Performance: Traveling Speed - Low (Xxx/)
2.17 mph
Travel Performance: Traveling Speed - High (/Xxx)
21.75 mph
Travel Performance: Gradeability
35 ° @ 70 %
Traveling Performance: Max. Tractive Effort
26455 lb
Operating Weight
50706 lb
Standard Bucket Size
1.12 yd³
Max Digging Reach (Ground)
31' 2"
Max Digging Height
32' 4"
Max Digging Depth
19' 4"
Bucket Digging Force - Pressure Up
29983 lbf
Arm Digging Force - Normal
22708 lbf
Fuel Tank
92.72 gal
Transmission
0.66 gal
Noise Level: Guaranteed Sound Power Level
102 dBA
Noise Level: Operator
70 dBA
Ground Clearance
1' 1"
Tread Width
6' 3"
Standard Boom Length
18' 4"
Standard Arm Length
9' 0"
Wheel Base
9' 4"
Shipping Height - Hose (With Attachment)
10' 4"
Shipping Length (Without Attachment)
31' 0"
Shipping Width (Standard)
8' 3"
Overall Height Over Cab
10' 4"
Max Loading Height
23' 4"
Main Pump: Max. Flow Rate (Each)
35.4 gal/min
Main Pump: Quantity
2
Hydraulic System
53.36 gal
Hydraulic Tank
50.72 gal
