Description

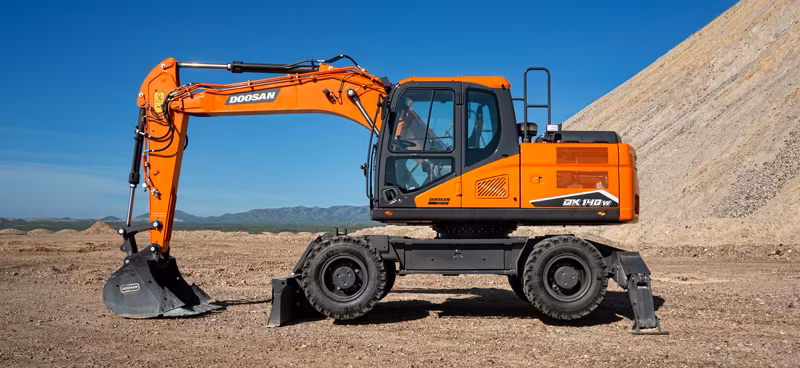

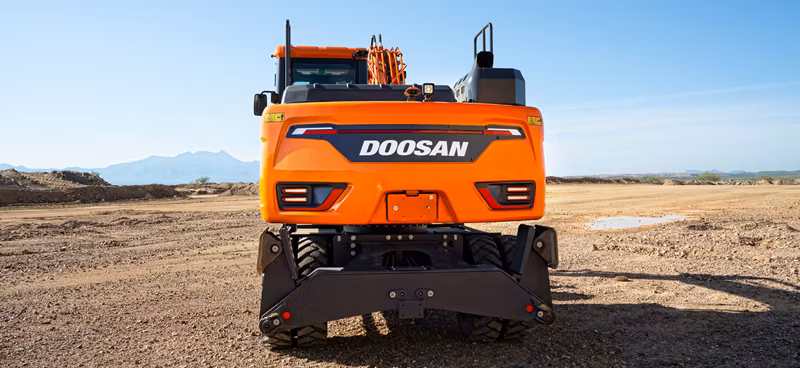

Develon DX140W-7
Specifications
Manufacturer
Develon
Model
DX140W-7
Year
2025
Category
Excavators
Subcategory
Wheel Excavators
Model
DL06P
Rated Flywheel Power (Gross)
136.8 hp @ 2000 rpm
Rated Horse Power (Net)
129.1 hp @ 2000 rpm
Max. Torque (Net)
433686 lbf ft @ 1400 rpm
Engine Emissions Tier (Epa)
Tier 4
Engine After Treatment
CEGR + DOC + SCR
Engine Make
Doosan
Engine Name
Doosan DL06p
Engine Number Of Cylinders
6
Engine Displacement
359 in³
Swing Performance: Max Swing Torque
27080 lbf ft
Swing Performance: Max Swing Speed (At Efficiency)
12 rpm
Engine Coolant
7.77 gal
Engine Oil
5.81 gal
Tire Size
10.00-20-14PR
Travel Performance: Traction Force (Highest Value)
17857 lbf
Travel Performance: Traveling Speed - Low (Xxx/)
2.17 mph
Travel Performance: Traveling Speed - High (/Xxx)
21.75 mph
Travel Performance: Gradeability
30 ° @ 58 %
Traveling Performance: Max. Tractive Effort
17857 lb
Operating Weight
34194 lb
Standard Bucket Size
0.77 yd³
Max Digging Reach (Ground)
24' 2"
Max Digging Height
26' 10"
Max Digging Depth
14' 8"
Arm Digging Force - Pressure Up
16254 lbf
Bucket Digging Force - Pressure Up
20253 lbf
Arm Digging Force - Normal
13938 lbf
Fuel Tank
73.97 gal
Transmission
0.66 gal
Noise Level: Guaranteed Sound Power Level
100 dBA
Noise Level: Operator
69 dBA
Lifting Capacity Over Front @ Horizontal Distance - 10 Ft Above Ground
14661 lb @ 14.76 ft
Lifting Capacity Over Front @ Horizontal Distance - Ground Level
17064 lb @ 14.76 ft
Lifting Capacity Over Front @ Horizontal Distance - 10 Ft Below Ground
14837 lb @ 9.84 ft
Lifting Capacity Over Front @ Horizontal Distance - 3M Above Ground
14661 lb @ 14.76 ft
Lifting Capacity Over Front @ Horizontal Distance - 3M Below Ground
14837 lb @ 9.84 ft
Ground Clearance
1' 1"
Tread Width
6' 4"
Standard Boom Length
14' 5"
Standard Arm Length
6' 10"
Max Loading Height
19' 4"
Main Pump: Max. Flow Rate (Each)
167 gal/min
Main Pump: Quantity
2
Hydraulic System
36.98 gal
Hydraulic Tank
23.78 gal
