Description

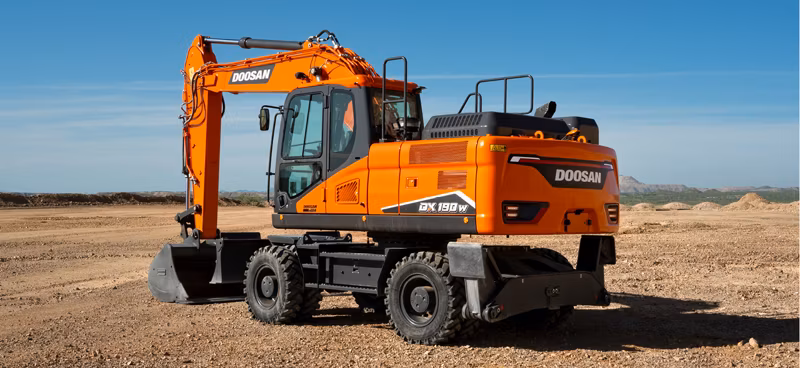

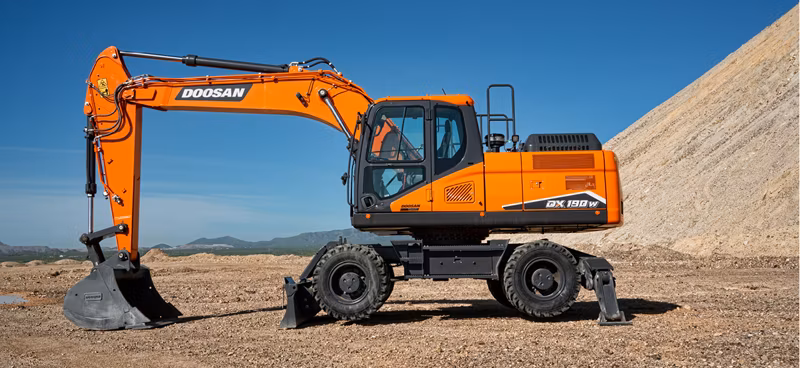

Develon DX190W-7
Specifications
Manufacturer
Develon
Model
DX190W-7
Year
2025
Category
Excavators
Subcategory
Wheel Excavators
Model
DL06V
Rated Flywheel Power (Gross)
174.3 hp @ 1900 rpm
Rated Horse Power (Net)
159.6 hp @ 1900 rpm
Max. Torque (Net)
557 lbf ft @ 1400 rpm
Engine Emissions Tier (Epa)
Tier 4
Engine After Treatment
CEGR + DOC + SCR
Engine Make
Doosan
Engine Name
Doosan DL06V
Engine Number Of Cylinders
6
Engine Displacement
359 in³
Swing Performance: Max Swing Torque
36382 lbf ft
Swing Performance: Max Swing Speed (At Efficiency)
11.2 rpm
Engine Coolant
8.56 gal
Engine Oil
7.13 gal
Tire Size
10.00-20-16 PR
Travel Performance: Traction Force (Highest Value)
26014 lbf
Travel Performance: Traveling Speed - Low (Xxx/)
2.17 mph
Travel Performance: Traveling Speed - High (/Xxx)
21.75 mph
Travel Performance: Gradeability
29 ° @ 58 %
Traveling Performance: Max. Tractive Effort
26455 lb
Operating Weight
46187 lb
Standard Bucket Size
1.05 yd³
Max Digging Reach (Ground)
29' 8"
Max Digging Height
34' 10"
Max Digging Depth
18' 9"
Arm Digging Force - Pressure Up
20952 lbf
Bucket Digging Force - Pressure Up
26527 lbf
Arm Digging Force - Normal
19851 lbf
Fuel Tank
79.52 gal
Transmission
0.66 gal
Noise Level: Guaranteed Sound Power Level
99 dBA
Noise Level: Operator
70 dBA
Ground Clearance
1' 1"
Tread Width
6' 4"
Standard Boom Length
17' 0"
Standard Arm Length
8' 6"
Wheel Base
8' 8"
Shipping Height - Hose (With Attachment)
29' 1"
Shipping Length (Without Attachment)
29' 1"
Shipping Width (Standard)
8' 3"
Overall Height Over Cab
10' 3"
Max Loading Height
22' 2"
Main Pump: Max. Flow Rate (Each)
52.83 gal/min
Main Pump: Quantity
2
Hydraulic System
54.16 gal
Hydraulic Tank
50.72 gal
