Description

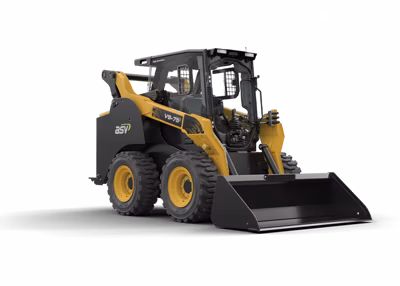

Impossible to Slow You Down. Created with the kind of technology you expect from ASV, this machine was born to be productive. It features industry-leading speed and ground clearance so you can get work done without worrying about running into stumps, rocks and other jobsite obstacles. The VS-75 is built to do a lot without slowing down at all.
Specifications
Manufacturer
ASV
Model
VS-75
Year
2026
Category
Loaders
Subcategory
Skid Steer Loaders
Loader Arms
Vertical
Operating Weight
8910 lbs
Rated Operating Capacity @ 50%
3500 lbs
Tipping Load
7000 lbs
Max Travel Speed with 2 Speed
11 mph
Height to Bucket Pin
130 in
Dump Height at Bucket Discharge
103 in
Dump Reach at Bucket Discharge
36 in
Ground Clearance
Unloaded 10.4 in / Loaded 10 in
Shipping Weight
8095 lbs
Max Travel Speed with 1 Speed,One
8.1 mph
Meet All Emission Standards for Markets
USA and Canada
Chain Size
100 ANSI
Wheel Size
12 x 16.5
Outside Tire Width
72 in
Tractive Effort
8546 lbs
Wheel Base
49 in
Maximum System Pressure
3335 psi
Auxiliary Hydraulic Connections
2 flat face, 1/2 inch 1 flat face 3/8 case drain
Auxiliary Pump Capacity
26.1 gpm
ROPS/FOPS
Meets ISO 3471, ISO 6683, ISO 3449
Illumination
2 Forward Facing Lights, 2 Rear Facing Lights
Fuel Tank
28 gal
Hydraulic Tank
10 gal
Engine Power
74.2 hp
Displacement
177 in3
Gross Horsepower
74.2 hp
Torque Peak
192 lb-ft
Engine Coolant
5 gal
Engine Oil (Including Filter)
9 quarts
Maximum Dump Angle at Full Height
39 Degrees
Rear Angle of Departure
24 Degrees
Bucket Roll Back at Ground Level
30 Degrees
Overall Length with Bucket
146 in
Full Length
131 in
Hinge Pin Height
130 in
Machine Height
84 in
Width
72 in
Ground Clearance
10.4 in
Normal Charge
12 V
Battery
800 CCA
Alternator Charging System
95 Amp
Port Outlet (Inside Operators Cab)
1 - 12 V
