Description

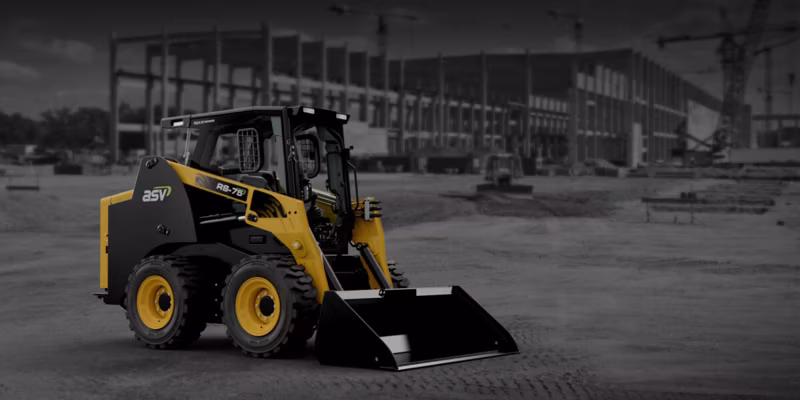

The ASV RS-75 skid steer comes with a powerful diesel engine and powertrain to excel in a range of industries and applications. Built for speed, and with an industry-leading ground clearance height, the RS-75 is able to load more material faster without slowing down so operators can get more done in any condition.
Specifications
Manufacturer
ASV
Model
RS-75
Year
2025
Category
Loaders
Subcategory
Skid Steer Loaders
Loader Arms
Radial
Operating Weight
7595 lbs
Rated Operating Capacity @ 50%
2600 lbs
Engine Power
74.2 hp
Tipping Load
5200 lbs
Max Travel Speed with 2 Speed
11 mph
Height to Bucket Pin
125 in
Dump Height at Bucket Discharge
100 in
Dump Reach at Bucket Discharge
25 in
Maximum Dump Angle at Full Height
34 Degrees
Rear Angle of Departure
24 Degrees
Bucket Roll Back at Ground Level
25 in
Ground Clearance
Unloaded 10.5 in / Loaded 10 in
Overall Length with Bucket
145 in
Shipping Weight
6610 lbs
Max Travel Speed with 1 Speed,One
8.1 mph
Chain Size
100 ANSI
Wheel Size
12 x 16.5 in
Outside Tire Width
72 in
Tractive Effort
8546 lbs
Wheel Base
49 in
Maximum System Pressure
3335 psi
Auxiliary Hydraulic Connections
2 flat face, 1/2 inch 1 flat face 3/8
Auxiliary Pump Flow
21.3 gpm
Normal Charge
12 V
ROPS/FOPS
Meets ISO 3471, ISO 6683, ISO 3449
Illumination
2 Forward Facing Lights, 2 Rear Facing Lights
Fuel Tank
28 gal
Hydraulic Tank
10 gal
Meet All Emission Standards for Markets
USA and Canada
Engine Power
74.2 hp
Displacement
177 in3
Gross Horsepower
74.2 hp
Torque Peak
192 ft-lb
Engine Coolant
5 gal
Engine Oil (Including Filter)
9 quarts
Full Length
146 in
Hinge Pin Height
125 in
Machine Height
84 in
Width
72 in
Ground Clearance
10.5 in
Battery
800 CCA
Alternator Charging System
95 Amp
Port Outlet (Inside Operators Cab)
1 - 12 V
