Description

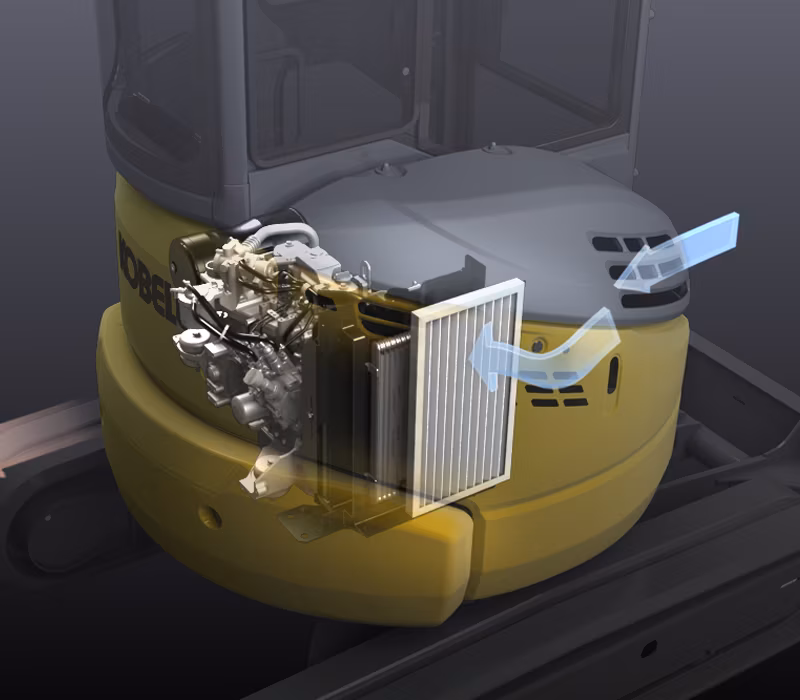

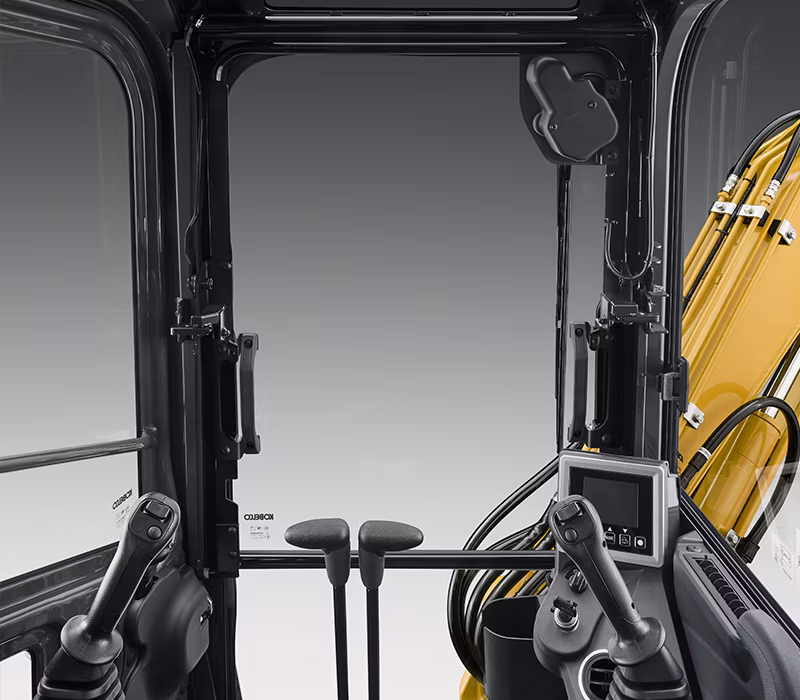

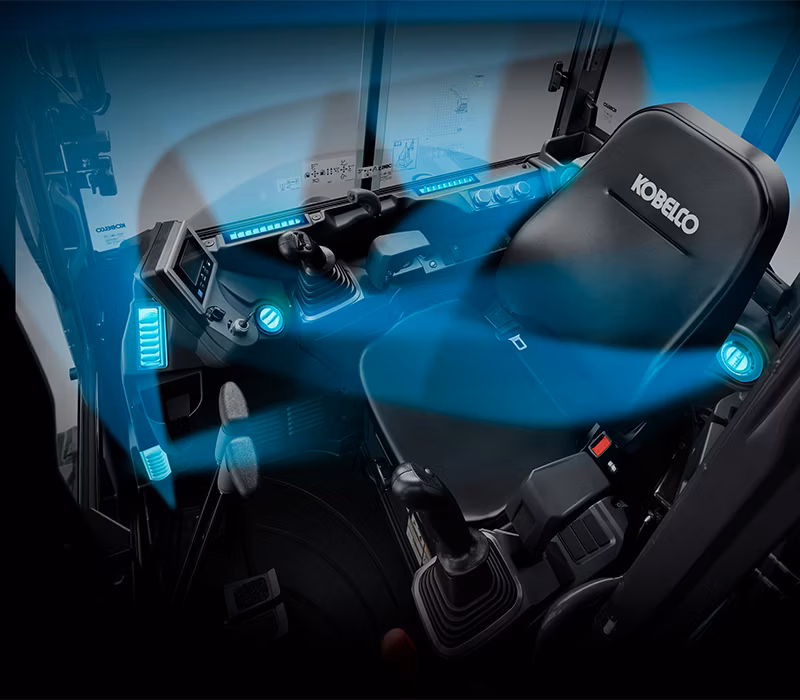

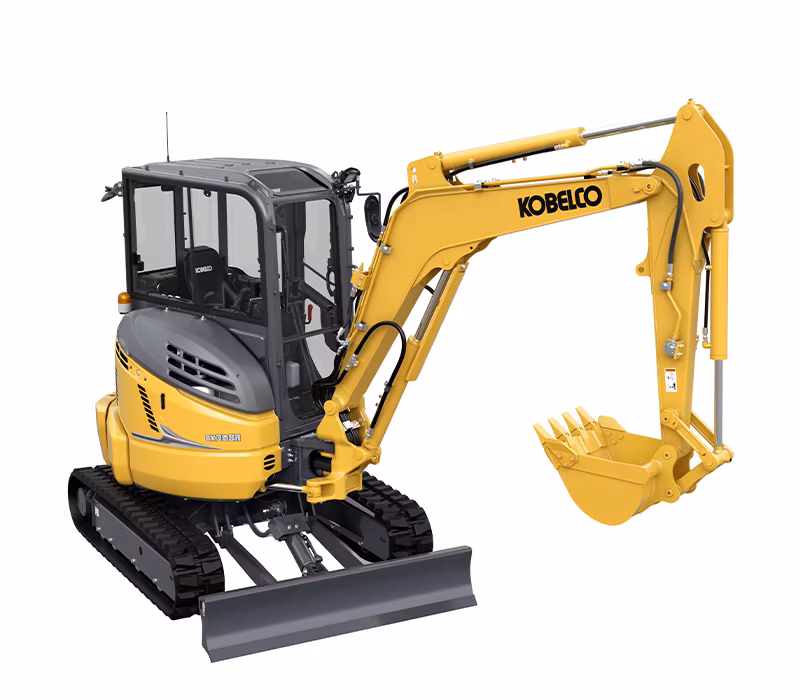

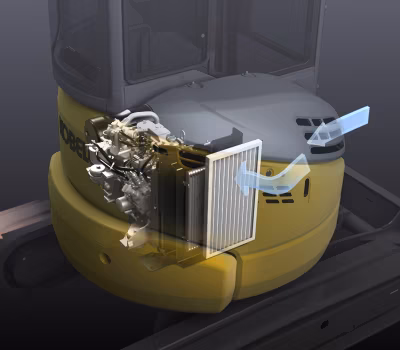

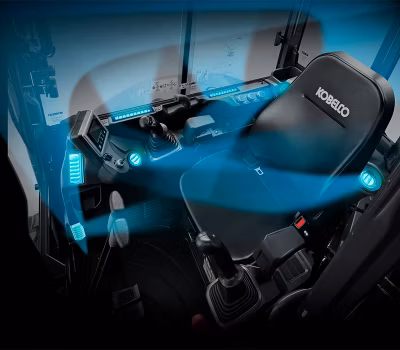

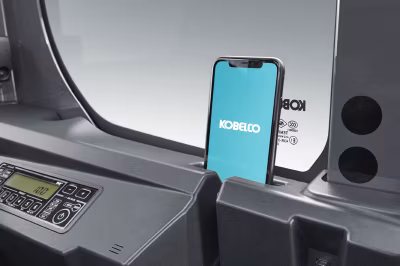

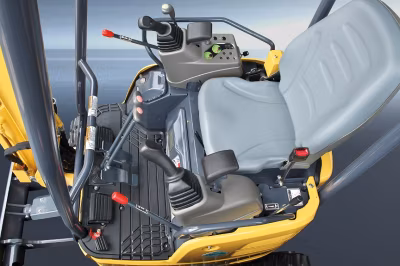

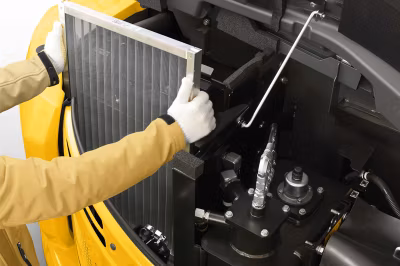

The KOBELCO SK35SR-7 Mini Excavator brings superior performance and ultimate comfort to a versatile machine that powers through any small-space project. It has an increased digging force and up to 24% fuel consumption reduction in ECO mode, empowering operators to get more done, more efficiently. The SK35SR-7 is a smaller machine with big excavator features, not only because of its performance, but also because of its premier comfort. The KOBELCO Integrated Noise & Dust Reduction (iNDr) cooling system reduces engine noise and maintenance. The cab is filled with premium features like a suspension seat, wrist rests, smartphone connectivity, and LED illuminated controls so you can do it all without breaking a sweat.
Specifications
Manufacturer
Kobelco
Model
SK35SR-7 Canopy
Year
2026
Category
Excavators
Subcategory
Mini Excavators
Number of Main Pumps
2
Dozer Blade Blade Height
13.6" (345 mm)
Dozer Blade Blade Width
5' 7" (1,700 mm)
Dozer Blade Max Raise Height
18.5" (470 mm)
Dozer Blade Dig Depth
15.4" (390 mm)
Bucket Digging Force
7,240 lbf (32.2 kN)
Drawbar Pulling Force
8,520 lbf (37.9 kN)
Arm Crowding Force
4,380 lbf (19.5 kN)
Travel Speed
2.7 mph (4.4 kph) / 1.6 mph (2.5 kph)
Overall Height (to top of boom)
8' 3" (2,510 mm)
Overall Width
5' 7" (1,700 mm)
Overall Height (to top of cab)
8' 3" (2,510 mm)
Ground Clearance
9.4" (240 mm)
Tail Swing Radius
2' 9" (850 mm)
Distance From Center of Swing To Rear End
2' 9" (850 mm)
Tumbler Distance
5' 7" (1,700 mm)
Track Gauge
4' 7" (1,400 mm)
Shoe Width
11.8 (300 mm)
Overall Width of Upperstructure
5' (1,530 mm)
Max Digging Reach
18' 6" (5,640 mm)
Max Digging Reach At Ground Level
18' (5,490 mm)
Max Digging Depth
10' 9" (3,270 mm)
Max Digging Height
17' 2" (5,240 mm)
Max Dumping Clearance
12' 8" (3,850 mm)
Max Vertical Wall Digging Depth
9' 1" (2,760 mm)
Min Swing Radius
7' 3" (2,220 mm)
Digging Depth For 8 Feet Flat Bottom
9' 7" (2,930 mm)

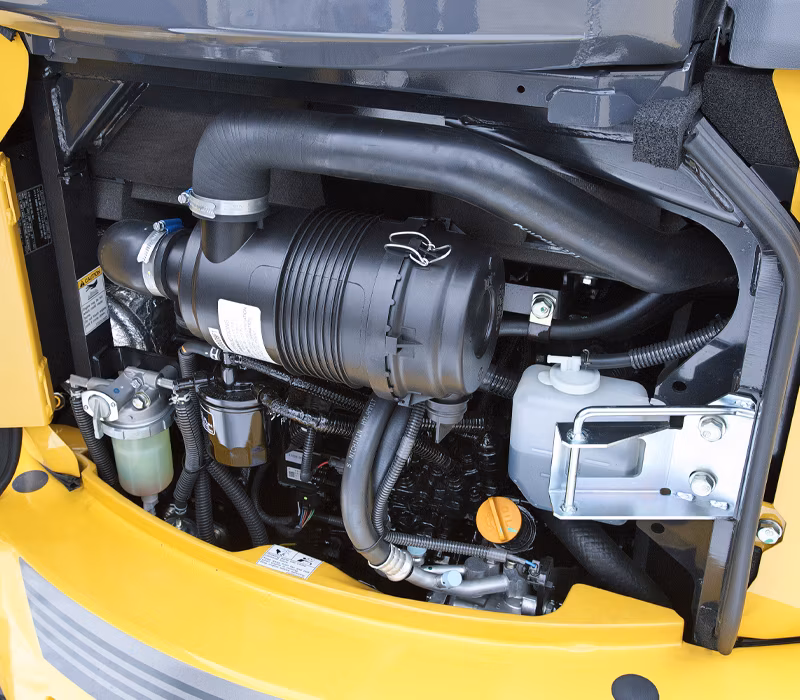

Model
Yanmar 3TNV88F-EPYBD
Displacement
100.2 in<sup>3</sup> (1.642 ltr)
Fuel Tank
11.1 gallons (US) (42 ltr)
Power Output
24.4 hp (18.2 kW) 23.1 hp (17.2 kW)
Max Torque
64.8 lbf (87.8 Nm)
