Description
Great things come in small packages. Nothing proves that like the SK17SR-6E. Designed for use in tight spaces, its exceptional maneuverability is combined with a long digging reach and plenty of power so you can get through tough residential, landscaping and light industrial jobs. Durable construction and easy maintenance ensure a long, productive working life.
Specifications
Manufacturer
Kobelco
Model

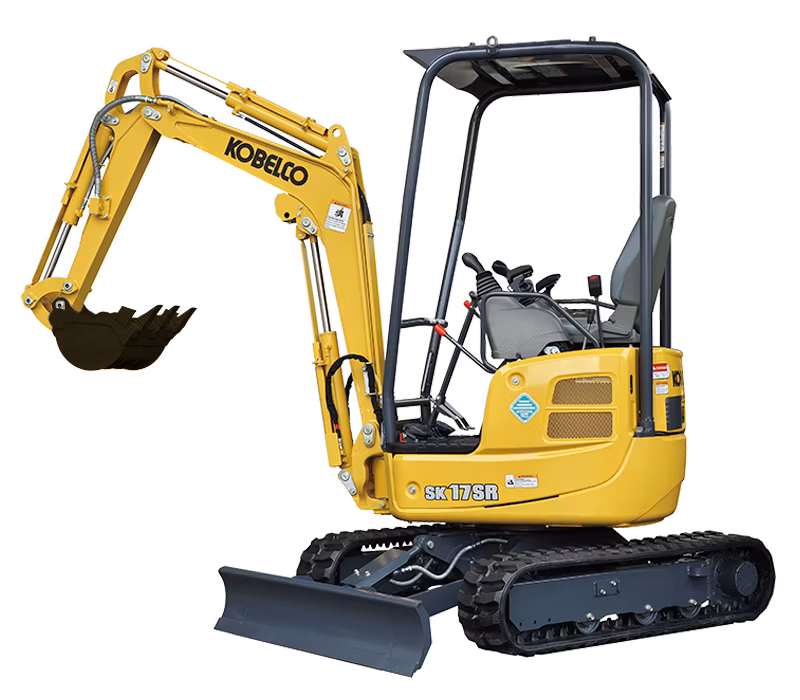

SK17SR-6E
Year
2026
Category
Excavators
Subcategory
Mini Excavators
Number of Main Pumps
2
Dozer Blade
Blade Height: 10" (250 mm), Max Raise Height: 10" (265 mm)
Travel Speed
2.6 mph (4.2 kph) / 1.3 mph (2.1 kph)
Drawbar Pulling Force
4,114 lbf (18.3 kN)
Operating Weight
3,549.4 lbs (1,610 kg)
Fuel Tank
5.2 gallons (US) (20 ltr)
Bucket Digging Force
3,417 lbf (15.2 kN)
Arm Crowding Force
1,911 lbf (8.5 kN)
Overall Height (to top of boom)
7' 7" (2,320 mm)
Overall Width
4' 2" (1,280 mm)
Overall Height (to top of cab)
7' 7" (2,320 mm)
Ground Clearance
6.5" (165 mm)
Tail Swing Radius
2' 1" (640 mm)
Distance From Center of Swing To Rear End
2' 1" (640 mm)
Shoe Width
9 (230 mm)
Max Digging Reach At Ground Level
12' 3" (3,730 mm)
Max Digging Depth
7' 3" (2,210 mm)
Max Digging Height
12' 1" (3,690 mm)
Max Dumping Clearance
8' 7" (2,620 mm)
Max Vertical Wall Digging Depth
5' 11" (1,800 mm)
Min Swing Radius
5' (1,540 mm)
Model
Yanmar 3 TNV 74F-SPBV
Power Output
15 hp (11.2 kW), 14.5 hp (10.8 kW)
Max Torque
36.3 lbf (49.2 Nm)
Displacement
61 in³ (1 ltr)
Engine Power
14.5 hp (10.8 kW)
