Description

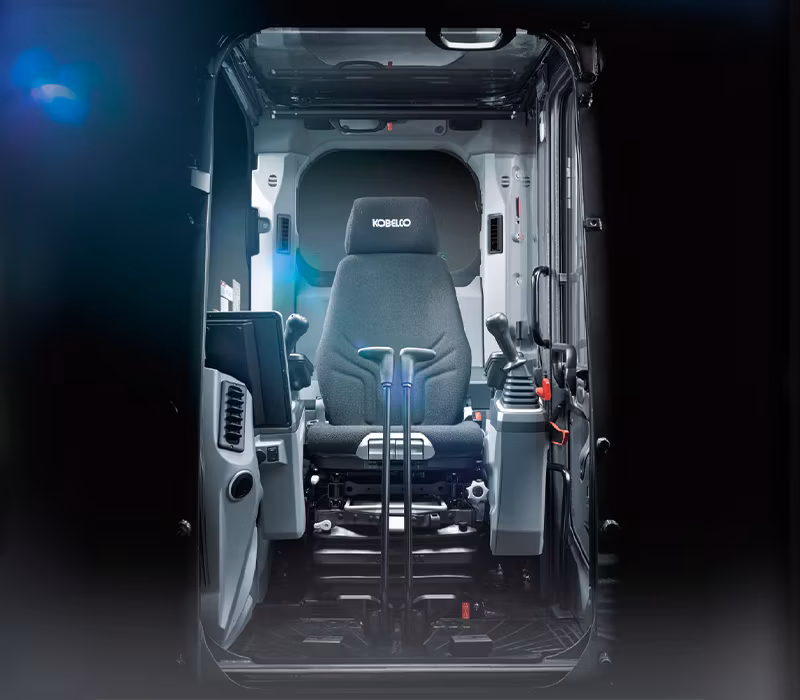

The KOBELCO SK520LC-11 Conventional Excavator is a powerful machine designed for exceptional performance on even the most challenging jobsites. Equipped with a Tier IV Final Compliant engine, it delivers over 450 horsepower, ensuring efficient yet productive operation. Operators will appreciate premier comforts including a heated air ride suspension seat, multi-vent air conditioning, ergonomic lever angles and adjustable height joysticks.Safety and convenience are prioritized with features such as a three-side camera safety system, all-around LED lighting, swing flashers, and an optional front cab guard. Additionally, the excavator offers complete compatibility with the KOMEXS telematics system, providing real-time monitoring and maintenance insights. Whether tackling construction projects or excavation tasks, the KOBELCO SK520LC-11 is the ultimate partner on the jobsite.
Specifications
Manufacturer
Kobelco
Model
SK520LC-11
Year
2026
Category
Excavators
Subcategory
Conventional Excavators
Number of Main Pumps
2
Bucket Digging Force
72,200 lbf (321 kN)
Drawbar Pulling Force
92,200 lbf (410 kN)
Arm Crowding Force
54,400 lbf (242 kN)
Travel Speed
3.4 mph (5.4 kph) / 2 mph (3.2 kph)
Ground Clearance of Rear End
4' 2" (1,260 mm)
Ground Clearance
20.1" (510 mm)
Distance From Center of Swing To Rear End
12' 5" (3,790 mm)
Tumbler Distance
14' 5" (4,400 mm)
Overall Height (to top of boom)
14' 5" (4,400 mm)
Overall Width
13' 5" (4,090 mm)
Tail Swing Radius
12' 9" (3,880 mm)
Track Gauge
9' (2,750 mm)
Shoe Width
35.4 (900 mm)
Overall Width of Upperstructure
13' 5" (4,090 mm)
Model
Isuzu 6WG1
Displacement
956.9 in<sup>3</sup> (15.681 ltr)
Fuel Tank
190 gallons (US) (720 ltr)
Power Output
463 hp (345 kW)
Max Torque
1460 lbf (1980 Nm)
