Description

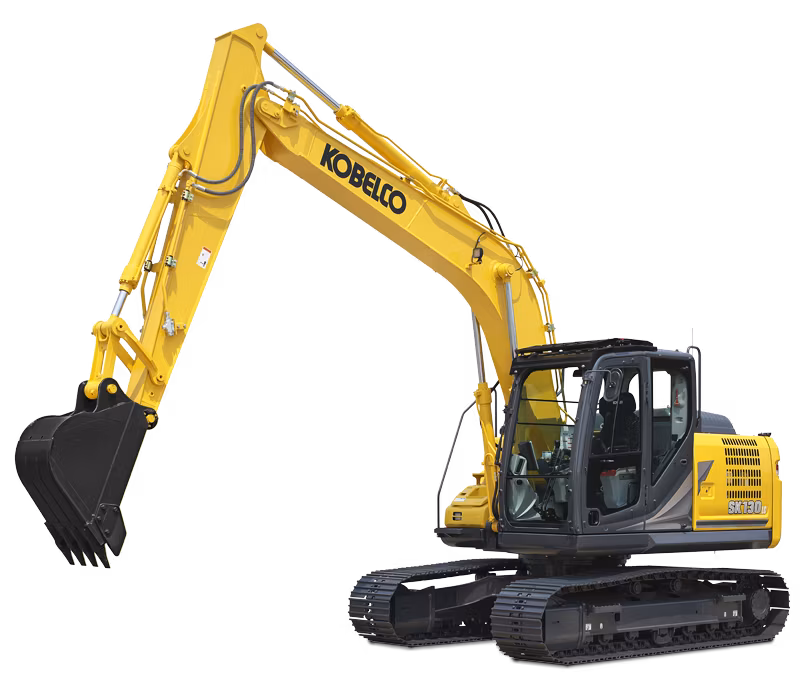

The next-generation KOBELCO SK130LC-11 boasts 96 hp and a whopping 24,800 lbf of digging force. It's nimble enough – and quiet enough – to work in spaces most conventional machines can't.This revolutionary machine features NEXT-3E technology that lets you dial in the perfect balance of performance and fuel economy, turning fast cycle times into profit. Enhanced multi-function capabilities include an attachment selection system with adjustable flow-rate presets for the bucket, breaker, nibbler and thumb, allowing the operator to change between tools quickly and easily. Plus, premier operator comforts mean it’s a pleasure to operate.
Specifications
Manufacturer
Kobelco
Model
SK130LC-11
Year
2025
Category
Excavators
Subcategory
Conventional Excavators
Pump
2 Variable axial piston + Gear
Dozer Blade
Blade Height: 22" (570 mm),Blade Width: 8' 6" (2,590 mm),Max Raise Height: 20" (500 mm),Dig Depth: 23" (590 mm)
Travel Speed
3.5 mph (5.6 kph) / 2.1 mph (3.4 kph)
Drawbar Pulling Force
31,700 lbf (141 kN)
Operating Weight
32,800 lbs (14,900 kg)
Fuel Tank
74 gallons (US) (280 ltr)
Bucket Digging Force
24,818.9 lbf (110.4 kN)
Arm Crowding Force
13,000 lbf (58 kN)
Overall Length
24' 8" (7,530 mm)
Overall Height (to top of boom)
10' 3" (3,130 mm)
Overall Width
8' 6" (2,590 mm)
Ground Clearance of Rear End
2' 11" (910 mm)
Ground Clearance
16.3" (415 mm)
Tail Swing Radius
7' 2" (2,190 mm)
Distance From Center of Swing To Rear End
7' 1" (2,170 mm)
Tumbler Distance
10' (3,040 mm)
Track Gauge
6' 6" (1,990 mm)
Shoe Width
23.6 (600 mm)
Overall Width of Upperstructure
8' 6" (2,590 mm)
Max Digging Reach
28' 10" (8,780 mm)
Max Digging Reach At Ground Level
28' 3" (8,620 mm)
Max Digging Depth
19' 7" (5,980 mm)
Max Digging Height
28' 9" (8,750 mm)
Max Dumping Clearance
20' 11" (6,380 mm)
Max Vertical Wall Digging Depth
16' 1" (4,910 mm)
Min Swing Radius
9' 4" (2,840 mm)
Digging Depth For 8 Feet Flat Bottom
18' 11" (5,770 mm)
Model
Isuzu 4 JJ 1 XDRAC-01
Power Output
105 hp (78.5 kW),96 hp (71.3 kW)
Max Torque
277 lbf (357 Nm)
Displacement
183 in³ (2.999 ltr)
Engine Power
96 hp (71.3 kW)
