Description

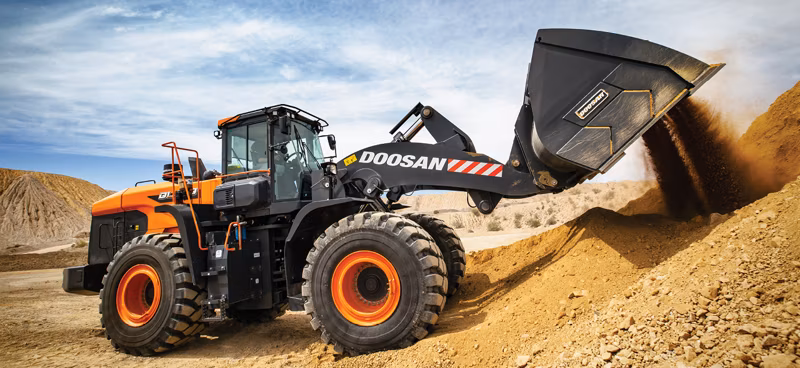

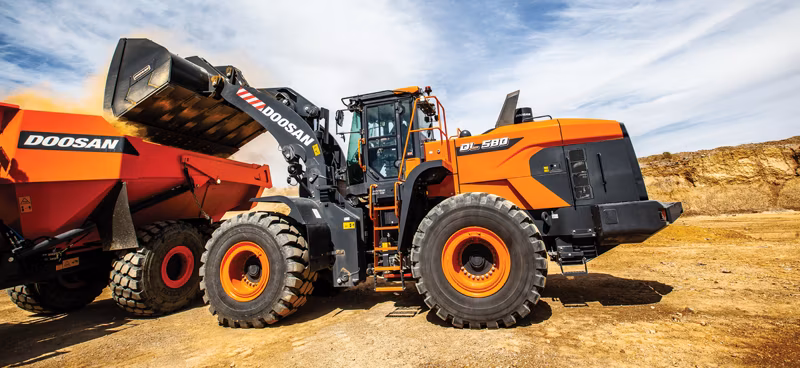

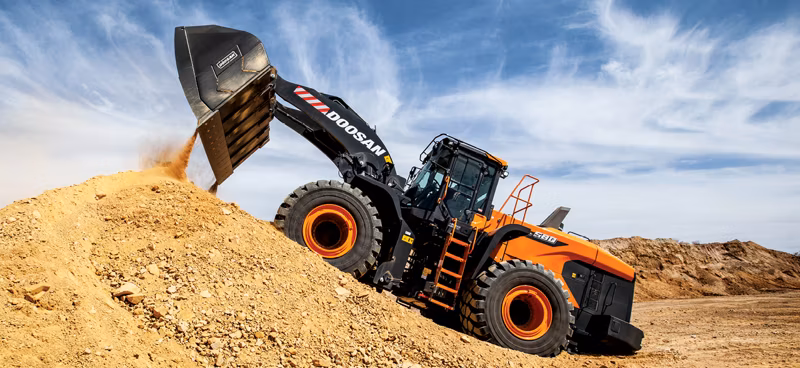

Doosan - DL580-7
Specifications
Manufacturer
Develon
Model
DL580-7
Year
2026
Category
Loaders
Subcategory
Wheel Loader
Rated Flywheel Power (Gross)
394 hp @ 1,800 rpm (SAE-J1995)
Rated Horse Power (Net)
394 hp @ 1,800 rpm
Max Torque (Net)
1591 lbf ft @ 1,200 rpm
Main Pump: Displacement
6.83 in³/rev
Boom Speed - Up (Loaded)
6.4 S (±0.5 S)
Boom Speed - Down
3.8 S (±0.4 S)
Bucket Speed - Dump
1.5 S (±0.2 S)
Main Pump: Max Flow Rate (Each)
62 gal/min
Main Pump: Main Relief Pressure
3,626 psi
Travel Performance: Gradeability
30° @ 58 %
Traveling Performance: Max Tractive Effort
72,312 lb
Operating Weight
74,494 lb
Bucket Capacity
8.4 yd³
Static Tipping Load (Straight)
60,550 lb
Static Tipping Load (Full Turn)
53,462 lb
Breakout Force
64,071 lbf
Rear Axle Oscillation
20°
Travel Speed Forward - 1St Gear
3.91 mph
Fuel Tank
116.5 gal
Cooling System
14.27 gal
Bucket Width
11' 2"
Hinge Pin Height
15' 8"
Dump Reach At 45° (Fully Raised)
5' 4"
Dump Height At 45° (Fully Raised)
10' 5"
Overall Height
12' 7"
Overall Length
32' 11"
Wheel Base
12' 1"
Ground Clearance
1' 7"
External Turning Radius At Bucket Edge
25' 0"
Hydraulic System
63.93 gal
Hydraulic Tank
63.93 gal
