Description

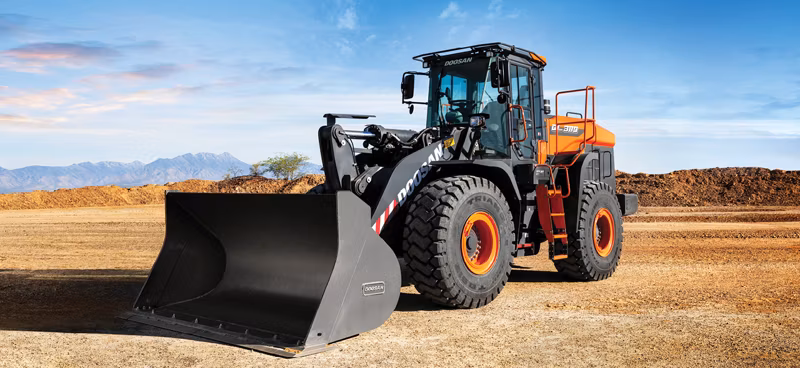

Develon DL380-7
Specifications
Manufacturer
Develon
Model
DL380-7
Year
2026
Category
Loaders
Subcategory
Wheel Loader
Model
DL08
Rated Flywheel Power (Gross)
271 hp @ 1800 rpm
Rated Horse Power (Net)
271 hp @ 1800 rpm
Max. Torque (Net)
940 lbf ft @ 1300 rpm
Engine Emissions Tier (Epa)
Tier 4
Engine After Treatment
SCR + DOC
Engine Make
Doosan
Engine Number Of Cylinders
6
Engine Displacement
466 in³
Tire Size
23.5 R25
Travel Performance: Gradeability
27 ° @ 51 %
Traveling Performance: Max Tractive Effort
43872 lb
Operating Weight
44919 lb
Bucket Capacity
4.84 yd³
Static Tipping Load (Straight)
36198 lb
Static Tipping Load (Full Turn)
31963 lb
Breakout Force
36194 lbf
Speeds Fwd
4
Speeds Rev
3
Travel Speed Forward - 1St Gear
3.91 mph
Travel Speed Forward - 4Th Gear
22.37 mph
Final Drive
Planetary
Differential Type
Limited Slip
Fuel Tank
76.87 gal
Cooling System
11.89 gal
Def / Ad Blue Tank
16.38 gal
Tread Width
7' 0"
Bucket Width
9' 10"
Hinge Pin Height
13' 8"
Dump Reach At 45° (Fully Raised)
4' 0"
Dump Height At 45° (Fully Raised)
9' 11"
Overall Height
11' 6"
Overall Length
27' 10"
Wheel Base
10' 9"
Ground Clearance
1' 3"
External Turning Radius At Bucket Edge
21' 7"
Rear Axle Oscillation
24 °
Digging Depth
3.0"
Main Pump: Displacement
4.52 in³/rev
System Pressure: Work
3844 psi
Main Pump: Max. Flow Rate (Each)
41 gal/min
Main Pump: Quantity
1
Main Pump: Main Relief Pressure
3844 psi
Hydraulic System
47.55 gal
Hydraulic Tank
30.91 gal
