Description
Develon DL250TC-7
Specifications
Manufacturer
Develon
Model
DL250TC-7
Year
2026
Category
Loaders
Subcategory
Wheel Loader
Model
DL06P
Rated Flywheel Power (Gross)
171.7 hp @ 2100 rpm
Rated Horse Power (Net)
171.7 hp @ 2100 rpm
Max. Torque (Net)
593 lbf ft @ 1400 rpm
Engine Emissions Tier (EPA)
Tier 4
Engine After Treatment
DOC+SCR with DEF
Engine Make
Doosan
Engine Number of Cylinders
6
Engine Displacement
360 in³
Main Pump: Displacement
5.37 in³/rev
System Pressure: Work
3843 psi
Main Pump: Max Flow Rate (each)
48.8 gal/min
Main Pump: Quantity
1
Main Pump: Main Relief Pressure
3843 psi
Total Cycle Time
10.8 s (±0.3 s)
Tire Size
20.5-R25 (L3)
Travel performance: Gradeability
30 ° @ 58 %
Traveling performance: Max Tractive Effort
26455 lb
Operating Weight
31605 lb
Speeds Fwd
4
Speeds Rev
3
Travel Speed Forward - 1st gear
4.1 mph
Travel Speed Forward - 4th gear
23.5 mph
Final Drive
Planetary-Outboard
Differential Type
Limited Slip
Fuel Tank
62.08 gal
Cooling System
8.29 gal
Hydraulic System
39.63 gal
Hydraulic Tank
31.7 gal
DEF / Ad blue Tank
8.32 gal
Static Tipping Load (Straight)
20470 lb
Static Tipping Load (Full Turn)
18078 lb
Breakout Force
22930 lbf
Rear Axle Oscillation
22 °
Bucket Capacity
3.10 yd³
Bucket Width
8' 11"
Hinge Pin Height
12' 10"
Dump reach at 45° (fully raised)
4' 3"
Dump height at 45° (fully raised)
9' 0"
Overall Height
10' 9"
Overall Length
25' 7"
Wheel Base
9' 10"
Ground Clearance
1' 5"
External Turning Radius at Bucket Edge
20' 2"
Tread Width
6' 8"
Digging Depth
3.0"
Quick Enquiry
18030 Wicker Ave, Lowell IL 46356
⬅ Scan the QR code for more information
Loaders Develon Items for Sale Lowell
Find this Develon DL250TC-7 at RONSON EQUIPMENT COMPANY, LLC
18030 Wicker Ave, Lowell IL 46356
Hours of Operation*
Today7:00am - 5:00pm
Wednesday7:00am - 5:00pm
Thursday7:00am - 5:00pm
Friday7:00am - 5:00pm
Saturday8:00am - 12:00pm
SundayClosed
Monday7:00am - 5:00pm
*Local time zone: UTC -04:00
Similar Listings

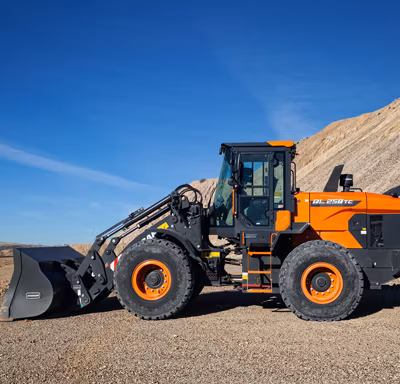

2025 Develon DL250TC-7
