Description

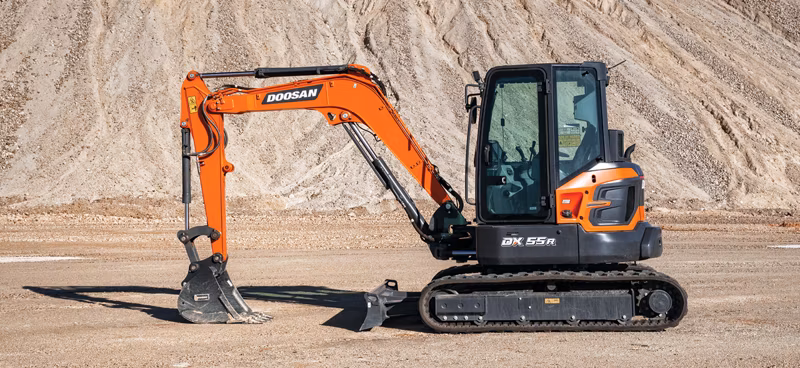

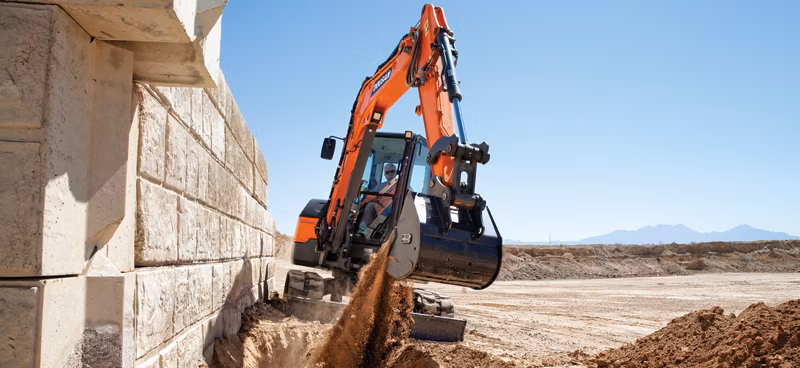

Develon DX55R-7
Specifications
Manufacturer
Develon
Model
DX55R-7
Year
2026
Category
Excavators
Subcategory
Mini Excavators
Model
Doosan D18
Rated Flywheel Power (Gross)
48.8 hp @ 2200 rpm
Rated Horse Power (Net)
48.8 hp @ 2200 rpm
Max. Torque (Net)
133 lbf ft @ 1600 rpm
Engine Emissions Tier (Epa)
Tier 4
Engine After Treatment
DOC Only
Engine Make
Doosan
Engine Name
D18 Turbo
Engine Number Of Cylinders
3
Engine Displacement
146 in³
Swing Performance: Max Swing Torque
9982 lbf ft
Swing Performance: Max Swing Speed (At Efficiency)
9.8 rpm
Engine Coolant
2.85 gal
Engine Oil
2.43 gal
Upper Rollers: Quantity Per Side
1
Lower Rollers: Quantity Per Side
4
Travel Performance: Traction Force (Highest Value)
10004 lbf
Travel Performance: Traveling Speed - Low (Xxx/)
1.62 mph
Travel Performance: Traveling Speed - High (/Xxx)
2.73 mph
Travel Performance: Gradeability
35 ° @ 70 %
Operating Weight
11963 lb
Standard Bucket Size
0.21 yd³
Max Digging Reach (Ground)
19' 6"
Max Digging Height
18' 7"
Max Digging Depth
11' 10"
Arm Digging Force - Pressure Up
627.22 lbf
Bucket Digging Force - Pressure Up
995.9 lbf
Fuel Tank
20.61 gal
Noise Level: Guaranteed Sound Power Level
97 dBA
Noise Level: Operator
78 dBA
Track Length
8' 2"
Track Link: Track Gauge
5' 2"
Ground Clearance
2' 1"
Standard Boom Length
8' 10"
Standard Arm Length
5' 3"
Shoe Width
1' 3"
Shipping Height- Hose (With Attachment)
8' 4"
Shipping Length (Without Attachment)
17' 10"
Shipping Width (Standard)
6' 5"
Overall Height Over Cab
8' 4"
Max Loading Height
12' 10"
Main Pump: Displacement
3.84 in³/rev
Main Pump: Max. Flow Rate (Each)
36.61 gal/min
Main Pump: Quantity
1
Main Pump: Main Relief Pressure
4206 psi
Ground Pressure
4.69 psi
Hydraulic Tank
12.68 gal
Hydraulic System
27.74 gal
