Description

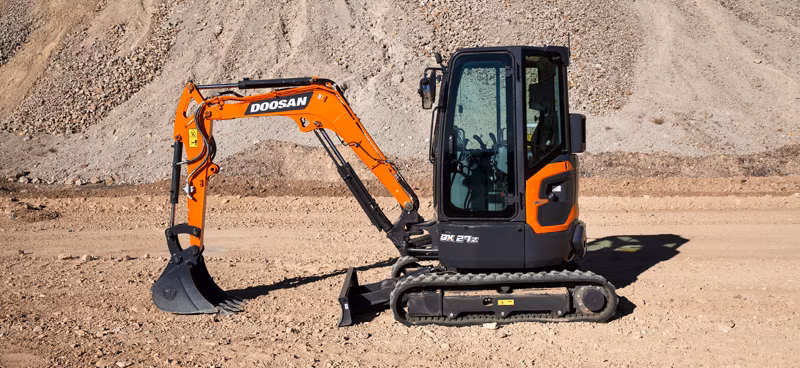

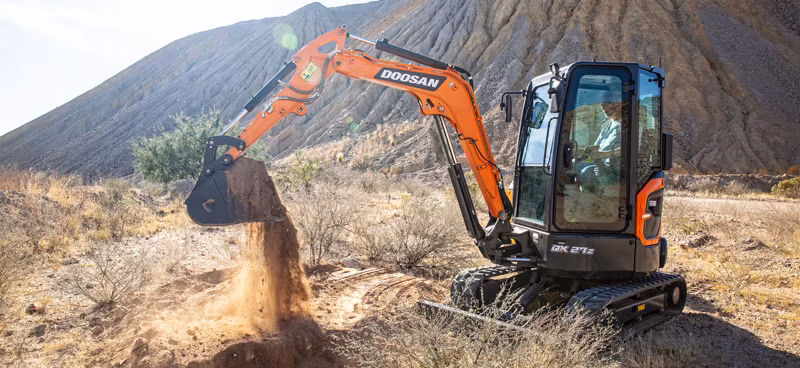

Develon DX27Z-7
Specifications
Manufacturer
Develon
Model
DX27Z-7
Year
2026
Category
Excavators
Subcategory
Mini Excavators
Model
Doosan DN1.7
Rated Flywheel Power (Gross)
24.7 hp @ 2200 rpm
Rated Horse Power (Net)
24.7 hp @ 2200 rpm
Max. Torque (Net)
72 lbf ft @ 1600 rpm
Engine Emissions Tier (Epa)
Tier 4
Engine After Treatment
Muffler Only
Engine Make
DN1.7
Engine Number Of Cylinders
3
Engine Displacement
101 in³
Swing Performance: Max Swing Torque
4025 lbf ft
Swing Performance: Max Swing Speed (At Efficiency)
9.3 rpm
Engine Coolant
1.27 gal
Engine Oil
1.53 gal
Upper Rollers: Quantity Per Side
1
Lower Rollers: Quantity Per Side
3
Travel Performance: Traction Force (Highest Value)
703652 lbf
Travel Performance: Traveling Speed - Low (Xxx/)
1.49 mph
Travel Performance: Traveling Speed - High (/Xxx)
2.61 mph
Travel Performance: Gradeability
35 ° @ 70 %
Operating Weight
6173 lb
Standard Bucket Size
0.1 yd³
Max Digging Reach (Ground)
14' 9"
Max Digging Height
14' 4"
Max Digging Depth
8' 8"
Arm Digging Force - Pressure Up
292.25 lbf
Bucket Digging Force - Pressure Up
499.08 lbf
Fuel Tank
12.42 gal
Noise Level: Guaranteed Sound Power Level
97 dBA
Noise Level: Operator
78 dBA
Track Length
6' 11"
Track Link: Track Gauge
4' 1"
Ground Clearance
8.5"
Standard Boom Length
8' 3"
Standard Arm Length
3' 7"
Shoe Width
11.8"
Shipping Length (Without Attachment)
13' 9"
Shipping Width (Standard)
5' 1"
Overall Height Over Cab
8' 0"
Main Pump: Displacement
2.05 in³/rev
Main Pump: Max. Flow Rate (Each)
7.61 gal/min
Main Pump: Quantity
2
Main Pump: Main Relief Pressure
3408 psi
Ground Pressure
3.98 psi
Hydraulic Tank
12.94 gal
