Description

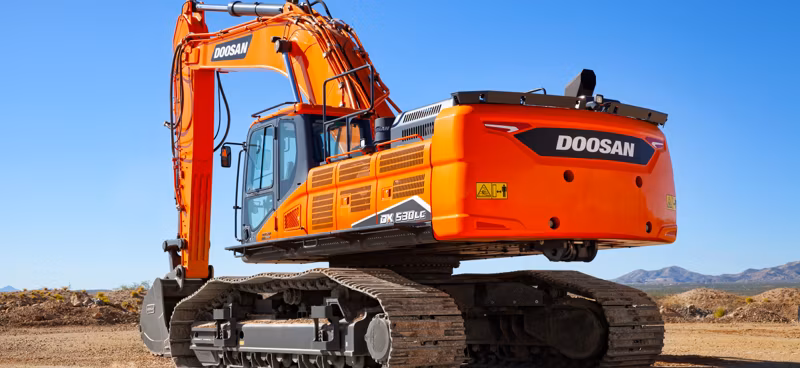

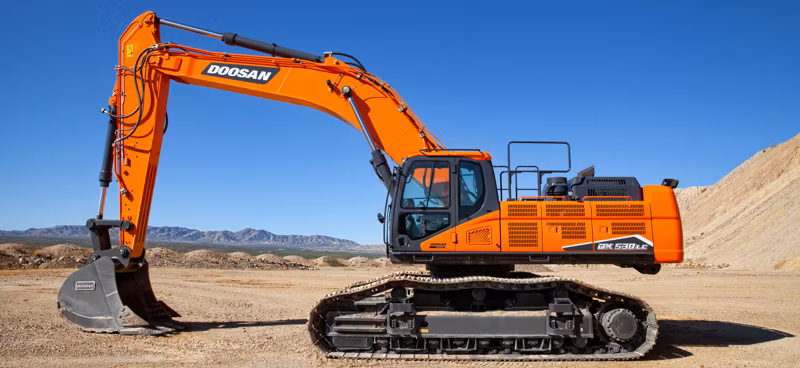

Develon DX530LC-7
Specifications
Manufacturer
Develon
Model
DX530LC-7
Year
2026
Category
Excavators
Subcategory
Crawler Excavators
Model
DC13
Rated Flywheel Power (Gross)
394.3 hp @ 1800 rpm (SAE-J1995)
Rated Horse Power (Net)
387.6 hp @ 1800 rpm
Max. Torque (Net)
1374 lbf ft @ 900 rpm
Engine Emissions Tier (Epa)
Tier 4
Engine After Treatment
CEGR+DOC+SCR with DEF
Engine Make
Scania
Engine Name
Scania DC13
Engine Displacement
775 in³
Swing Performance: Max Swing Torque
145601 lbf ft
Swing Performance: Max Swing Speed (At Efficiency)
9 rpm
Engine Coolant
13.95 gal
Engine Oil
11.89 gal
Upper Rollers: Quantity Per Side
3
Lower Rollers: Quantity Per Side
9
Travel Performance: Traction Force (Highest Value)
100714 lbf
Travel Performance: Traveling Speed - Low (Xxx/)
1.99 mph
Travel Performance: Traveling Speed - High (/Xxx)
3.48 mph
Travel Performance: Gradeability
35 ° @ 70 %
Operating Weight
115081 lb
Standard Bucket Size
3.81 yd³
Max Digging Reach (Ground)
37' 6"
Max Digging Height
35' 9"
Max Digging Depth
24' 0"
Arm Digging Force - Pressure Up
55303 lbf
Bucket Digging Force - Pressure Up
60698 lbf
Arm Digging Force - Normal
51931 lbf
Fuel Tank
165.37 gal
Noise Level: Guaranteed Sound Power Level
106 dBA
Noise Level: Operator
72 dBA
Track Length
17' 10"
Track Link: Track Gauge
9' 10"
Ground Clearance
2' 4"
Standard Boom Length
23' 3"
Standard Arm Length
9' 6"
Shoe Width
2' 11"
Shipping Height - Hose (With Attachment)
12' 1"
Shipping Length (Without Attachment)
40' 1"
Shipping Width (Standard)
11' 11"
Overall Height Over Cab
10' 11"
Max Loading Height
25' 4"
Main Pump: Displacement
13.73 in³/rev
Main Pump: Max. Flow Rate (Each)
103.03 gal/min
Main Pump: Quantity
2
Main Pump: Main Relief Pressure
4975 psi
Ground Pressure
8.53 psi
Hydraulic System
103.03 gal
Hydraulic Tank
70.01 gal
