Description

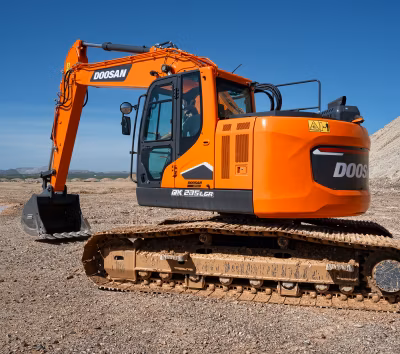

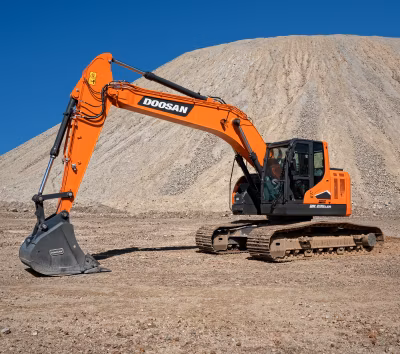

Develon DX235LCR-7
Specifications
Manufacturer
Develon
Model
DX235LCR-7
Year
2026
Category
Excavators
Subcategory
Crawler Excavators
Model
Doosan DL06V
Rated Flywheel Power (Gross)
189.1 hp @ 1900 rpm
Rated Horse Power (Net)
170.3 hp @ 1900 rpm
Max. Torque (Net)
593 lbf ft @ 1400 rpm
Engine Emissions Tier (Epa)
Tier 4
Engine After Treatment
CEGR+DOC+SCR with DEF
Engine Make
Doosan
Engine Name
Doosan DL06V
Engine Number Of Cylinders
6
Engine Displacement
359 in³
Swing Performance: Max Swing Torque
69625 lbf ft
Swing Performance: Max Swing Speed (At Efficiency)
11.5 rpm
Engine Coolant
8.48 gal
Engine Oil
7.13 gal
Upper Rollers: Quantity Per Side
2
Lower Rollers: Quantity Per Side
9
Travel Performance: Traction Force (Highest Value)
64295 lbf @ 100
Travel Performance: Traveling Speed - Low (Xxx/)
1.99 mph
Travel Performance: Traveling Speed - High (/Xxx)
3.6 mph
Travel Performance: Gradeability
35 ° @ 70 %
Operating Weight
58930 lb
Standard Bucket Size
1.2 yd³
Max Digging Reach (Ground)
31' 7"
Max Digging Height
35' 5"
Max Digging Depth
21' 10"
Arm Digging Force - Pressure Up
24729 lbf
Bucket Digging Force - Pressure Up
36419 lbf
Arm Digging Force - Normal
23380 lbf
Fuel Tank
81.1 gal
Noise Level: Guaranteed Sound Power Level
103 dBA
Noise Level: Operator
72 dBA
Lifting Capacity Over Front @ Horizontal Distance - 10 Ft Above Ground
11400 lb @ 20 ft
Lifting Capacity Over Front @ Horizontal Distance - Ground Level
7720 lb @ 20 ft
Lifting Capacity Over Front @ Horizontal Distance - 10 Ft Below Ground
7450 lb @ 15 ft
Lifting Capacity Over Front @ Horizontal Distance - 3M Above Ground
5421 lb @ 19.68 ft
Lifting Capacity Over Front @ Horizontal Distance - 3M Below Ground
7465 lb @ 14.76 ft
Track Length
14' 7"
Track Link: Track Gauge
7' 10"
Ground Clearance
1' 5"
Standard Boom Length
18' 8"
Standard Arm Length
9' 6"
Shoe Width
2' 7"
Shipping Height - Hose (With Attachment)
9' 9"
Shipping Length (Without Attachment)
29' 5"
Shipping Width (Standard)
10' 5"
Overall Height Over Cab
10' 2"
Max Loading Height
10' 3"
Main Pump: Displacement
115.9 in³/rev
Main Pump: Max. Flow Rate (Each)
58.65 gal/min
Main Pump: Quantity
2
Ground Pressure
7.68 psi
Hydraulic System
50.19 gal
Hydraulic Tank
34.34 gal
