Description

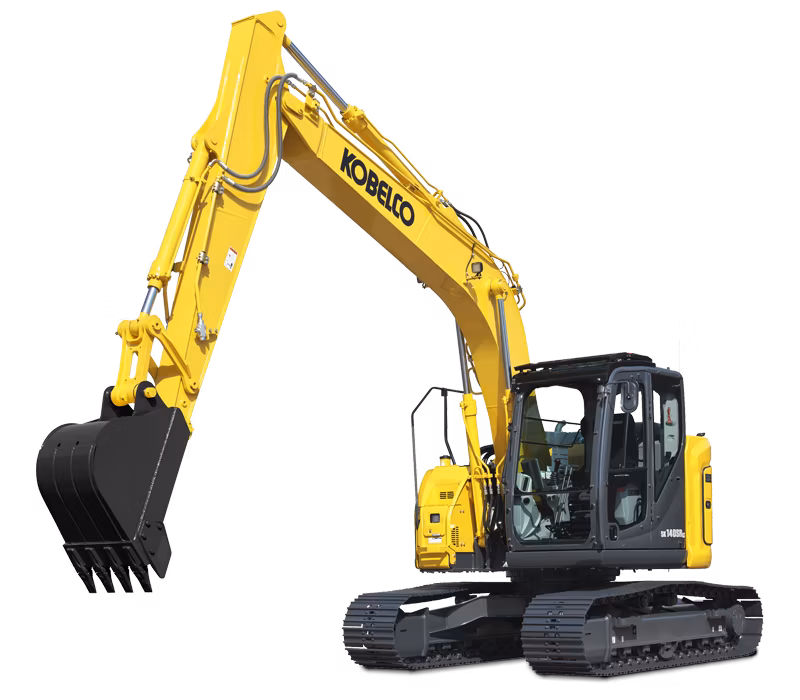

The KOBELCO SK140SRLC-7 Offset Boom is packed with impressive power for a mid-sized machine. Its compact design, short rear swing agility and long digging reach capabilities provide a broad working range and easy maneuverability.KOBELCO's exclusive iNDr noise reduction system allows the SK140SRLC-7 Offset Boom to minimize dust and suppress noise. This machine supplies the perfect balance of fuel economy and jobsite productivity with a variety of operating modes. Plus, premier operator comforts mean it's easier to stay focused on the task at hand.This KOBELCO machine is a winner of the 2021 EquipmentWatch Lowest Cost of Ownership Award.
Specifications
Manufacturer
Kobelco
Model
SK140SRLC-7 Offset Boom
Year
2025
Category
Excavators
Subcategory
SR Series Excavators
Pump
2 Piston
Dozer Blade
Blade Height: 20" (515 mm), Blade Width: 8' 6" (2,590 mm), Max Raise Height: 23" (575 mm), Dig Depth: 23" (575 mm)
Travel Speed
3.5 mph (5.6 kph) / 2.1 mph (3.4 kph)
Drawbar Pulling Force
31,700 lbf (141 kN)
Operating Weight
33,700 lbs (15,300 kg)
Fuel Tank
49.1 gallons (US) (186 ltr)
Bucket Digging Force
20,900 lbf (92.9 kN)
Arm Crowding Force
12,900 lbf (57.3 kN)
Overall Height (to top of boom)
9' 5" (2,860 mm)
Overall Width
8' 6" (2,590 mm)
Ground Clearance of Rear End
2' 10" (870 mm)
Ground Clearance
16.3" (415 mm)
Tail Swing Radius
4' 11" (1,490 mm)
Distance From Center of Swing To Rear End
4' 11" (1,490 mm)
Tumbler Distance
10' (3,040 mm)
Track Gauge
6' 6" (1,990 mm)
Shoe Width
23.6 (600 mm)
Overall Width of Upperstructure
8' 2" (2,480 mm)
Max Digging Reach
25' 9" (7,860 mm)
Max Digging Reach At Ground Level
25' 3" (7,690 mm)
Max Digging Depth
17' 2" (5,220 mm)
Max Digging Height
27' 1" (8,250 mm)
Max Dumping Clearance
19' 6" (5,930 mm)
Max Vertical Wall Digging Depth
10' 7" (3,230 mm)
Min Swing Radius
6' 2" (1,870 mm)
Digging Depth For 8 Feet Flat Bottom
16' (4,870 mm)
Model
Isuzu 4JJ1XDRAC-01
Power Output
115 hp (86 kW), 105 hp (78.6 kW)
Max Torque
277 lbf (357 Nm)
Displacement
183 in³ (2.999 ltr)
Engine Power
105.4 hp (78.6 kW)
