Description

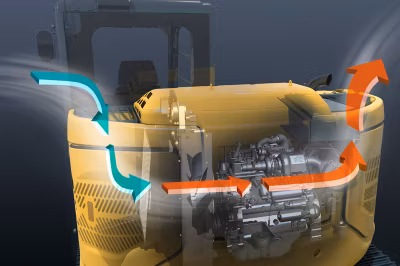

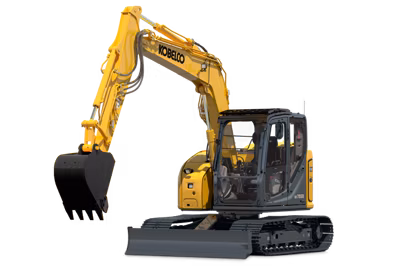

At Kobelco, we invented short rear swing excavators, so it only makes sense we'd stay ahead of the competition with the SK75SR-7. This model has the power, fuel economy and features you need to tackle jobs in tight spaces. In all Kobelco SR Series machines, you'll find the exclusive iNDr Cooling System that reduces dust while delivering ultra-quiet operation, as well as multiple mode settings that allow you to dial in the perfect balance of performance and fuel economy. Plus, premier operator comforts mean it's easier to stay focused on the task at hand.
Specifications
Manufacturer
Kobelco
Model
SK75SR-7
Year
2025
Category
Excavators
Subcategory
SR Series Excavators
Pump
2 Variable axial piston + Gear
Dozer Blade
Blade Height: 18" (460 mm), Blade Width: 8' (2,450 mm), Max Raise Height: 14" (360 mm), Dig Depth: 10" (250 mm)
Travel Speed
3.1 mph (5 kph) / 1.7 mph (2.7 kph)
Drawbar Pulling Force
17,300 lbf (77 kN)
Operating Weight
18,700 lbs (8,490 kg)
Fuel Tank
31.7 gallons (US) (120 ltr)
Bucket Digging Force
15,900 lbf (70.9 kN)
Arm Crowding Force
7,900 lbf (35.2 kN)
Operating Weight (one)
18,700 lbs (8,4900 kg)
Seatbelt
Retractable 3-inch

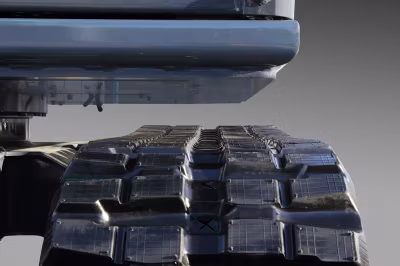

Steel track shoes
23.6” (600 mm)
Tail Swing Radius
4' 6" (1,380 mm)
Ground Clearance of Rear End
2' 4" (720 mm)
Ground Clearance
14" (355 mm)
Digging Depth For 8 Feet Flat Bottom
14' 2" (4,310 mm)
Max Digging Reach
22' 7" (6,880 mm)
Max Digging Reach At Ground Level
22' 2" (6,760 mm)
Max Digging Depth
15' (4,580 mm)
Max Digging Height
25' 5" (7,750 mm)
Max Dumping Clearance
18' 7" (5,670 mm)
Max Vertical Wall Digging Depth
13' 7" (4,140 mm)
Min Swing Radius
7' (2,130 mm)
Overall Length
20' 10" (6,360 mm)
Overall Height (to top of boom)
8' 5" (2,570 mm)
Overall Width
8' (2,450 mm)
Ground Clearance of Rear End
2' 4" (720 mm)
Ground Clearance
14" (355 mm)
Tail Swing Radius
4' 6" (1,380 mm)
Distance From Center of Swing To Rear End
4' 6" (1,380 mm)
Tumbler Distance
7' 3" (2,210 mm)
Track Gauge
6' 1" (1,850 mm)
Shoe Width
1' 11" (600 mm)
Overall Width of Upperstructure
7' 7" (2,300 mm)
Max Digging Reach
22' 7" (6,880 mm)
Max Digging Reach At Ground Level
22' 2" (6,760 mm)
Max Digging Depth
15' (4,580 mm)
Max Digging Height
25' 5" (7,750 mm)
Max Dumping Clearance
18' 7" (5,670 mm)
Max Vertical Wall Digging Depth
13' 7" (4,140 mm)
Min Swing Radius
7' (2,130 mm)
Digging Depth For 8 Feet Flat Bottom
14' 2" (4,310 mm)
Batteries
(2 x12 V - 72 Ah/781 A [CCA])
Alternator
50 amp
Converter
12 V
Model
Yanmar 4 TNV 98 CT
Power Output
72 hp (53.7 kW) / 70 hp (52.3 kW)
Max Torque
216 lbf (293 Nm)
Displacement
202.5 in³ (3.318 ltr)
Engine Power
70 hp (52.3 kW)
Starting motor
(24 V - 3.5 kW)
Fuel Tank
31.7 gallons (US) (120 ltr)
