Description

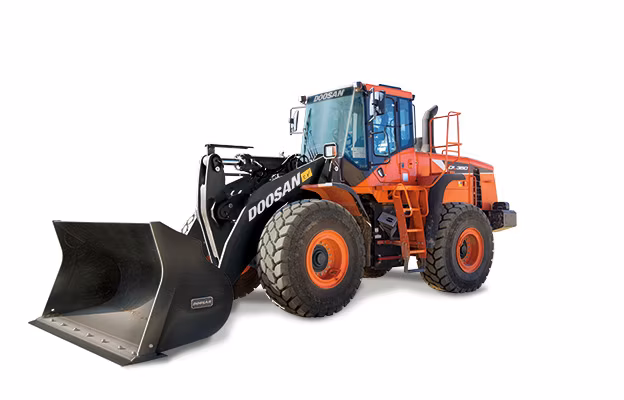

Develon - DL350-5
Specifications
Manufacturer
Develon
Model
DL350-5
Year
2025
Category
Loaders
Subcategory
Wheel Loaders
Rated Horse Power (Net)
275 hp @ 1,800 rpm
Max Torque (Net)
940 lbf ft @ 1,400 rpm
Rated Flywheel Power (Gross)
275 hp @ 1,800 rpm
Max. Torque (Net)
940 lbf ft @ 1,400 rpm
Travel performance: Gradeability
27° @ 51 %
Traveling performance: Max Tractive Effort
40,345 lb
Travel Speed Forward - 1st gear
3.85 mph
Cooling System
11.89 gal
Operating Weight
43,790 lb
Fuel Tank
67.63 gal
Traveling Performance: Max. Tractive Effort
40,345 lb
Travel Speed Forward - 1St Gear
3.85 mph
Bucket Capacity
4.84 yd³
Static Tipping Load (Straight)
35,360 lb
Static Tipping Load (Full Turn)
31,224 lb
Breakout Force
36,869 lbf
Hydraulic System
47.55 gal
Bucket Capacity
4.84 yd³
Dump height at 45° (fully raised)
9' 11"
Static Tipping Load (Full Turn)
31,224 lb
Bucket Width
9' 10"
External Turning Radius at Bucket Edge
21' 8"
Breakout Force
36,869 lbf
Rear Axle Oscillation
24°
Dump reach at 45° (fully raised)
4' 0"
Overall Length
27' 3"
Ground Clearance
1' 4"
Static Tipping Load (Straight)
35,360 lb
Hinge Pin Height
13' 8"
Overall Height
11' 4"
Wheel Base
10' 9"
Dump Reach At 45° (Fully Raised)
4' 0"
Dump Height At 45° (Fully Raised)
9' 11"
External Turning Radius At Bucket Edge
21' 8"
Boom Speed - Up (Loaded)
5.9 s (±0.5 s)
Boom Speed - Down
3.5 s (±0.4 s)
Bucket Speed - Dump
1.4 s (±0.3 s)
Total Cycle Time
10.4 s (±0.3 s)
Main Pump: Displacement
4.52 in³/rev
Main Pump: Max Flow Rate (each)
77.01 gal/min
Main Pump: Main Relief Pressure
3,626 psi
Main Pump: Max. Flow Rate (Each)
77.01 gal/min
