Description

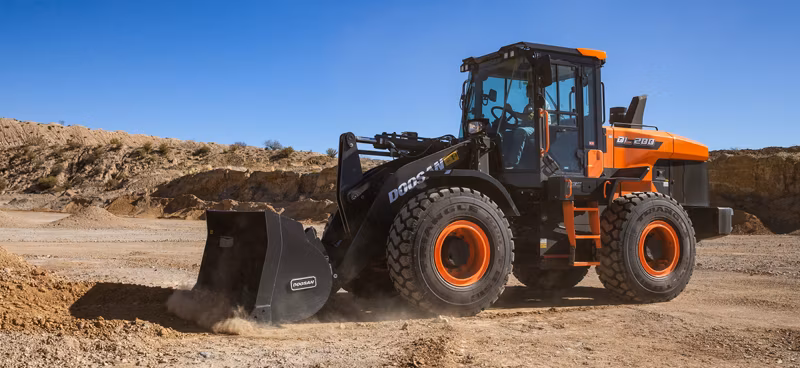

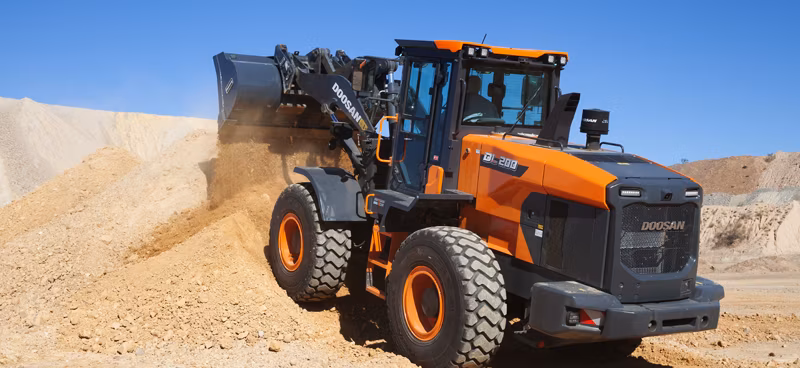

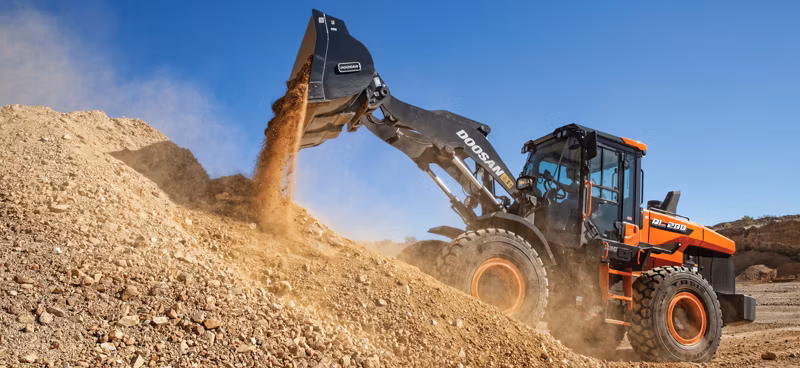

Develon DL200-7
Specifications
Manufacturer
Develon
Model
DL200-7
Year
2025
Category
Loaders
Subcategory
Wheel Loaders
Model
1204F
Rated Flywheel Power (Gross)
142.1 hp @ 2200 rpm (SAE-J1995)
Rated Horse Power (Net)
142.1 hp @ 2200 rpm
Max. Torque (Net)
413 lbf ft @ 1400 rpm
Engine Emissions Tier (Epa)
Tier 5
Engine After Treatment
CEGR+DOC+SCR with DEF
Engine Make
Perkins
Engine Number Of Cylinders
4
Engine Displacement
269 in³
Total Cycle Time
9.8 s (±0.3 s)
Tire Size
20.5R25, L3
Travel Performance: Gradeability
30 ° @ 58 %
Traveling Performance: Max. Tractive Effort
18298 lb
Operating Weight
26559 lb
Bucket Capacity
2.62 yd³
Static Tipping Load (Straight)
22315 lb
Static Tipping Load (Full Turn)
19705 lb
Breakout Force
21806 lbf
Speeds Fwd
4
Speeds Rev
3
Travel Speed Forward - 4Th Gear
23.61 mph
Final Drive
Planetary
Differential Type
Limited Slip
Fuel Tank
62.08 gal
Cooling System
8.61 gal
Def / Ad Blue Tank
5.02 gal
Tread Width
6' 3"
Bucket Width
8' 4"
Hinge Pin Height
12' 3"
Dump Reach At 45° (Fully Raised)
3' 3"
Dump Height At 45° (Fully Raised)
9' 0"
Overall Height
10' 10"
Overall Length
23' 6"
Wheel Base
9' 9"
Ground Clearance
1' 5"
External Turning Radius At Bucket Edge
19' 1"
Rear Axle Oscillation
22 °
Digging Depth
2.0"
Main Pump: Displacement
4.52 in³/rev
System Pressure: Work
3843 psi
Main Pump: Max. Flow Rate (Each)
40.95 gal/min
Main Pump: Quantity
1
Main Pump: Main Relief Pressure
3843 psi
Hydraulic System
31.7 gal
Hydraulic Tank
22.45 gal
