Description

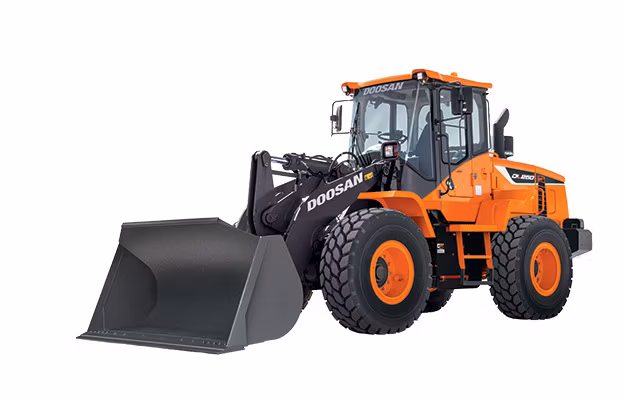

Develon - DL250-5
Specifications
Manufacturer
Develon
Model
DL250-5
Year
2025
Category
Loaders
Subcategory
Wheel Loaders
Rated Horse Power (Net)
171.7 hp @ 2,100 rpm
Max Torque (Net)
593 lbf ft @ 1,400 rpm
Rated Flywheel Power (Gross)
171.7 hp @ 2,100 rpm
Max. Torque (Net)
593 lbf ft @ 1,400 rpm
Travel performance: Gradeability
30° @ 58 %
Traveling performance: Max Tractive Effort
26,455 lb
Operating Weight
30,115 lb
Traveling Performance: Max. Tractive Effort
26,455 lb
Travel Speed Forward - 1St Gear
4.1 mph
Cooling System
8.29 gal
Bucket Capacity
3.27 yd³
Static Tipping Load (Straight)
23,997 lb
Static Tipping Load (Full Turn)
21,186 lb
Breakout Force
24,055 lbf
Cooling System
8.29 gal
Bucket Width
8' 11"
Wheel Base
9' 10"
Ground Clearance
1' 5"
Breakout Force
24,055 lbf
Fuel Tank
62.08 gal
Hydraulic System
39.63 gal
Hydraulic Tank
31.7 gal
Hinge Pin Height
12' 7"
Dump reach at 45° (fully raised)
3' 6"
Static Tipping Load (Full Turn)
21,186 lb
Travel Speed Forward - 1st gear
4.1 mph
Dump height at 45° (fully raised)
9' 2"
Overall Height
10' 9"
Rear Axle Oscillation
22°
Bucket Capacity
3.27 yd³
Overall Length
24' 6"
External Turning Radius at Bucket Edge
19' 9"
Static Tipping Load (Straight)
23,997 lb
Dump Reach At 45° (Fully Raised)
3' 6"
Dump Height At 45° (Fully Raised)
9' 2"
External Turning Radius At Bucket Edge
19' 9"
Boom Speed - Up (Loaded)
6 s (±0.5 s)
Boom Speed - Down
3.5 s (±0.4 s)
Bucket Speed - Dump
1.4 s (±0.3 s)
Main Pump: Max Flow Rate (each)
40.95 gal/min
Main Pump: Main Relief Pressure
3,843 psi
Total Cycle Time
10.9 s (±0.3 s)
Main Pump: Displacement
4.52 in³/rev
Main Pump: Max. Flow Rate (Each)
40.95 gal/min
