Description

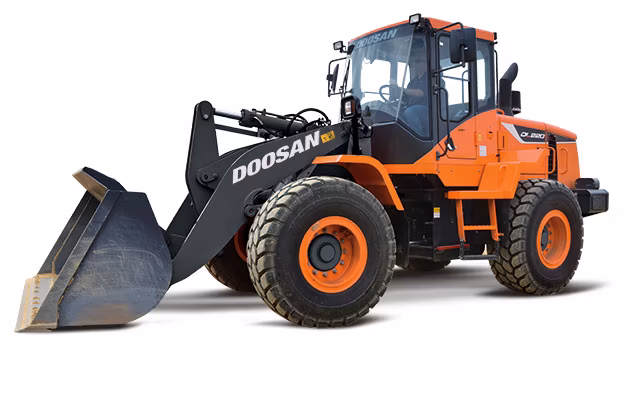

Develon DL220-5
Specifications
Manufacturer
Develon
Model
DL220-5
Year
2025
Category
Loaders
Subcategory
Wheel Loaders
Parent Id
0
Child Count
0
Rated Horse Power (Net)
160 hp @ 2,100 rpm
Max Torque (Net)
542 lbf ft @ 1,400 rpm
Rated Flywheel Power (Gross)
160 hp @ 2,100 rpm
Max. Torque (Net)
542 lbf ft @ 1,400 rpm
Travel performance: Gradeability
30° @ 58 %
Traveling performance: Max Tractive Effort
24,692 lb
Operating Weight
27,381 lb
Traveling Performance: Max. Tractive Effort
24,692 lb
Travel Speed Forward - 1St Gear
4.35 mph
Cooling System
8.29 gal
External Turning Radius at Bucket Edge
19' 6"
Fuel Tank
62.08 gal
Cooling System
8.29 gal
Hinge Pin Height
12' 7"
Static Tipping Load (Straight)
21,231 lb
Static Tipping Load (Full Turn)
18,750 lb
Travel Speed Forward - 1st gear
4.35 mph
Wheel Base
9' 10"
Dump height at 45° (fully raised)
9' 3"
Overall Height
10' 9"
Overall Length
24' 5"
Hydraulic System
39.63 gal
Hydraulic Tank
31.7 gal
Bucket Capacity
3.01 yd³
Dump reach at 45° (fully raised)
3' 5"
Ground Clearance
1' 5"
Breakout Force
22,706 lbf
Rear Axle Oscillation
22°
Bucket Width
8' 4"
Dump Reach At 45° (Fully Raised)
3' 5"
Dump Height At 45° (Fully Raised)
9' 3"
External Turning Radius At Bucket Edge
19' 6"
Boom Speed - Down
3.5 s (±0.4 s)
Bucket Speed - Dump
1.2 s (±0.3 s)
Main Pump: Max Flow Rate (each)
40.95 gal/min
Main Pump: Main Relief Pressure
3,626 psi
Total Cycle Time
10.7 s (±0.3 s)
Main Pump: Displacement
4.52 in³/rev
Boom Speed - Up (Loaded)
6 s (±0.5 s)
Main Pump: Max. Flow Rate (Each)
40.95 gal/min
