Description

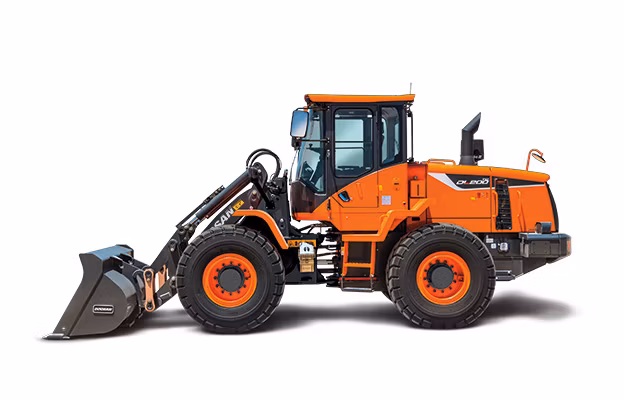

Develon - DL200TC-5
Specifications
Manufacturer
Develon
Model
DL200TC-5
Year
2025
Category
Loaders
Subcategory
Wheel Loaders
Rated Horse Power (Net)
142.1 hp @ 2,200 rpm
Max Torque (Net)
413 lbf ft @ 1,400 rpm
Rated Flywheel Power (Gross)
142.1 hp @ 2,200 rpm
Max. Torque (Net)
413 lbf ft @ 1,400 rpm
Travel performance: Gradeability
29° @ 55 %
Traveling performance: Max Tractive Effort
18,298 lb
Operating Weight
26,224 lb
Traveling Performance: Max. Tractive Effort
18,298 lb
Travel Speed Forward - 1St Gear
8.08 mph
Cooling System
8.06 gal
Bucket Capacity
2.62 yd³
Static Tipping Load (Straight)
18,827 lb
Static Tipping Load (Full Turn)
16,623 lb
Breakout Force
21,357 lbf
Travel Speed Forward - 1st gear
8.08 mph
Cooling System
8.06 gal
Hydraulic System
34.34 gal
Hydraulic Tank
34.08 gal
Bucket Capacity
2.62 yd³
Bucket Width
8' 4"
Hinge Pin Height
12' 6"
Overall Length
23' 11"
Wheel Base
9' 6"
Ground Clearance
1' 5"
Static Tipping Load (Straight)
18,827 lb
Static Tipping Load (Full Turn)
16,623 lb
Rear Axle Oscillation
22°
Dump height at 45° (fully raised)
8' 9"
Overall Height
10' 9"
Breakout Force
21,357 lbf
Dump reach at 45° (fully raised)
3' 1"
External Turning Radius at Bucket Edge
18' 9"
Fuel Tank
48.08 gal
Dump Reach At 45° (Fully Raised)
3' 1"
Dump Height At 45° (Fully Raised)
8' 9"
External Turning Radius At Bucket Edge
18' 9"
Bucket Speed - Dump
2.6 s (±0.3 s)
Main Pump: Max Flow Rate (each)
47.55 gal/min
Main Pump: Main Relief Pressure
3,118 psi
Total Cycle Time
11.9 s (±0.3 s)
Main Pump: Displacement
2.69 in³/rev
Boom Speed - Up (Loaded)
5.1 s (±0.5 s)
Boom Speed - Down
4.2 s (±0.4 s)
Main Pump: Max. Flow Rate (Each)
47.55 gal/min
