Description

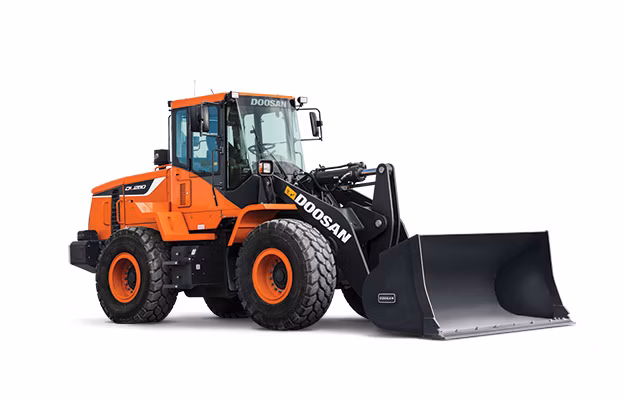

Develon DL280-5
Specifications
Manufacturer
Develon
Model
DL280-5
Year
2025
Category
Loaders
Subcategory
Wheel Loaders
Parent Id
0
Child Count
0
Rated Flywheel Power (Gross)
171.7 hp @ 2,100 rpm
Rated Horse Power (Net)
171.7 hp @ 2,100 rpm
Max. Torque (Net)
593 lbf ft @ 1,400 rpm
Travel Performance: Gradeability
30°
Traveling Performance: Max. Tractive Effort
24,000 lb
Operating Weight
34,262 lb
Travel Speed Forward - 1St Gear
3.91 mph
Fuel Tank
62.08 gal
Cooling System
8.35 gal
Bucket Capacity
3.66 yd³
Bucket Width
8' 11"
Hinge Pin Height
12' 11"
Dump Reach At 45° (Fully Raised)
3' 9"
Dump Height At 45° (Fully Raised)
9' 2"
Overall Height
10' 10"
Overall Length
25' 3"
Wheel Base
9' 10"
Ground Clearance
1' 3"
External Turning Radius At Bucket Edge
19' 11"
Static Tipping Load (Straight)
26,486 lb
Static Tipping Load (Full Turn)
23,389 lb
Breakout Force
30,349 lbf
Rear Axle Oscillation
22°
Main Pump: Displacement
6.1 in³/rev
Boom Speed - Up (Loaded)
6.3 s (±0.5 s)
Boom Speed - Down
3.2 s (±0.4 s)
Bucket Speed - Dump
1.3 s (±0.3 s)
Main Pump: Max. Flow Rate (Each)
55.48 gal/min
Main Pump: Main Relief Pressure
3,843 psi
Total Cycle Time
10.9 s (±0.3 s)
Hydraulic System
39.63 gal
Hydraulic Tank
31.7 gal
