Description

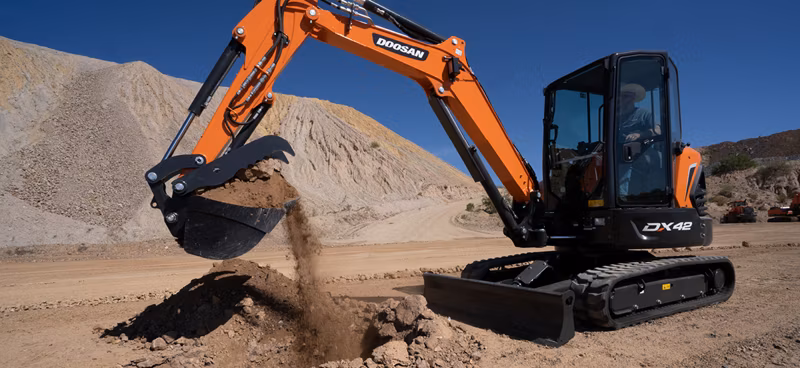

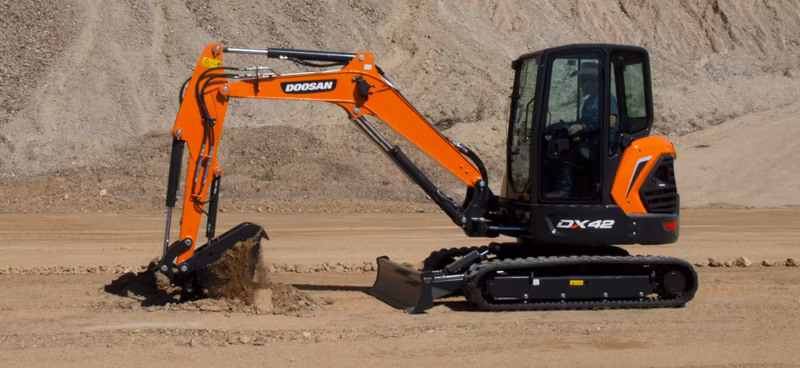

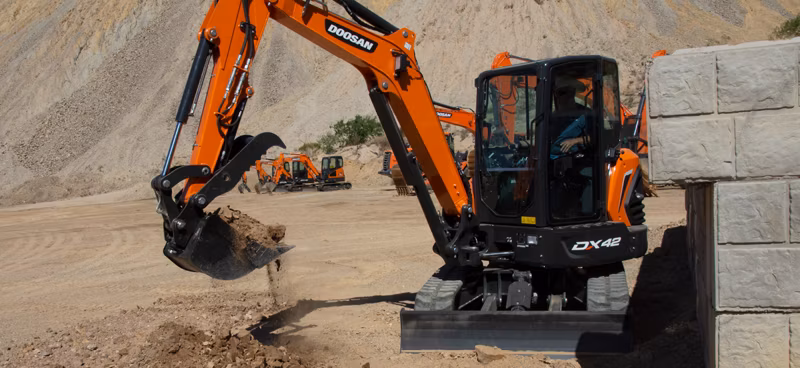

Develon DX42-5K
Specifications
Manufacturer
Develon
Model
DX42-5K
Year
2025
Category
Excavators
Subcategory
Mini Excavators
Engine Rated Flywheel Power (Gross)
42 hp @ 2,200 rpm (SAE-J1995)
Engine Rated Horse Power (Net)
42 hp @ 2,200 rpm
Engine Max. Torque (Net)
116 lbf ft @ 1,600 rpm
Engine Engine Emissions Tier (EPA)
Tier 4
Undercarriage Lower Rollers: Quantity Per Side
4
Undercarriage Upper Rollers: Quantity Per Side
1
Undercarriage Track Length
7' 5"
Swing Mechanism Swing Performance: Max Swing Speed (At Efficiency)
9 rpm
Travel System/Drive Mechanism Travel performance: Traction Force (Highest Value)
8853 lbf ft @ 80 %
Travel System/Drive Mechanism Travel performance: Traveling Speed - Low (XXX/)
1.6 mph
Travel System/Drive Mechanism Travel performance: Traveling Speed - High (/XXX)
3.3 mph
Travel System/Drive Mechanism Travel performance: Gradeability
28°
Weights Operating Weight
10,114 lb
Weights Standard Boom Length
8.69 ft
Weights Standard Arm Length
4.59 ft
Weights Standard Bucket Size
0.14 yd³
Weights Shoe Width
1' 1"
Working Range Max Digging Reach (Ground)
17' 3"
Working Range Max Digging Depth
10' 4"
Working Range Max Loading Height
12' 4"
Digging Force (ISO) Arm Digging Force - Pressure up
5,820 lb
Digging Force (ISO) Bucket Digging Force - Pressure up
9,601 lb
Refill Capacities Fuel Tank
19 gal
Refill Capacities Hydraulic System
14.5 gal
Refill Capacities Engine Coolant
2 gal
Refill Capacities Engine Oil
1.66 gal
Refill Capacities Hydraulic Tank
4 gal
Environment Noise Level: Guaranteed Sound Power Level
98 dBA
Environment Noise Level: Operator
74 dBA
Dimensions Shipping Height - Hose (With Attachment)
8' 0"
Dimensions Shipping Length (Without Attachment)
15' 9"
Dimensions Shipping Width (Standard)
5' 9"
Dimensions Overall Height Over Cab
8' 0"
