Description

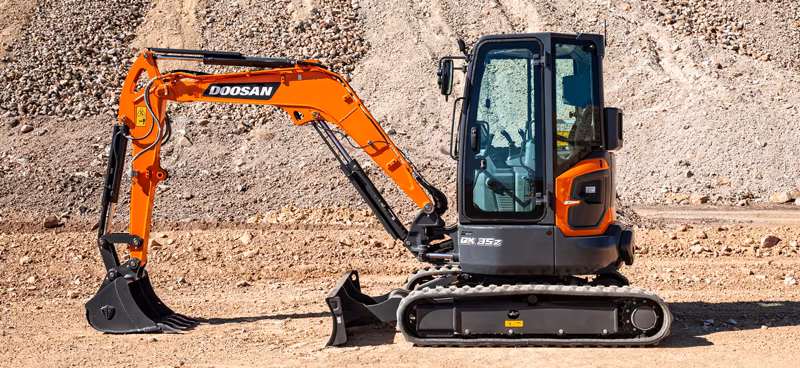

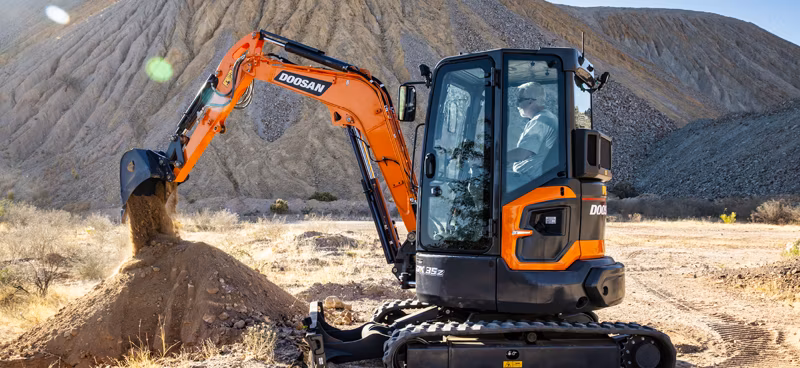

Develon DX35Z-7
Specifications
Manufacturer
Develon
Model
DX35Z-7
Year
2025
Category
Excavators
Subcategory
Mini Excavators
Model
Doosan DN1.7
Rated Flywheel Power (Gross)
24.7 hp @ 2200 rpm
Rated Horse Power (Net)
24.7 hp @ 2200 rpm
Max. Torque (Net)
72 lbf ft @ 1600 rpm
Engine Emissions Tier (Epa)
Tier 4
Engine After Treatment
Muffler Only
Engine Make
DN1.7
Engine Name
Doosan DN1.7
Engine Number Of Cylinders
3
Engine Displacement
101 in³
Swing Performance: Max Swing Torque
6280 lbf ft
Swing Performance: Max Swing Speed (At Efficiency)
8.3 rpm
Engine Coolant
1.27 gal
Engine Oil
1.53 gal
Upper Rollers: Quantity Per Side
1
Lower Rollers: Quantity Per Side
4
Travel Performance: Traction Force (Highest Value)
9851 lbf
Travel Performance: Traveling Speed - Low (Xxx/)
1.55 mph
Travel Performance: Traveling Speed - High (/Xxx)
2.67 mph
Travel Performance: Gradeability
35 ° @ 70 %
Operating Weight
8807 lb
Standard Bucket Size
0.14 yd³
Max Digging Reach (Ground)
17' 2"
Max Digging Height
16' 8"
Max Digging Depth
10' 8"
Arm Digging Force - Pressure Up
476.6 lbf
Bucket Digging Force - Pressure Up
728.38 lbf
Fuel Tank
12.42 gal
Noise Level: Guaranteed Sound Power Level
97 dBA
Noise Level: Operator
78 dBA
Track Length
6' 11"
Track Link: Track Gauge
4' 7"
Ground Clearance
1' 6"
Standard Boom Length
8' 3"
Standard Arm Length
4' 4"
Shoe Width
11.8"
Shipping Height- Hose (With Attachment)
8' 5"
Shipping Length (Without Attachment)
15' 8"
Shipping Width (Standard)
5' 6"
Overall Height Over Cab
8' 1"
Main Pump: Displacement
2.05 in³/rev
Main Pump: Max. Flow Rate (Each)
9.77 gal/min
Main Pump: Quantity
2
Main Pump: Main Relief Pressure
3988 psi
Ground Pressure
4.98 psi
Hydraulic Tank
12.94 gal
