Description

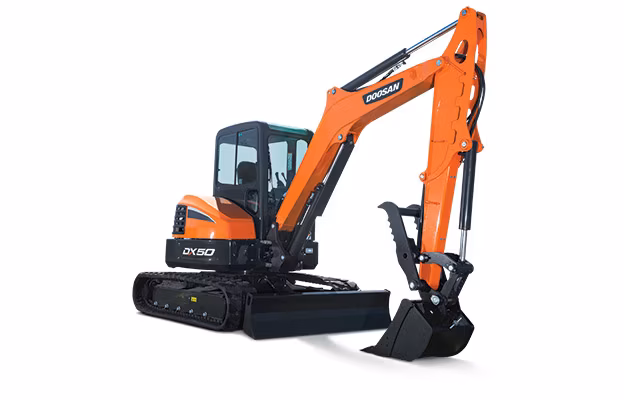

Develon DX50-5
Specifications
Manufacturer
Develon
Model
DX50-5
Year
2025
Category
Excavators
Subcategory
Mini Excavators
Rated Flywheel Power (Gross)
49.7 hp @ 2,200 rpm (SAE-J1995)
Rated Horse Power (Net)
45.7 hp @ 2,200 rpm
Max. Torque (Net)
151 lbf ft @ 1,600 rpm
Lower Rollers: Quantity Per Side
5
Swing Performance: Max Swing Speed (At Efficiency)
9 rpm
Travel Performance: Traction Force (Highest Value)
11767 lbf ft
Travel Performance: Traveling Speed - Low (Xxx/)
1.9 mph
Travel Performance: Traveling Speed - High (/Xxx)
3.1 mph
Travel Performance: Gradeability
30°
Operating Weight
10,986 lb
Max Digging Reach (Ground)
19' 5"
Arm Digging Force - Pressure Up
6,744 lb
Bucket Digging Force - Pressure Up
8,977 lb
Noise Level: Operator
81 dBA
Track Length
8' 3"
Standard Boom Length
9.1 ft
Standard Arm Length
5.02 ft
Standard Bucket Size
0.2 yd³
Shipping Height - Hose (With Attachment)
8' 3"
Shipping Length (Without Attachment)
18' 2"
Shipping Width (Standard)
6' 5"
Overall Height Over Cab
8' 3"
Max Digging Depth
11' 6"
Max Loading Height
12' 10"
Main Pump: Max. Flow Rate (Each)
36.6 gal/min
Main Pump: Main Relief Pressure
3,625 psi
