Description

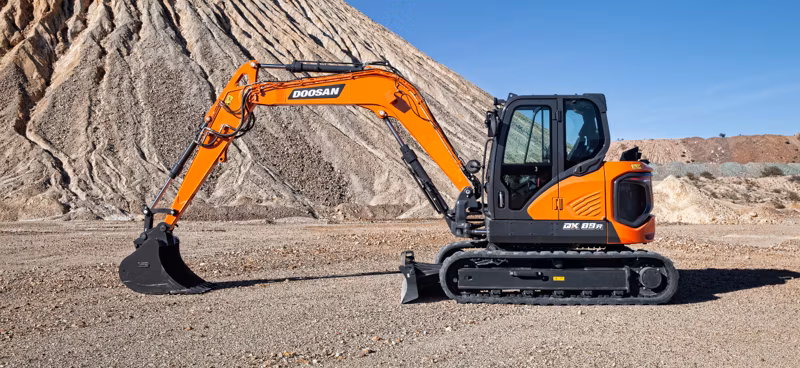

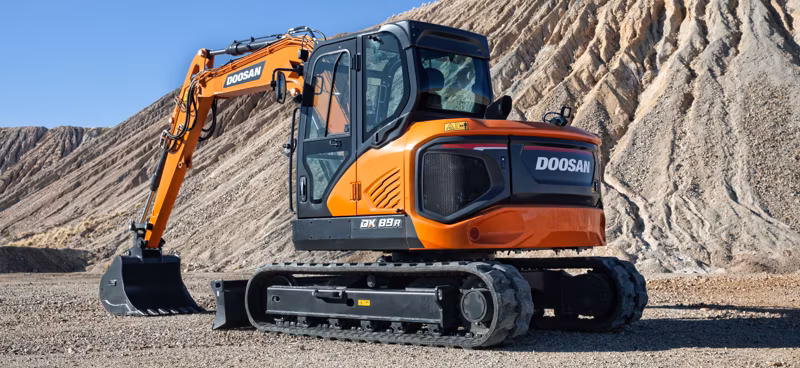

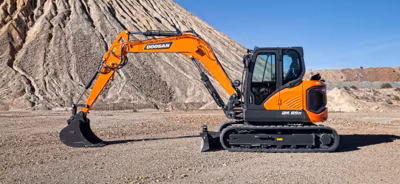

Develon DX89R-7
Specifications
Manufacturer
Develon
Model
DX89R-7
Year
2025
Category
Excavators
Subcategory
Mini Excavators
Model
Doosan D24
Rated Flywheel Power (Gross)
48.5 hp @ 2100 rpm (SAE-J1995)
Rated Horse Power (Net)
65 hp @ 2100 rpm
Max. Torque (Net)
284 lbf ft @ 1600 rpm
Engine Emissions Tier (Epa)
Tier 4
Engine After Treatment
DOC
Engine Make
Doosan
Engine Name
D24 Turbo
Engine Number Of Cylinders
4
Engine Displacement
146 in³
Swing Performance: Max Swing Torque
2618 lbf ft
Swing Performance: Max Swing Speed (At Efficiency)
9.9 rpm
Engine Coolant
2.64 gal
Engine Oil
2.27 gal
Upper Rollers: Quantity Per Side
1
Lower Rollers: Quantity Per Side
5
Travel Performance: Traction Force (Highest Value)
14550 lbf
Travel Performance: Traveling Speed - Low (Xxx/)
1.68 mph
Travel Performance: Gradeability
58 °
Operating Weight
21025 lb
Standard Bucket Size
0.37 yd³
Max Digging Reach (Ground)
22' 5"
Max Digging Height
21' 11"
Max Digging Depth
13' 5"
Arm Digging Force - Pressure Up
9824 lbf
Bucket Digging Force - Pressure Up
14770 lbf
Arm Digging Force - Normal
9479 lbf
Fuel Tank
42.27 gal
Noise Level: Guaranteed Sound Power Level
99 dBA
Noise Level: Operator
75 dBA
Track Length
5' 10"
Track Link: Track Gauge
5' 10"
Ground Clearance
11.6"
Standard Boom Length
11' 1"
Standard Arm Length
5' 6"
Shoe Width
1' 5"
Shipping Height - Hose (With Attachment)
8' 8"
Shipping Length (Without Attachment)
11' 2"
Shipping Width (Standard)
7' 4"
Overall Height Over Cab
8' 8"
Max Loading Height
15' 5"
Main Pump: Displacement
0.67 in³/rev
Main Pump: Max. Flow Rate (Each)
39.36 gal/min
Main Pump: Quantity
1
Ground Pressure
3.98 psi
Hydraulic System
36.98 gal
Hydraulic Tank
24.83 gal
