Description

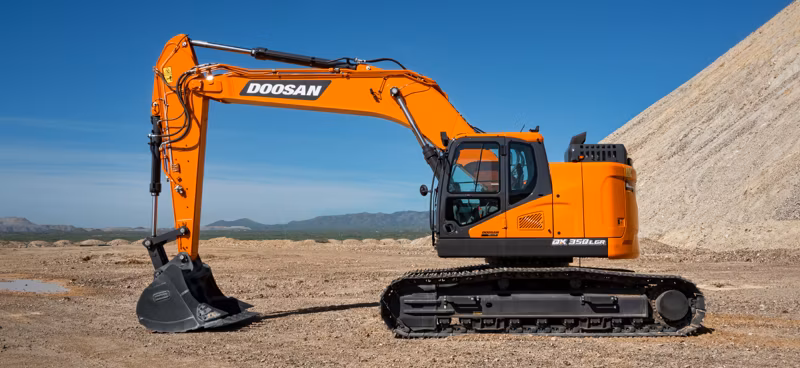

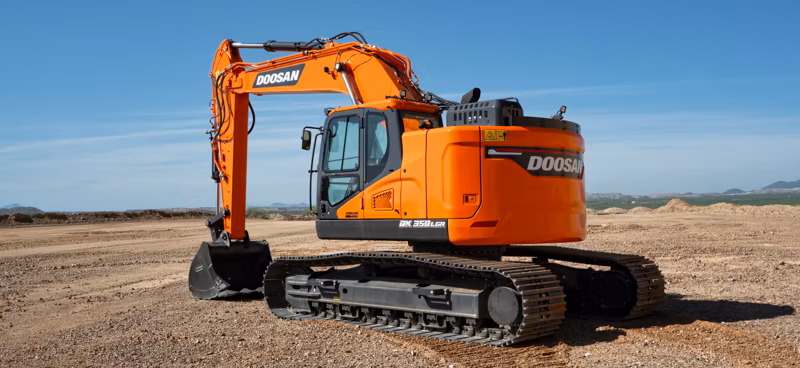

Develon DX350LCR-7
Specifications
Manufacturer
Develon
Model
DX350LCR-7
Year
2025
Category
Excavators
Subcategory
Crawler Excavators
Model
DX350LCR-7
Rated Flywheel Power (Gross)
271 hp @ 1800 rpm
Rated Horse Power (Net)
271 hp @ 1800 rpm
Max. Torque (Net)
940 lbf ft @ 1300 rpm
Engine Emissions Tier (Epa)
Tier 4
Engine Make
Doosan
Engine Name
DL08-LEE03
Engine Number Of Cylinders
6
Engine Displacement
466 in³
Swing Performance: Max Swing Torque
90,348 lbf.ft
Swing Performance: Max Swing Speed (At Efficiency)
9.8 rpm
Bottom Rollers: Quantity Per Side
2
Travel Performance: Traction Force (Highest Value)
83,335 lbf
Travel Performance: Traveling Speed - Low (Xxx/)
2.0 mph
Travel Performance: Traveling Speed - High (/Xxx)
3.2 mph
Travel Performance: Gradeability
35 °
Operating Weight
79,807 lb
Standard Bucket Size
1.66 yd³
Max Digging Reach (Ground)
34' 10"
Max Digging Depth
22' 10"
Arm Digging Force - Pressure Up
35,055 lbf
Bucket Digging Force - Pressure Up
47,400 lbf
Arm Digging Force - Normal
33,069 lbf
Noise Level: Guaranteed Sound Power Level
97 dBA
Noise Level: Operator
73 dBA
Lifting Capacity Over Front @ Horizontal Distance - 10 Ft Above Ground
24,670 lb 20 ft
Lifting Capacity Over Front @ Horizontal Distance - 10 Ft Above Ground - Lb
24,670 lb
Lifting Capacity Over Front @ Horizontal Distance - 10 Ft Above Ground - Ft
20' 0"
Lifting Capacity Over Front @ Horizontal Distance - Ground Level
26,420 lb 20 ft
Lifting Capacity Over Front @ Horizontal Distance - Ground Level - Lb
26,420 lb
Lifting Capacity Over Front @ Horizontal Distance - Ground Level - Ft
20' 0"
Lifting Capacity Over Front @ Horizontal Distance - 10 Ft Below Ground
24,680 lb 20 ft
Lifting Capacity Over Front @ Horizontal Distance - 10 Ft Below Ground - Lb
24,680 lb
Track Length
16' 3"
Track Link: Track Gauge
9' 0"
Standard Boom Length
246' 0"
Standard Arm Length
122' 0"
Shoe Width
2' 9"
Shipping Height - Boom
11' 8"
Shipping Height - Boom One
11' 3"
Shipping Length (Without Attachment)
32' 9"
Shipping Width (Standard)
11' 10"
Overall Height Over Cab
10' 6"
Max Loading Height
26' 6"
Ground Pressure
6.9 psi
