Description

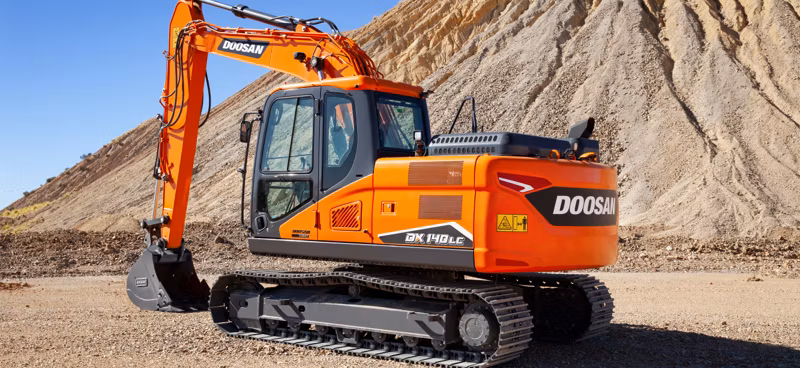

Develon DX140LC-7
Specifications
Manufacturer
Develon
Model
DX140LC-7
Year
2025
Category
Excavators
Subcategory
Crawler Excavators
Rated Flywheel Power (Gross)
115.3 hp @ 2000 rpm
Rated Horse Power (Net)
100.6 hp @ 2000 rpm
Max. Torque (Net)
340 lbf ft @ 1400 rpm
Engine Emissions Tier (Epa)
Tier 4
Swing Performance: Max Swing Torque
35355 lbf ft
Engine Coolant
6.74 gal
Engine Oil
3.33 gal
Swing Performance: Max Swing Speed (At Efficiency)
10 rpm
Model
G2 DM03
Engine After Treatment
DOC + SCR
Engine Make
Doosan
Engine Name
Doosan G2 DM03
Engine Number Of Cylinders
4
Engine Displacement
208 in³
Upper Rollers: Quantity Per Side
1
Lower Rollers: Quantity Per Side
7
Track Link: Track Gauge
6' 6"
Travel Performance: Traction Force (Highest Value)
33497 lbf
Travel Performance: Traveling Speed - High (/Xxx)
2.92 mph
Travel Performance: Traveling Speed - Low (Xxx/)
1.8 mph
Travel Performance: Gradeability
35° @ 70 %
Operating Weight
32187 lb
Max Digging Reach (Ground)
27' 11"
Max Digging Height
28' 8"
Bucket Digging Force - Pressure Up
24504 lbf
Arm Digging Force - Pressure Up
13264 lbf
Arm Digging Force - Normal
12364 lbf
Fuel Tank
70.01 gal
Hydraulic Tank
25.62 gal
Noise Level: Guaranteed Sound Power Level
100 dBA
Noise Level: Operator
69 dBA
Standard Bucket Size
0.67 yd³
Track Length
12' 3"
Standard Boom Length
15' 1"
Standard Arm Length
9' 10"
Shoe Width
1' 11"
Shipping Height - Hose (With Attachment)
10' 5"
Overall Height Over Cab
9' 2"
Max Loading Height
21' 1"
Shipping Length (Without Attachment)
25' 2"
Ground Clearance
1' 3"
Shipping Width (Standard)
8' 5"
Main Pump: Max. Flow Rate (Each)
30.12 gal/min
Main Pump: Displacement
3.48 in³/rev
Main Pump: Quantity
2
Main Pump: Main Relief Pressure
4699 psi
Ground Pressure
4.55 psi
Hydraulic System
38.3 gal
