Description

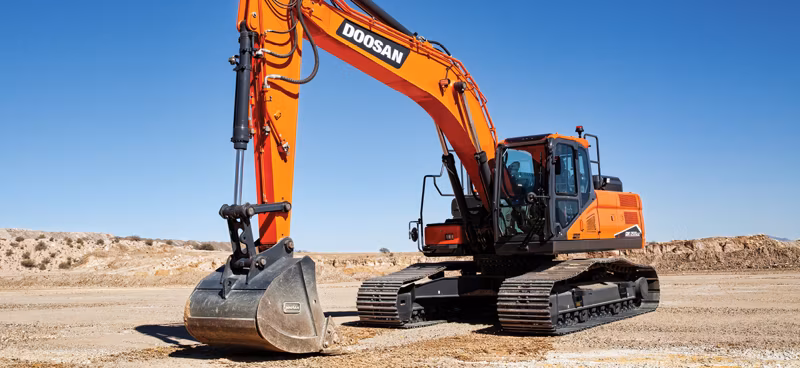

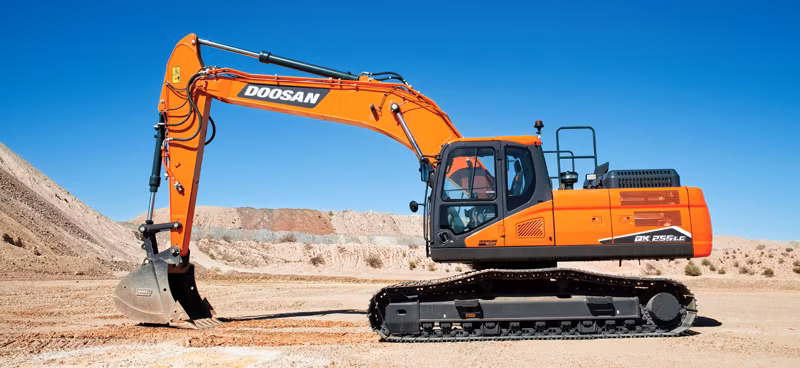

Develon DX255LC-7
Specifications
Manufacturer
Develon
Model
DX255LC-7
Year
2025
Category
Excavators
Subcategory
Crawler Excavators
Model
DX255LC-7
Rated Flywheel Power (Gross)
189 hp @ 1900 rpm
Rated Horse Power (Net)
185.1 hp @ 1900 rpm
Engine Emissions Tier (Epa)
Tier 4
Engine After Treatment
DOC+DPF+SCR
Engine Make
Doosan
Engine Displacement
359 in³
Swing Performance: Max Swing Torque
71462 lbf ft
Swing Performance: Max Swing Speed (At Efficiency)
10.01 rpm
Engine Coolant
7.4 gal
Engine Oil
7.13 gal
Upper Rollers: Quantity Per Side
2
Lower Rollers: Quantity Per Side
10
Travel Performance: Traction Force (Highest Value)
1952879 lbf @ 100
Travel Performance: Traveling Speed - Low (Xxx/)
1.99 mph
Travel Performance: Traveling Speed - High (/Xxx)
3.48 mph
Travel Performance: Gradeability
35 ° @ 70 %
Operating Weight
57761 lb
Standard Bucket Size
1.44 yd³
Max Digging Reach (Ground)
32' 9"
Max Digging Height
31' 10"
Max Digging Depth
22' 4"
Arm Digging Force - Pressure Up
2878 lbf
Bucket Digging Force - Pressure Up
4024 lbf
Arm Digging Force - Normal
2720 lbf
Fuel Tank
110.95 gal
Noise Level: Guaranteed Sound Power Level
103 dBA
Noise Level: Operator
70 dBA
Track Length
15' 2"
Track Link: Track Gauge
8' 6"
Ground Clearance
1' 5"
Standard Boom Length
19' 4"
Standard Arm Length
9' 10"
Shoe Width
2' 7"
Shipping Height - Hose (With Attachment)
10' 5"
Shipping Length (Without Attachment)
33' 0"
Shipping Width (Standard)
11' 1"
Overall Height Over Cab
9' 9"
Max Loading Height
23' 0"
Main Pump: Displacement
7.02 in³/rev
Main Pump: Max. Flow Rate (Each)
57.85 gal/min
Main Pump: Quantity
2
Ground Pressure
80.92 psi
Hydraulic System
73.97 gal
Hydraulic Tank
63.4 gal
