Description

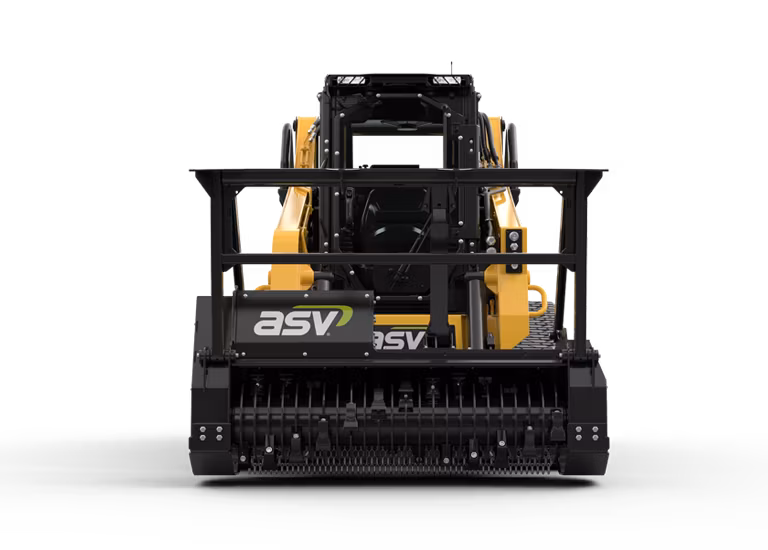

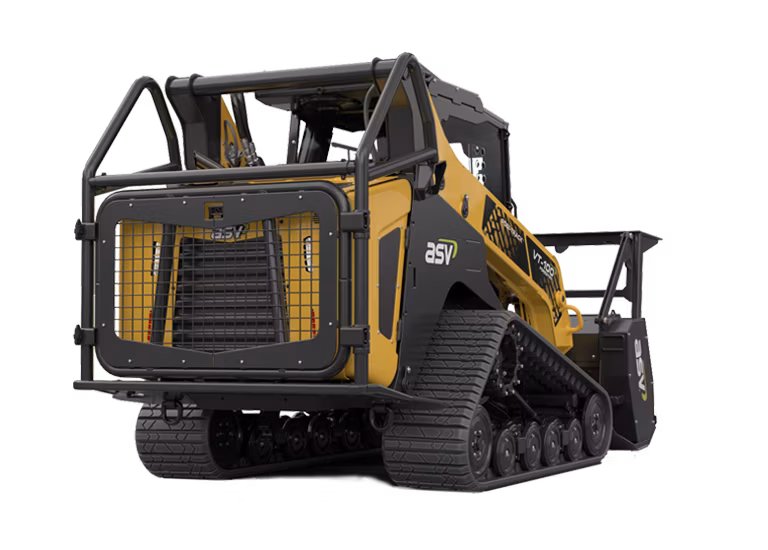

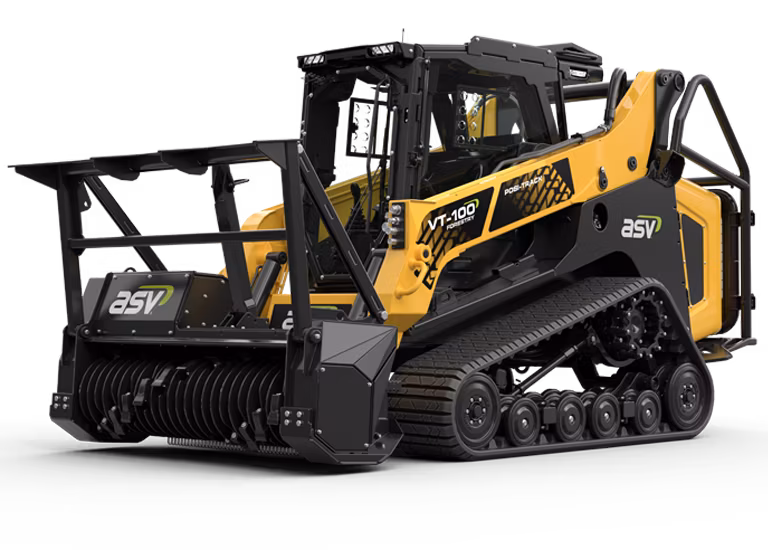

VT-100 FORESTRY COMPACT TRACK LOADERDEDICATED FORESTRY POWER AND PERFORMANCE. The Yanmar-powered MAX-Series™ VT-100 Forestry Posi-Track® loader is your answer to forestry-grade performance in a 103.5 hp compact track loader. Take on mulching, right-of-way clearance, site prep and more with elevated comfort, visibility and performance features.
Specifications
Manufacturer
ASV
Model
VT-100 FORESTRY
Year
2026
Category
Loaders
Subcategory
Compact Track Loaders
Loader Arms
vertical
Operating Weight
11375 lbs
Rated Operating Capacity @ 35%
3700 lbs
Ground Pressure
4.0 psi
Operating Weight (Open Cab)
10185 lbs
Operating Weight (Closed Cab)
10675 lbs
Ground Pressure at Operating Weight
4.0 psi
Rated Operating Capacity (35% Of Tipping Load)
3700 lbs
Tipping Load
10571 lbs
Travel Speed, Maximum
9.3 mph
Fuel Tank
34 gal
DEF Capacity
5 gal
Outlets
1 -12 V port inside operator station
Wiring
Upgradeable wiring harness
Charging System
80 amp alternator
Nominal Charge
12 V
Battery
950 CCA
Engine Power
103.5 hp
Displacement
3.1 L
Gross Horsepower
103.5 hp
Torque Peak
291 ft-lb

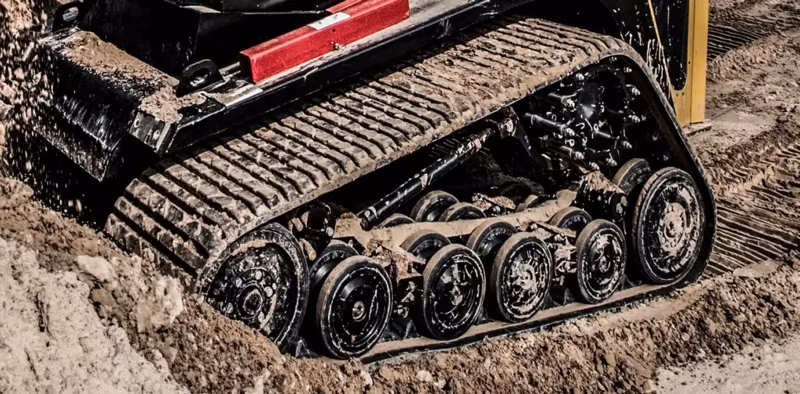

Track Width
20 in
Length of Track on the Ground
71 in
Ground Contact Area
2845 in2
Roller Wheel Diameter Front & rear wheels
15 in
Roller Wheel Diameter Middle Wheel
10 in
Full Length
160 in
Hinge Pin Height
132 in
Width
78 in
Ground Clearance
15 in
Machine Height
83.5in
Pump Capacity Low
23 gpm
Pump Capacity High
40 gpm
System Pressure Max Low
3500 psi
System Pressure Max High
4000 psi
