Description

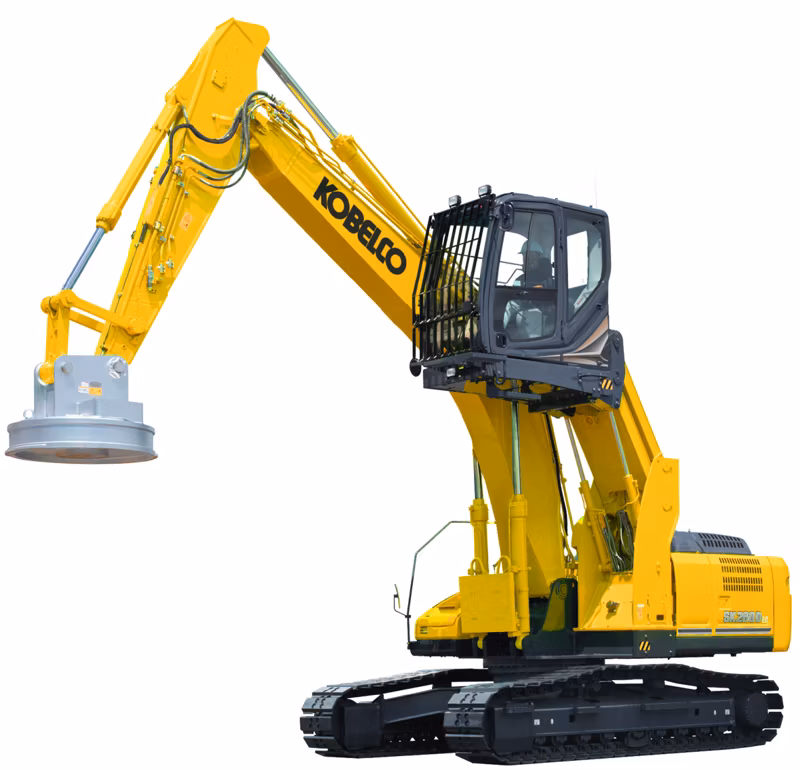

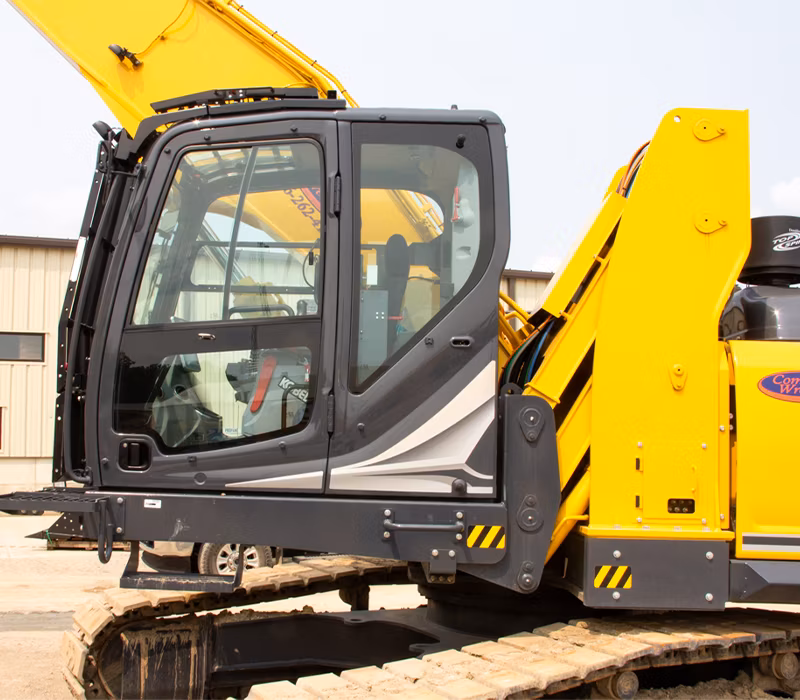

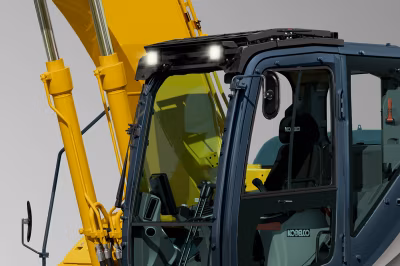

Take command of your workspace and reach new heights of productivity with the KOBELCO SK260DLC-11 Material Handler. The new machine boom and arm expands your work area, improves efficiency in gathering operations, and supports transport loadability efficiently. And like all KOBELCO excavators, the SK260DLC-11 is as comfortable on the inside as it is powerful on the outside. It includes exclusive operator comforts like a heated air-ride suspension seat, multi-vent air conditioner, ergonomic adjustable lever angles and joystick, and interior LED lights and a tilting left console for easy entry and exit.
Specifications
Manufacturer
Kobelco
Model
SK260DLC-11 Material Handler
Year
2026
Category
Excavators
Subcategory
Specialty Excavators
Ground Clearance of Rear End
3' 6" (1,070 mm)
Ground Clearance
19.1" (485 mm)
Tail Swing Radius
10' 1" (3,070 mm)
Tumbler Distance
12' 8" (3,850 mm)
Shoe Width
1' 12" (600 mm)
Overall Width of Upperstructure
10' 3" (3,120 mm)
Radius of attachment at arm in position (arm top) (2-Pin)
6'3" {1,910}
Elevation stroke (stroke) (2-Pin)
8'7" {2,610}
Swing Speed
7.4 rpm
Swing Torque
63,000 lbf/ft (85.9 kNm)
Operating Weight
74,700 lbs (33,900 kg)

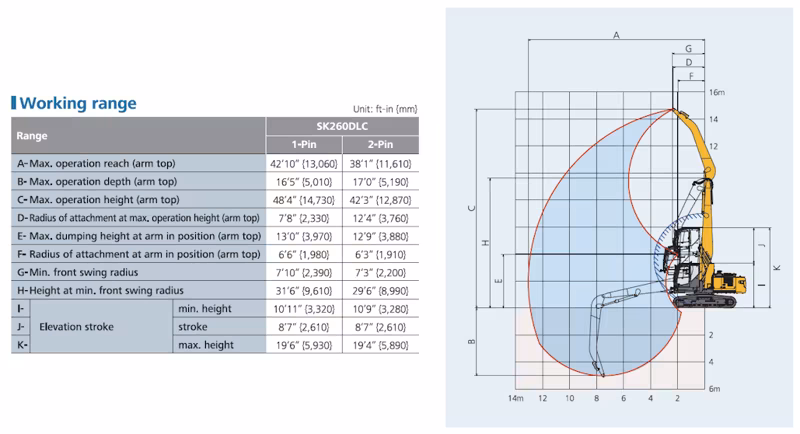

Max operation reach (arm top) (2-Pin)
38'1" {11,610}
Max operation depth (arm top) (2-Pin)
17'0" {5,190}
Max operation height (arm top) (2-Pin)
42'3" {12,870}
Radius of attachment at max operation height (arm top) (2-Pin)
12'4" {3,760}
Max dumping height at arm in position (arm top) (2-Pin)
12'9" {3,880}
Min front swing radius (2-Pin)
7'3" {2,200}
Height at min front swing radius (2-Pin)
29'6" {8,990}
Elevation stroke (min height) (2-Pin)
10'9" {3,280}
Elevation stroke (max height) (2-Pin)
19'4" {5,890}
Model
Yanmar 4TNV107FTT
Power Output
208 hp (155 kW) 194 hp (145 kW)
Displacement
278.7 in³ (4.57 ltr)
