Description

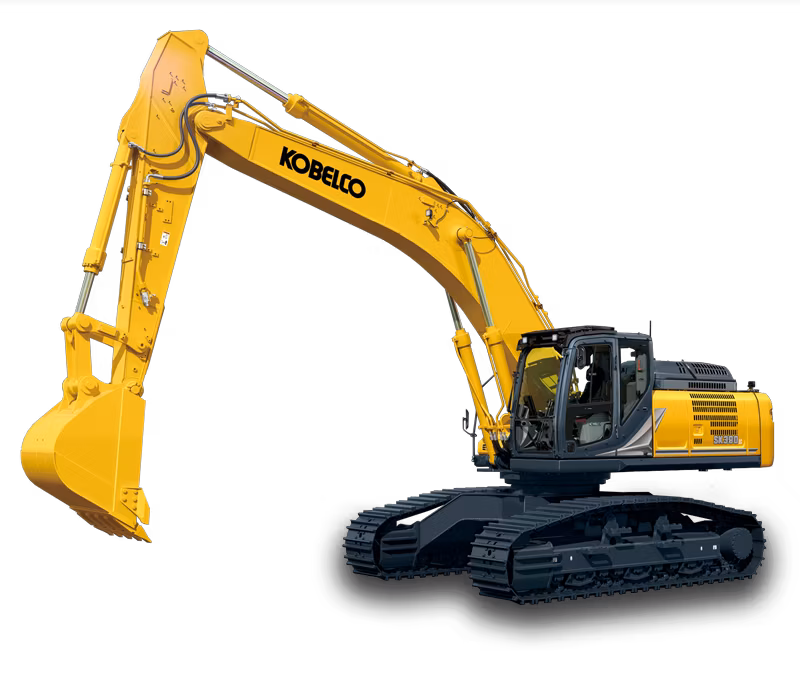

The unique KOBELCO SK390LC-11 H&W is designed with the undercarriage of a High & Wide excavator and the upper structure of a Conventional excavator. With a wider stance, increased clearance, and larger boom cylinders, the SK390LC-11 H&W delivers superior stability and maximum lift capacity to increase jobsite performance. You’ll even find we’ve taken care of the little things like adding swing flashers and a color rear view camera. Plus, premier operator comforts mean it’s easier for you to stay focused on the task at hand.
Specifications
Manufacturer
Kobelco
Model
SK390LC-11 H&W
Year
2026
Category
Excavators
Subcategory
Specialty Excavators
Number of Main Pumps
2
Travel Speed
3.7 mph (5.8 kph) / 2.2 mph (3.6 kph)
Drawbar Pulling Force
71,900 lbf (320 kN)
Operating Weight
84,000 lbs (38,100 kg)
Operating Weight a
84,200 lbs (38,200 kg)
Bucket Digging Force
56,200 lbf (250 kN)
Arm Crowding Force
40,700 lbf (181 kN)
Engine Power
265 hp (198 kW)
Overall Height (to top of boom)
12' 5" (3,780 mm)
Overall Width
12' (3,650 mm)
Ground Clearance of Rear End
4' 11" (1,510 mm)
Ground Clearance
30.9" (785 mm)
Tail Swing Radius
11' 10" (3,600 mm)
Distance From Center of Swing To Rear End
11' 10" (3,600 mm)
Tumbler Distance
13' 3" (4,050 mm)
Track Gauge
9' 8" (2,950 mm)
Shoe Width
27.6 (700 mm)
Overall Width of Upperstructure
10' 3" (3,120 mm)
Model
Isuzu 6HK1
Power Output
282 hp (210 kW)
Power Output a
265 hp (198 kW)
Max Torque
797 lbf (1080 Nm)
Displacement
475.4 in³ (7.79 ltr)
Fuel Tank
132.9 gallons (US) (503 ltr)
