Description

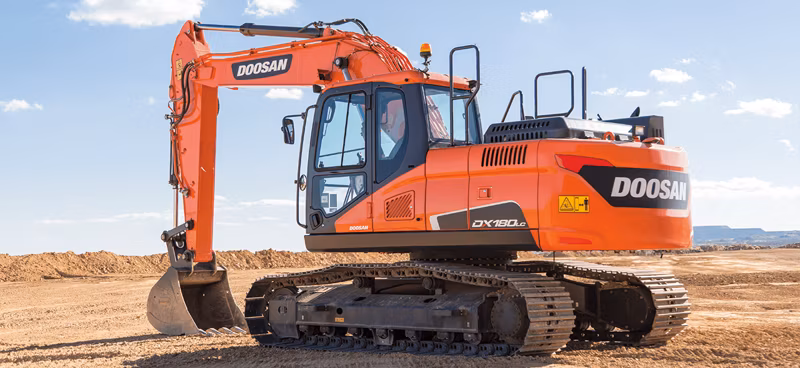

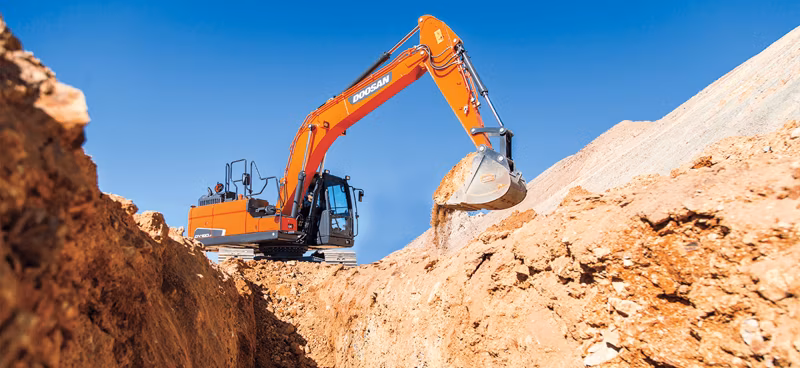

Develon DX180LC-5
Specifications
Manufacturer
Develon
Model
DX180LC-5
Year
2026
Category
Excavators
Subcategory
Crawler Excavators
Fuel Tank
77.14 gal
Max Torque (Net)
391 lbf·ft @ 1,400 rpm
Rated Horse Power (Net)
127.3 hp @ 2,000 rpm
Rated Flywheel Power (Gross)
131.3 hp @ 2,000 rpm (gross)
Engine Coolant
6.6 gal
Engine Emissions Tier (EPA)
T4 (EPA)
Max. Torque (Net)
391 lbf ft @ 1,400 rpm
Engine Oil
2.11 gal
Engine Rated Flywheel Power (Gross)
131.3 hp @ 2,000 rpm
Engine Rated Horse Power (Net)
127.3 hp @ 2,000 rpm
Engine Max. Torque (Net)
391 lbf ft @ 1,400 rpm
Max Digging Reach (Ground)
29' 7" (ground)
Noise Level: Guaranteed Sound Power Level
102 dBA
Max Digging Depth
20' 0"
Noise Level: Operator
68 dBA
Upper Rollers: Quantity Per Side
2
Shoe Width
2' 3"
Lifting Capacity over front @ Horizontal Distance - 10 ft Below Ground
16,320 lb @ 15 ft (10 ft)
Bucket Digging Force - Pressure up
28,881 lb
Travel performance: Traction Force (Highest Value)
45195 lbf·ft @ 100 % (highest value)
Travel performance: Traveling Speed - High (/XXX)
3.17 mph
Swing Performance: Max Swing Speed (At Efficiency)
10.52 rpm (at efficiency)
Standard Bucket Size
0.7 m³
Travel performance: Traveling Speed - Low (XXX/)
1.93 mph
Lifting Capacity over front @ Horizontal Distance - 10 ft Above Ground
15,270 lb @ 15 ft (10 ft)
Lifting Capacity over front @ Horizontal Distance - Ground Level
18,270 lb @ 15 ft
Lower Rollers: Quantity Per Side
7
Track Link: Track Gauge
7' 2"
Swing Performance: Max Swing Torque
46653 lbf ft
Travel Performance: Gradeability
70°
Operating Weight
43,224 lb
Arm Digging Force - Pressure Up
20,503 lb
Arm Digging Force - Normal
19,180 lb
Undercarriage Upper Rollers: Quantity Per Side
2
Undercarriage Lower Rollers: Quantity Per Side
7
Undercarriage Track Length
13' 4"
Undercarriage Track Link: Track Gauge
6' 6"
Swing Mechanism Swing Performance: Max Swing Torque
34718 lbf ft
Travel System/Drive Mechanism Travel performance: Traction Force (Highest Value)
45195 lbf ft @ 100 %
Travel System/Drive Mechanism Travel performance: Traveling Speed - Low (XXX/)
1.93 mph
Travel System/Drive Mechanism Travel performance: Traveling Speed - High (/XXX)
3.17 mph
Weights Operating Weight
43,224 lb
Weights Standard Boom Length
17.06 ft
Weights Standard Arm Length
8.53 ft
Weights Standard Bucket Size
0.92 yd³
Weights Shoe Width
2' 3"
Working Range Max Digging Reach (Ground)
29' 7"
Working Range Max Digging Depth
20' 0"
Working Range Max Loading Height
21' 3"
Digging Force (ISO) Arm Digging Force - Pressure up
20,503 lb
Digging Force (ISO) Bucket Digging Force - Pressure up
28,881 lb
Digging Force (ISO) Arm Digging Force - Normal
19,180 lb
Refill Capacities Fuel Tank
77.14 gal
Refill Capacities Hydraulic System
55.48 gal
Refill Capacities Engine Coolant
6.6 gal
Refill Capacities Engine Oil
2.11 gal
Refill Capacities Hydraulic Tank
47.82 gal
Environment Noise Level: Guaranteed Sound Power Level
102 dBA
Environment Noise Level: Operator
68 dBA
Lift Capacity Lifting Capacity over front @ Horizontal Distance - Ground Level
18,270 lb @ 15 ft
Overall Height Over Cab
9' 7"
Shipping Length (Without Attachment)
28' 9" (without attachments)
Shipping Width (Standard)
9' 6" (standard)
Track Length
13' 4"
Standard Boom Length
17.06 ft
Standard Arm Length
8.53 ft
Standard Bucket Size
0.92 yd³
Shipping Height - Hose (With Attachment)
9' 4"
Max Loading Height
21' 3"
Dimensions Shipping Height - Hose (With Attachment)
9' 4"
Dimensions Shipping Length (Without Attachment)
28' 9"
Dimensions Shipping Width (Standard)
9' 6"
Dimensions Overall Height Over Cab
9' 7"
Main Pump: Max Flow Rate (each)
40.15 gal/min (each)
Control Valve: Relief Valve Pressure (Normal)
4,694 psi
Control Valve: Relief Valve Pressure (Boost)
4,978 psi
Hydraulic System
55.48 gal
Hydraulic Tank
47.82 gal
Main Pump: Displacement
4.64 in³/rev
Main Pump: Max. Flow Rate (Each)
40.15 gal/min
Hydraulic System Main Pump: Displacement
4.64 in³/rev
Hydraulic System Control Valve: Relief Valve Pressure (Normal)
4,694 psi
Hydraulic System Control Valve: Relief Valve Pressure (Boost)
4,978 psi
Hydraulic System Main Pump: Max. Flow Rate (each)
40.15 gal/min
Hydraulic System Main Pump: Main Relief Pressure
1,294 psi
