Description

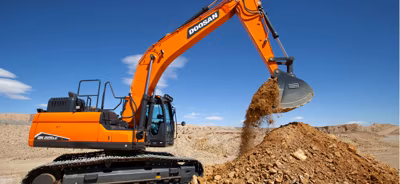

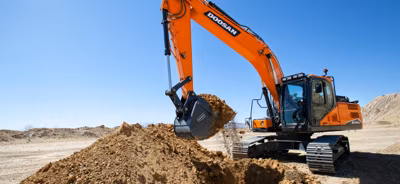

Develon DX225LC-7
Specifications
Manufacturer
Develon
Model
DX225LC-7
Year
2026
Category
Excavators
Subcategory
Crawler Excavators
Model
DL06
Rated Flywheel Power (Gross)
173 hp @ 1800 rpm (SAE-J1995)
Rated Horse Power (Net)
162.3 hp @ 1800 rpm
Max. Torque (Net)
593 lbf ft @ 1400 rpm
Engine Emissions Tier (Epa)
Tier 4
Engine After Treatment
CEGR+DOC+SCR with DEF
Engine Make
Doosan
Engine Name
Doosan DL06V
Engine Number Of Cylinders
6
Engine Displacement
359 in³
Swing Performance: Max Swing Torque
60757 lbf ft
Swing Performance: Max Swing Speed (At Efficiency)
10.9 rpm
Engine Coolant
8 gal
Engine Oil
7.13 gal
Upper Rollers: Quantity Per Side
2
Lower Rollers: Quantity Per Side
8
Travel Performance: Traction Force (Highest Value)
6191238 lbf
Travel Performance: Traveling Speed - Low (Xxx/)
1.85 mph
Travel Performance: Traveling Speed - High (/Xxx)
3.41 mph
Travel Performance: Gradeability
35 ° @ 70 %
Operating Weight
52690 lb
Standard Bucket Size
1.2 yd³
Max Digging Reach (Ground)
31' 9"
Max Digging Height
31' 6"
Max Digging Depth
21' 7"
Arm Digging Force - Pressure Up
2585 lbf
Bucket Digging Force - Pressure Up
3709 lbf
Arm Digging Force - Normal
2450 lbf
Fuel Tank
105.67 gal
Hydraulic Tank
34.61 gal
Noise Level: Guaranteed Sound Power Level
102 dBA
Noise Level: Operator
70 dBA
Track Length
14' 7"
Track Link: Track Gauge
7' 10"
Ground Clearance
1' 5"
Standard Boom Length
18' 8"
Standard Arm Length
9' 6"
Shoe Width
2' 7"
Shipping Height - Hose (With Attachment)
9' 10"
Shipping Length (Without Attachment)
31' 4"
Shipping Width (Standard)
10' 5"
Overall Height Over Cab
9' 9"
Max Loading Height
22' 4"
Main Pump: Displacement
7.14 in³/rev
Main Pump: Max. Flow Rate (Each)
55.63 gal/min
Main Pump: Quantity
2
Ground Pressure
5.26 psi
Hydraulic System
60.76 gal
