Description

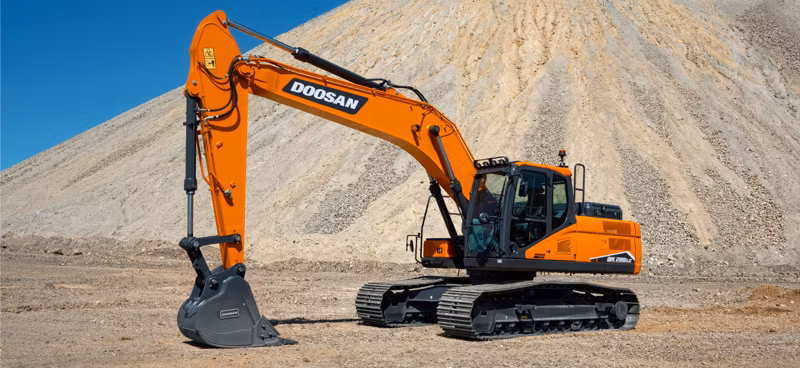

Develon DX200LC-7
Specifications
Manufacturer
Develon
Model
DX200LC-7
Year
2026
Category
Excavators
Subcategory
Crawler Excavators
Rated Flywheel Power (Gross)
147.5 hp @ 2000 rpm (SAE-J1995)
Rated Horse Power (Net)
138.1 hp @ 2000 rpm
Max. Torque (Net)
413 lbf ft @ 1400 rpm
Engine Emissions Tier (Epa)
Tier 5
Swing Performance: Max Swing Torque
63000 lbf ft
Engine Coolant
7.16 gal
Engine Oil
3.96 gal
Swing Performance: Max Swing Speed (At Efficiency)
11 rpm
Model
DX200LC-7
Engine After Treatment
CEGR+DOC+DPF+SCR with DEF
Engine Make
Perkins
Engine Number Of Cylinders
4
Engine Displacement
269 in³
Upper Rollers: Quantity Per Side
2
Lower Rollers: Quantity Per Side
8
Track Link: Track Gauge
7' 10"
Travel Performance: Traction Force (Highest Value)
60715 lbf
Travel Performance: Traveling Speed - High (/Xxx)
3.48 mph
Travel Performance: Traveling Speed - Low (Xxx/)
1.86 mph
Travel Performance: Gradeability
35° @ 70 %
Operating Weight
51147 lb
Max Digging Reach (Ground)
30' 5"
Max Digging Height
30' 11"
Max Digging Depth
20' 0"
Bucket Digging Force - Pressure Up
24504 lbf
Arm Digging Force - Pressure Up
13219 lbf
Arm Digging Force - Normal
22931 lbf
Fuel Tank
54.95 gal
Hydraulic Tank
33.81 gal
Noise Level: Guaranteed Sound Power Level
102 dBA
Noise Level: Operator
70 dBA
Standard Bucket Size
1.2 yd³
Lifting Capacity Over Front @ Horizontal Distance - 10 Ft Above Ground
14260 Lb @ 20 Ft
Lifting Capacity Over Front @ Horizontal Distance - Ground Level
16430 Lb @ 20 Ft
Lifting Capacity Over Front @ Horizontal Distance - 10 Ft Below Ground
13880 Lb @ 20 Ft
Lifting Capacity Over Front @ Horizontal Distance - 3M Above Ground
14290 Lb @ 19.68 Ft
Lifting Capacity Over Front @ Horizontal Distance - 3M Below Ground
13830 Lb @ 19.68 Ft
Track Length
14' 7"
Standard Boom Length
18' 8"
Standard Arm Length
7' 10"
Shoe Width
2' 7"
Shipping Height - Hose (With Attachment)
10' 2"
Overall Height Over Cab
9' 9"
Max Loading Height
9' 9"
Shipping Length (Without Attachment)
31' 5"
Ground Clearance
1' 5"
Shipping Width (Standard)
10' 5"
Main Pump: Max. Flow Rate (Each)
56 gal/min
Main Pump: Displacement
6.47 in³/rev
Main Pump: Quantity
2
Main Pump: Main Relief Pressure
4978 psi
Ground Pressure
5.26 psi
Hydraulic System
51.78 gal
