Description

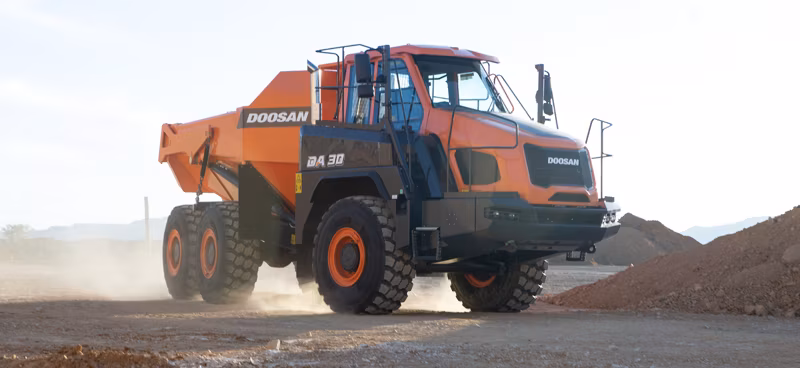

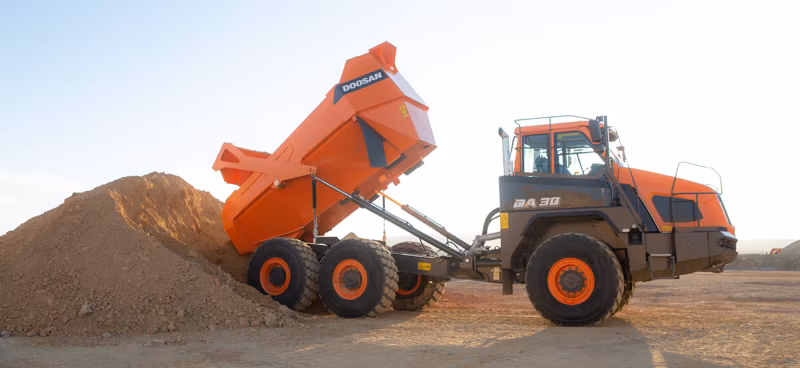

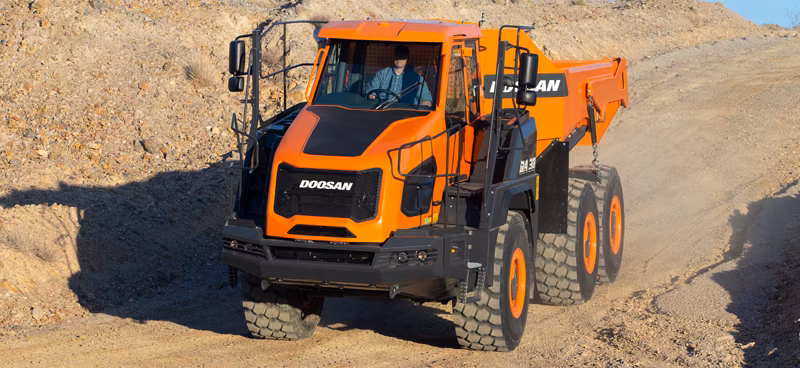

Develon DA30-5
Specifications
Manufacturer
Develon
Model
DA30-5
Year
2026
Category
Dump Trucks
Subcategory
Articulated Dump Trucks
Model
DA30-5
Rated Flywheel Power (Gross)
375 hp @ 2100 rpm (ISO-3046)
Rated Horse Power (Net)
362 hp @ 2100 rpm
Max. Torque (Net)
1381 lbf ft @ 1300 rpm
Engine Emissions Tier (Epa)
Tier 4
Engine After Treatment
SCR, CEGR with DOC
Engine Make
Scania
Engine Name
DC9
Engine Number Of Cylinders
5
Engine Displacement
568 in³
Aspiration
Turbo intercool
Engine Crankcase
8.8 gal
Engine Oil
9.51 gal
Operating Weight (Unloaded)
51588 lb
Operating Weight (Loaded)
113318 lb
Rated Payload
61729 lb
Front Axle Load - Empty
26235 lb
Rear Axle Load - Empty
25353 lb
Standard Tire Size
23.5 R25
Travel Speed Max Forward
34.2 mph
Travel Speed Max Reverse
9.9 mph
Speeds Forward
8
Speeds Reverse
4
Gears With Torque Convertor Lock Up
All Gears
Travel Speed Forward - 1St Gear
3.1 mph
Travel Speed Forward - 4Th Gear
9.3 mph
Fuel Tank
88.5 gal
Def Tank
10 gal
Cooling System
11.9 gal
Transmission
17.7 gal
Tandem Housing Count
2
Body Volume Struck Without Tailgate
17.8 yd³
Body Volume Heaped 2:1 Without Tailgate
22 yd³
Body Tipping Time Up
12 s
Body Tipping Time Down
10 s
Tip System
Single Stage, Double Acting
Rear Differential - Type
Limited-slip
Front Axle - Differential Type
Limited-slip
Longitudinal Differential Type
Locking
Retarder
Exhaust brake and transmission hydraulic
Brake Type
Wet Multi Disc
Total Height (A)
11' 8"
Overall Length (B)
31' 3"
Total Width Outside Tires (R )
9' 9"
Articulation
45 °
Ground Clearance Empty (E )
1' 10"
Load Over Height
9' 7"
Turning Radius Outside Wheel (Iso 7457)
25' 2"
Chassis
7 degree down sloping
Body Tipping Angle
70 °
Main Pump: Displacement
8.85 in³/rev
Main Pump: Max. Flow Rate (Each)
80.57 gal/min
Main Pump: Quantity
1
Main Pump: Main Relief Pressure
4061 psi
Hydraulic System
55.5 gal
Hydraulic Tank
32.49 gal
