Description

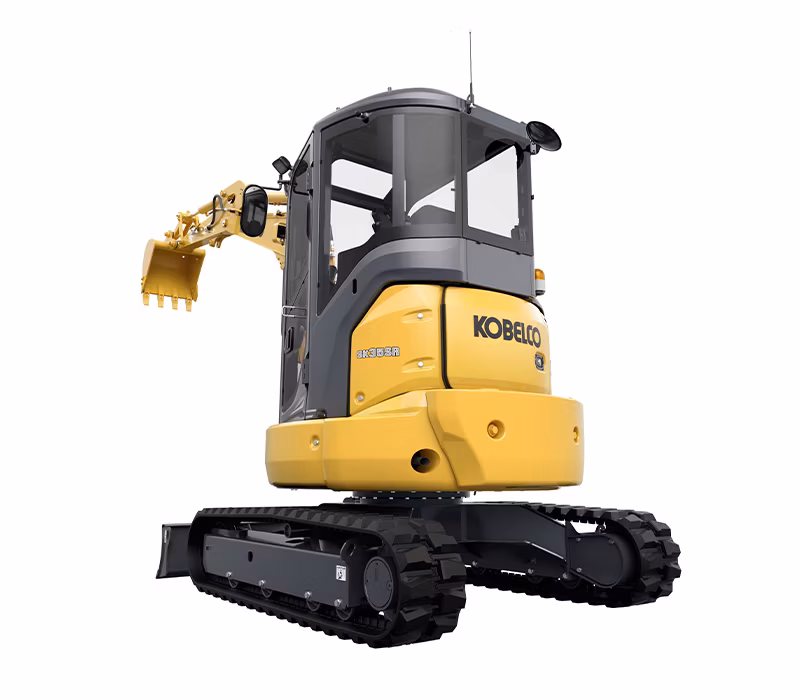

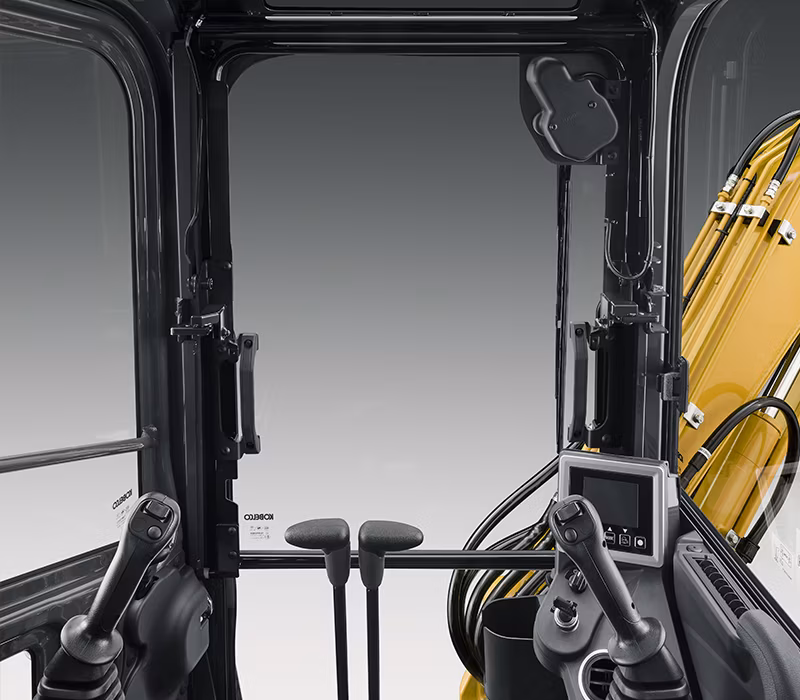

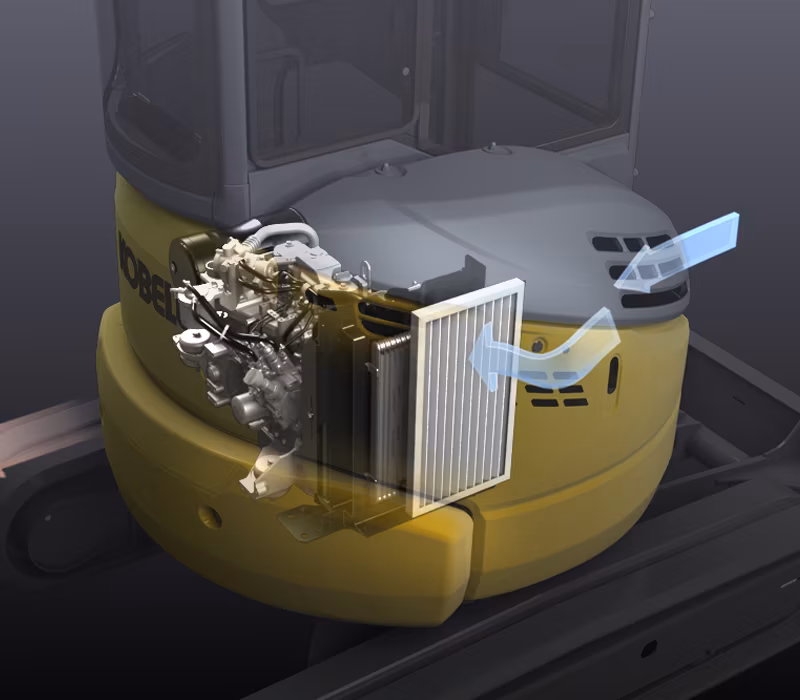

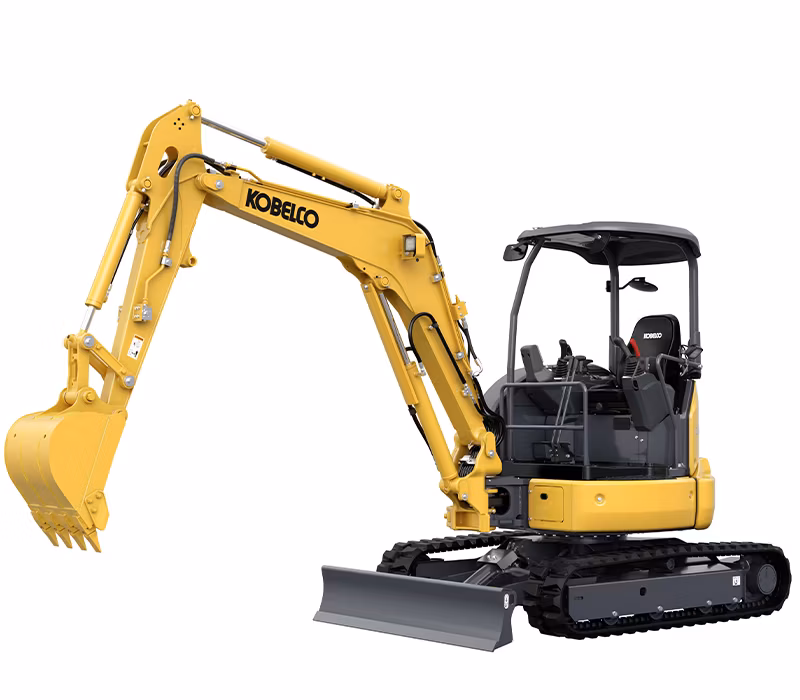

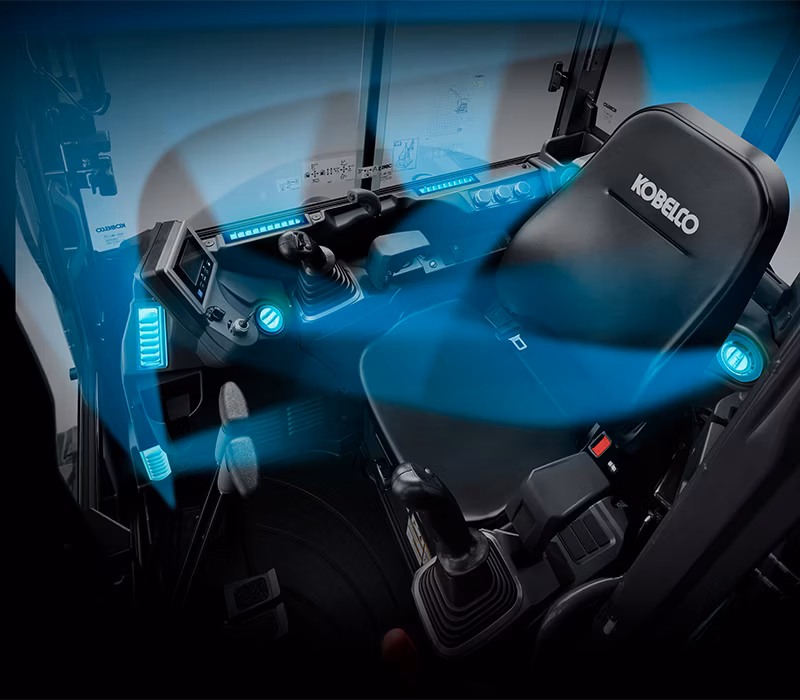

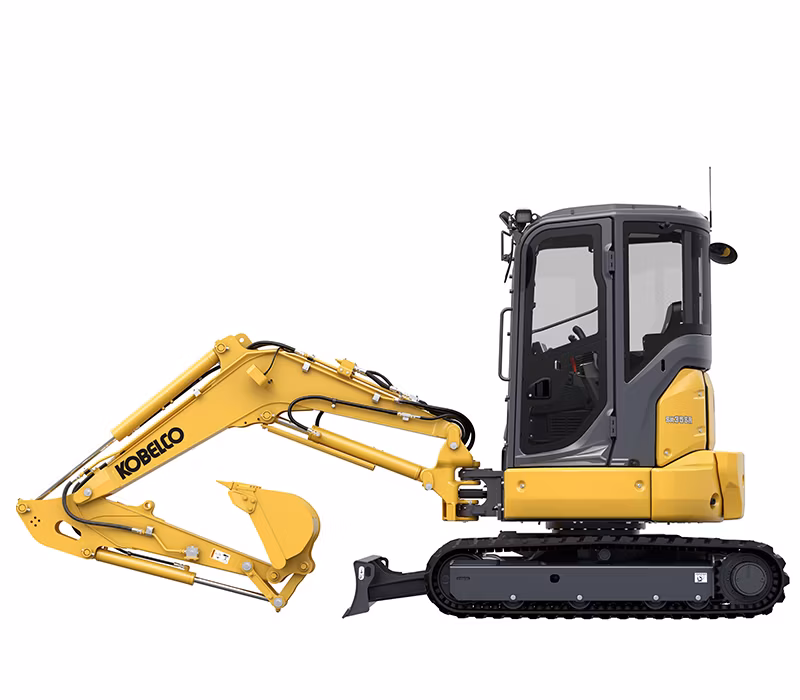

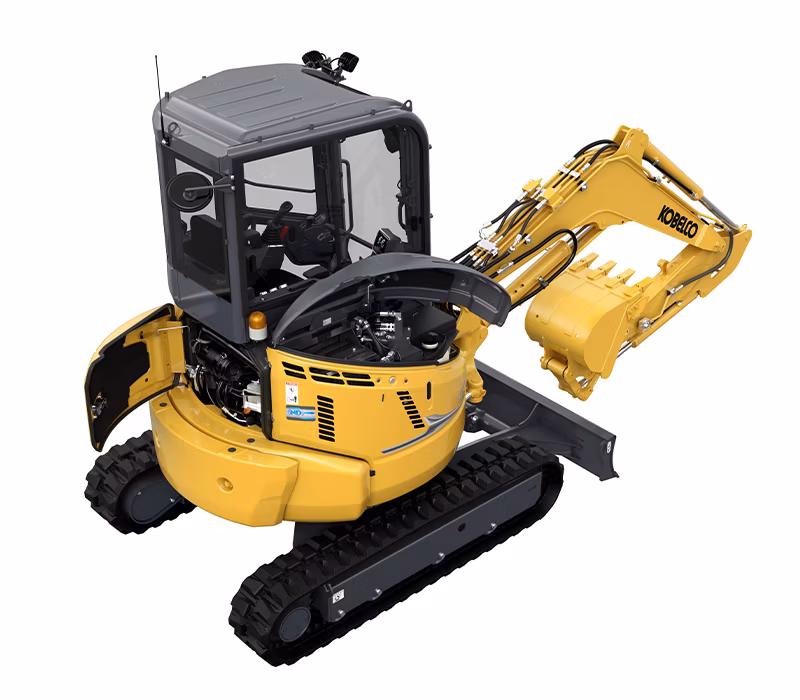

The KOBELCO SK35SR-7 Mini Excavator brings superior performance and ultimate comfort to a versatile machine that powers through any small-space project. It has an increased digging force and up to 24% fuel consumption reduction in ECO mode, empowering operators to get more done, more efficiently. The SK35SR-7 is a dream to use, not only because of its performance, but also because of its premier comfort. KOBELCO’s Integrated Noise & Dust Reduction (iNDr) cooling system keeps operators cool all day long, and combined with a cab filled with premium features like a suspension seat, wrist rests, smartphone connectivity, and LED illuminated controls, you can do it all without breaking a sweat.
Specifications
Manufacturer
Kobelco
Model
SK35SR-7
Year
2025
Category
Excavators
Subcategory
Mini Excavators
Number of Main Pumps
2
Dozer Blade
Blade Height: 13.6" (345 mm) Blade Width: 5' 7" (1,700 mm) Max Raise Height: 18.5" (470 mm) Dig Depth: 15.4" (390 mm)
Travel Speed
2.7 mph (4.4 kph) / 1.6 mph (2.5 kph)
Drawbar Pulling Force
8,520 lbf (37.9 kN)
Operating Weight
9,340 lbs (4,240 kg)
Fuel Tank
11.1 gallons (US) (42 ltr)
Bucket Digging Force
7,240 lbf (32.2 kN)
Arm Crowding Force
4,380 lbf (19.5 kN)
Overall Height (to top of boom)
8' 4" (2,550 mm)
Overall Width
5' 7" (1,700 mm)
Ground Clearance
9.4" (240 mm)
Tail Swing Radius
2' 9" (850 mm)
Distance From Center of Swing To Rear End
2' 9" (850 mm)
Tumbler Distance
5' 7" (1,700 mm)
Track Gauge
4' 7" (1,400 mm)
Shoe Width
11.8 (300 mm)
Overall Width of Upperstructure
5' (1,530 mm)
Max Digging Reach
18' 6" (5,640 mm)
Max Digging Reach At Ground Level
18' (5,490 mm)
Max Digging Depth
11' (3,350 mm)
Max Digging Height
16' 7" (5,050 mm)
Max Dumping Clearance
12' (3,670 mm)
Max Vertical Wall Digging Depth
9' 1" (2,760 mm)
Min Swing Radius
7' 8" (2,330 mm)
Digging Depth For 8 Feet Flat Bottom
9' 7" (2,930 mm)

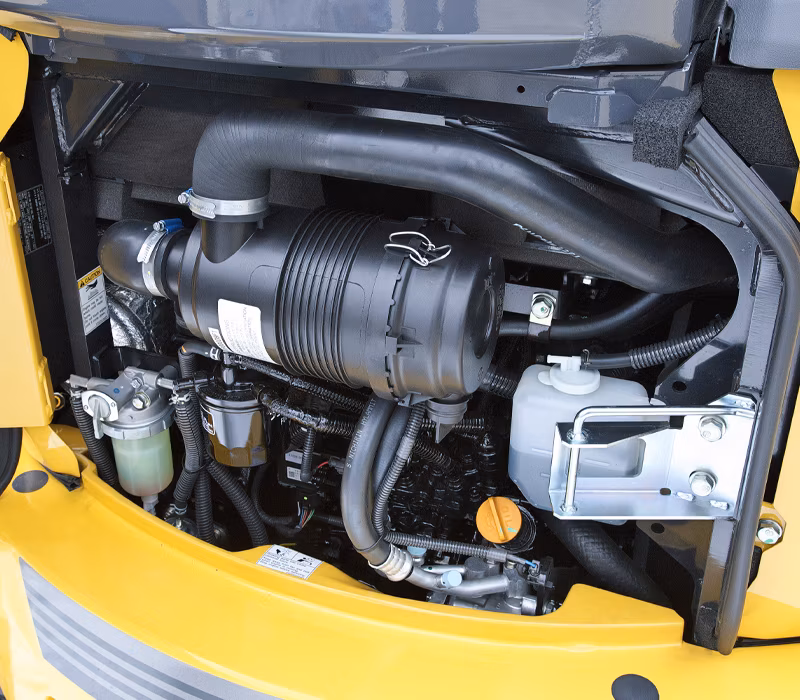

Model
Yanmar 3TNV88F-EPYBD
Power Output
24.4 hp (18.2 kW) 23.1 hp (17.2 kW)
Max Torque
64.8 lbf (87.8 Nm)
Displacement
100.2 in³ (1.642 ltr)
