Description

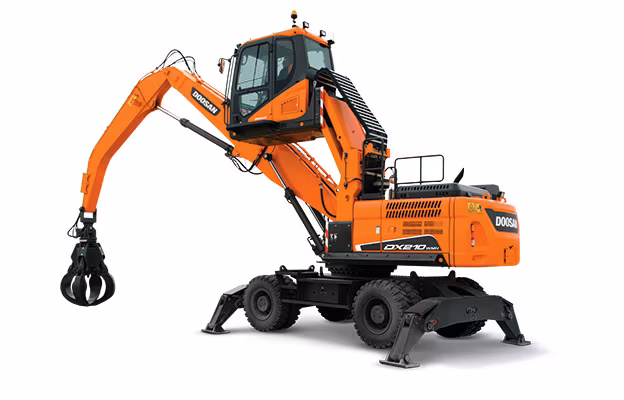

Develon DX210WMH
Specifications
Manufacturer
Develon
Model
DX210WMH
Year
2025
Category
Material Handling Equipment
Subcategory
Material Handlers
Parent Id
0
Child Count
0
Rated Flywheel Power (Gross)
170.3 hp @ 2,000 rpm
Rated Horse Power (Net)
160.9 hp @ 2,000 rpm
Engine Emissions Tier (EPA)
T3
Swing Performance: Max Swing Torque
60786 lbf ft
Swing Performance: Max Swing Speed (At Efficiency)
11 rpm
Travel performance: Traction Force (Highest Value)
26742 lbf ft
Travel performance: Traveling Speed - Low (XXX/)
2.49 mph
Travel performance: Traveling Speed - High (/XXX)
22.37 mph
Operating Weight
58,202 lb
Standard Arm Length
14.76 ft
Fuel Tank
92.46 gal
Hydraulic System
73.97 gal
Engine Coolant
6.34 gal
Engine Oil
7.13 gal
Hydraulic Tank
54.16 gal
Noise Level: Guaranteed Sound Power Level
103 dBA
Noise Level: Operator
73.8 dBA
Shipping Height - Hose (With Attachment)
11' 8"
Shipping Length (Without Attachment)
31' 3"
Shipping Width (Standard)
8' 2"
Overall Height Over Cab
11' 2"
Max Digging Reach (Ground)
35' 9"
Max Digging Depth
16' 4"
Max Loading Height
39' 8"
Main Pump: Displacement
7.32 in³/rev
Control Valve: Relief Valve Pressure (Normal)
4,694 psi
Control Valve: Relief Valve Pressure (Boost)
4,978 psi
Main Pump: Main Relief Pressure
4,786 psi
Main Pump: Max. Flow Rate (each)
61.21 gal/min
