Description

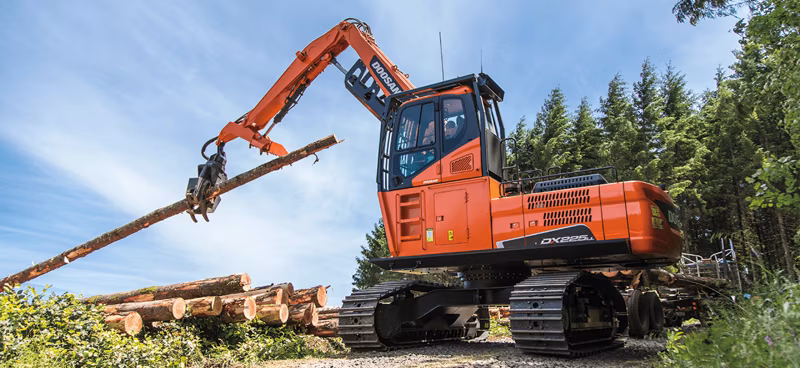

Develon DX225LL-5
Specifications
Manufacturer
Develon
Model
DX225LL-5
Year
2025
Category
Logging Equipment
Subcategory
Log Loaders
Engine Rated Flywheel Power (Gross)
166.7 hp @ 1,800 rpm
Engine Rated Horse Power (Net)
162.8 hp @ 1,800 rpm
Engine Max. Torque (Net)
557 lbf ft @ 1,400 rpm
Engine Engine Emissions Tier (EPA)
Tier IV
Undercarriage Upper Rollers: Quantity Per Side
2
Undercarriage Lower Rollers: Quantity Per Side
9
Undercarriage Track Length
15' 2"
Undercarriage Track Link: Track Gauge
6' 6"
Swing Mechanism Swing Performance: Max Swing Torque
34718 lbf ft
Swing Mechanism Swing Performance: Max Swing Speed (At Efficiency)
10.2 rpm
Travel System/Drive Mechanism Travel performance: Traction Force (Highest Value)
238183 lbf ft @ 100 %
Travel System/Drive Mechanism Travel performance: Traveling Speed - Low (XXX/)
1.57 mph
Travel System/Drive Mechanism Travel performance: Traveling Speed - High (/XXX)
2.75 mph
Travel System/Drive Mechanism Travel performance: Gradeability
35° @ 70 %
Weights Operating Weight
68,784 lb
Weights Standard Boom Length
20.17 ft
Weights Standard Arm Length
12 ft
Weights Shoe Width
2' 3"
Working Range Max Digging Reach (Ground)
36' 0"
Working Range Max Digging Depth
11' 3"
Working Range Max Loading Height
23' 1"
Digging Force (ISO) Arm Digging Force - Pressure up
20,503 lb
Digging Force (ISO) Bucket Digging Force - Pressure up
28,881 lb
Digging Force (IS
O) Arm Digging Force - Normal
19,180 lb
Refill Capacities Fuel Tank
264.17 gal
Refill Capacities Hydraulic System
63.4 gal
Refill Capacities Engine Coolant
6.34 gal
Refill Capacities Engine Oil
7.13 gal
Refill Capacities Hydraulic Tank
37.25 gal
Environment Noise Level: Guaranteed Sound Power Level
104 dBA
Environment Noise Level: Operator
73 dBA
Lift Capacity Lifting Capacity over front @ Horizontal Distance - 10 ft Above Ground
15,270 lb @ 15 ft
Lift Capacity Lifting Capacity over front @ Horizontal Distance - Ground Level
18,270 lb @ 15 ft
Lift Capacity Lifting Capacity over front @ Horizontal Distance - 10 ft Below Ground
16,320 lb @ 15 ft
Dimensions Shipping Height - Hose (With Attachment)
11' 6"
Dimensions Shipping Length (Without Attachment)
45' 5"
Dimensions Shipping Width (Standard)
11' 9"
Dimensions Overall Height Over Cab
15' 1"
Hydraulic System Main Pump: Displacement
359.43 in³/rev
Hydraulic System Control Valve: Relief Valve Pressure (Normal)
4,786 psi
Hydraulic System Control Valve: Relief Valve Pressure (Boost)
5,076 psi
Hydraulic System Main Pump: Max. Flow Rate (each)
56.4 gal/min
Hydraulic System Main Pump: Main Relief Pressure
4,694 psi
