Description

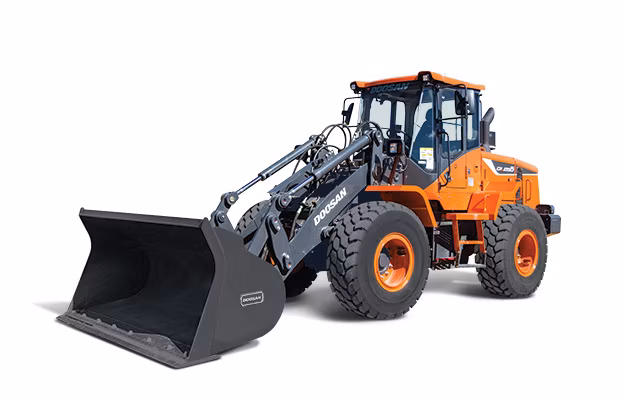

Develon - DL250TC-5
Specifications
Manufacturer
Develon
Model
DL250TC-5
Year
2025
Category
Loaders
Subcategory
Wheel Loaders
Rated Horse Power (Net)
171.7 hp @ 2,100 rpm
Max Torque (Net)
593 lbf ft @ 1,400 rpm
Rated Flywheel Power (Gross)
171.7 hp @ 2,100 rpm
Max. Torque (Net)
593 lbf ft @ 1,400 rpm
Fuel Tank
62.08 gal
Cooling System
8.29 gal
Hydraulic System
39.63 gal
Hydraulic Tank
31.7 gal
Travel performance: Gradeability
30° @ 58 %
Traveling performance: Max Tractive Effort
26,455 lb
Operating Weight
31,592 lb
Travel Speed Forward - 1st gear
4.1 mph
Bucket Capacity
3.27 yd³
Traveling Performance: Max. Tractive Effort
26,455 lb
Static Tipping Load (Straight)
20,470 lb
Static Tipping Load (Full Turn)
18,078 lb
Breakout Force
22,930 lbf
Travel Speed Forward - 1St Gear
4.1 mph
Dump reach at 45° (fully raised)
4' 3"
Dump height at 45° (fully raised)
9' 0"
Overall Height
10' 9"
Ground Clearance
1' 5"
Rear Axle Oscillation
22°
Bucket Width
8' 11"
Hinge Pin Height
12' 10"
Wheel Base
9' 10"
External Turning Radius at Bucket Edge
20' 2"
Static Tipping Load (Full Turn)
18,078 lb
Breakout Force
22,930 lbf
Static Tipping Load (Straight)
20,470 lb
Bucket Capacity
3.27 yd³
Overall Length
25' 7"
Dump Reach At 45° (Fully Raised)
4' 3"
Dump Height At 45° (Fully Raised)
9' 0"
External Turning Radius At Bucket Edge
20' 2"
Main Pump: Displacement
4.52 in³/rev
Boom Speed - Up (Loaded)
5.8 s (±0.5 s)
Boom Speed - Down
2.9 s (±0.4 s)
Bucket Speed - Dump
2.1 s (±0.3 s)
Main Pump: Max Flow Rate (each)
40.95 gal/min
Main Pump: Main Relief Pressure
3,843 psi
Total Cycle Time
10.8 s (±0.3 s)
Main Pump: Max. Flow Rate (Each)
40.95 gal/min
