Description

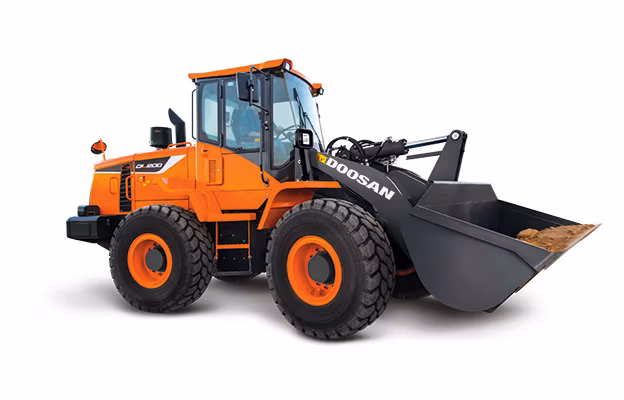

Develon DL200-5
Specifications
Manufacturer
Develon
Model
DL200-5
Year
2025
Category
Loaders
Subcategory
Wheel Loaders
Parent Id
0
Child Count
0
Rated Horse Power (Net)
142.1 Hp @ 2,200 Rpm
Max Torque (Net)
413 lbf ft @ 1,400 rpm
Rated Flywheel Power (Gross)
142.1 Hp @ 2,200 Rpm
Max. Torque (Net)
413 lbf ft @ 1,400 Rpm
Operating Weight
25,794 lb
Travel performance: Gradeability
29° @ 55 %
Traveling performance: Max Tractive Effort
18,298 lb
Traveling Performance: Max. Tractive Effort
18,298 Lb
Travel Speed Forward - 1St Gear
1.24 Mph
Cooling System
8.06 Gal
Dump height at 45° (fully raised)
9' 0"
Overall Height
10' 9"
Wheel Base
9' 6"
Static Tipping Load (Full Turn)
18,618 Lb
Rear Axle Oscillation
22°
Bucket Width
8' 4"
External Turning Radius at Bucket Edge
19' 0"
Static Tipping Load (Straight)
21,076 Lb
Breakout Force
21,919 Lbf
Travel Speed Forward - 1st gear
1.24 mph (8.08 mph)
Bucket Capacity
2.62 Yd³
Hinge Pin Height
12' 2"
Hydraulic System
34.3 gal
Hydraulic Tank
34.1 gal
Dump reach at 45° (fully raised)
3' 4"
Overall Length
23' 4"
Ground Clearance
1' 5"
Fuel Tank
48.08 gal
Cooling System
8.06 gal
Dump Reach At 45° (Fully Raised)
3' 4"
Dump Height At 45° (Fully Raised)
9' 0"
External Turning Radius At Bucket Edge
19' 0"
Total Cycle Time
10.5 S (±0.3 S)
Main Pump: Displacement
2.69 In³/Rev
Boom Speed - Up (Loaded)
5.7 S (±0.5 S)
Boom Speed - Down
3.5 S (±0.4 S)
Bucket Speed - Dump
1.3 S (±0.3 S)
Main Pump: Max Flow Rate (each)
47.55 gal/min
Main Pump: Main Relief Pressure
3,118 Psi
Main Pump: Max. Flow Rate (Each)
47.55 Gal/Min
