Description

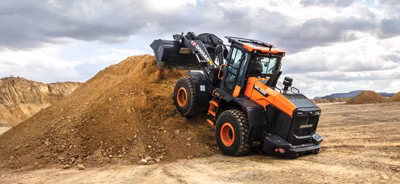

Develon DL280-7
Specifications
Manufacturer
Develon
Model
DL280-7
Year
2025
Category
Loaders
Subcategory
Wheel Loader
Model
Doosan DL06
Rated Flywheel Power (Gross)
189.1 hp @ 2000 rpm
Rated Horse Power (Net)
189.1 hp @ 2000 rpm
Max. Torque (Net)
902 lbf ft @ 1400 rpm
Engine Emissions Tier (Epa)
Tier 4
Engine After Treatment
SCR + DOC
Engine Make
Doosan
Engine Number Of Cylinders
6
Engine Displacement
360 in³
Total Cycle Time
10.1 s (±0.4 s)
Tire Size
20.5R25 L3
Travel Performance: Gradeability
58 ° @ 30 %
Traveling Performance: Max. Tractive Effort
30644 lb
Operating Weight
34552 lb
Bucket Capacity
3.66 yd³
Static Tipping Load (Straight)
27064 lb
Static Tipping Load (Full Turn)
23856 lb
Breakout Force
32822 lbf
Speeds Fwd
4
Speeds Rev
3
Travel Speed Forward - 1St Gear
3.91 mph
Travel Speed Forward - 4Th Gear
22.12 mph
Final Drive
Planetary
Differential Type
Limited Slip
Fuel Tank
62.08 gal
Cooling System
8.98 gal
Def / Ad Blue Tank
7.93 gal
Tread Width
6' 8"
Bucket Width
8' 11"
Hinge Pin Height
12' 11"
Dump Reach At 45° (Fully Raised)
3' 9"
Dump Height At 45° (Fully Raised)
9' 3"
Overall Height
11' 0"
Overall Length
25' 1"
Wheel Base
10' 0"
Ground Clearance
1' 3"
External Turning Radius At Bucket Edge
20' 1"
Rear Axle Oscillation
22 °
Digging Depth
4.0"
Main Pump: Displacement
7.51 in³/rev
System Pressure: Work
3843 psi
Main Pump: Max. Flow Rate (Each)
64.99 gal/min
Main Pump: Quantity
1
Main Pump: Main Relief Pressure
3843 psi
Hydraulic System
31.7 gal
Hydraulic Tank
22.45 gal
