Description

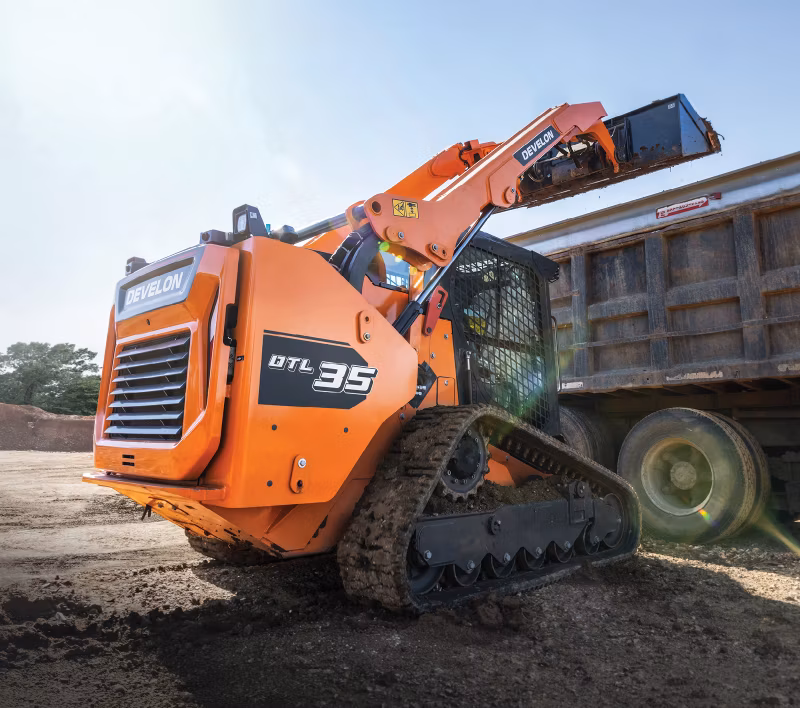

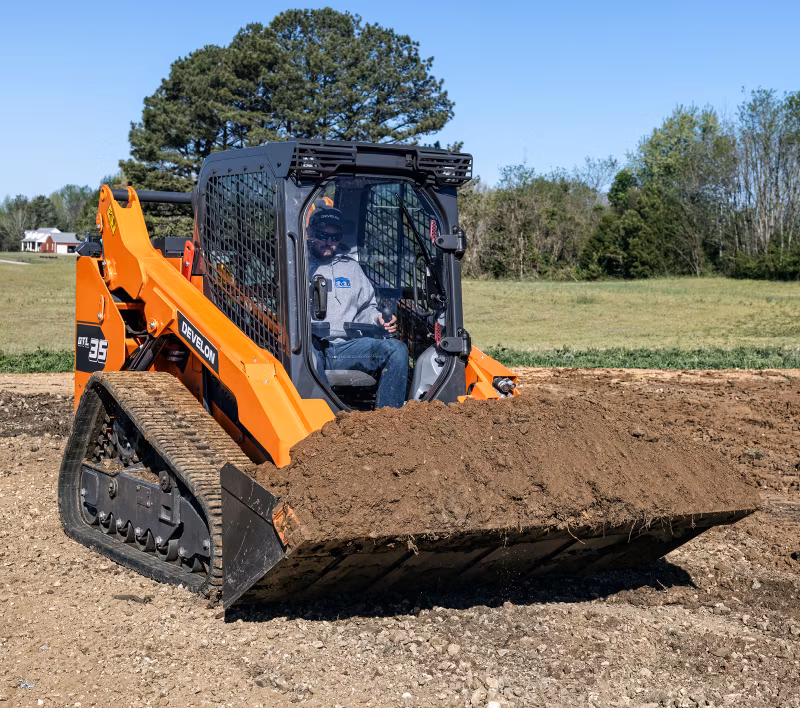

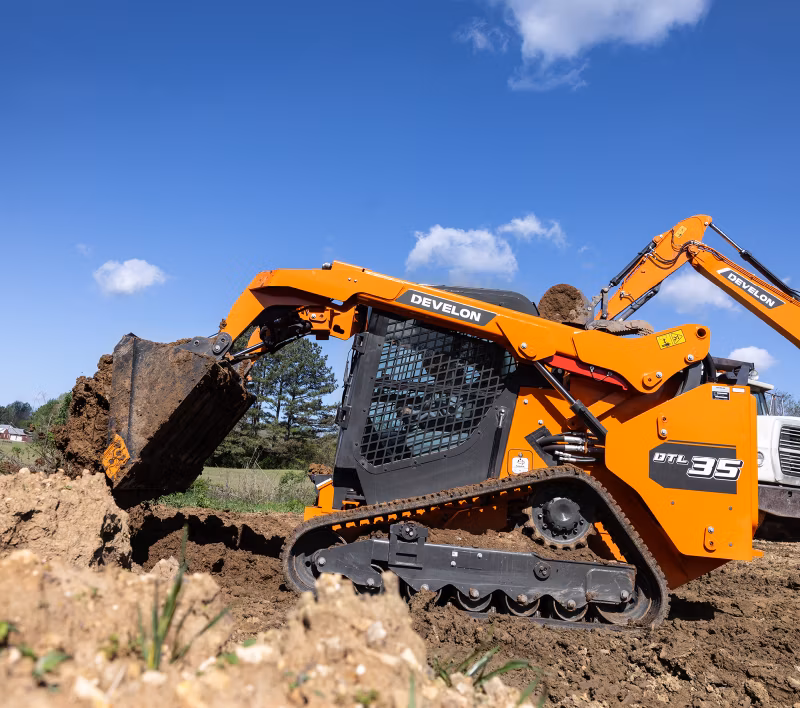

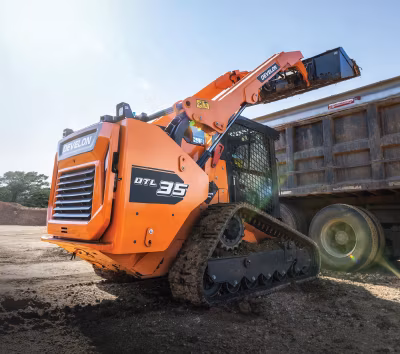

More Horses in This Track. With top-of-the-line horsepower (115.3), the DTL35 compact track loader is up for anything. Get the maneuverability, travel speed and power to get more done in the most challenging work areas. Our ride control feature reduces shocks and vibrations, enhancing stability for the bucket and minimizing spillage when navigating rough terrain while carrying full loads. And creep control enhances the machine’s maneuverability and precision, giving you better control while operating at high rpms.
Specifications
Manufacturer
Develon
Model
DTL35
Year
2025
Category
Loaders
Subcategory
Compact Track Loaders
RATED HORSE POWER (GROSS)
115.3 hp @ 2400 rpm
TRACK IDLERS
Dual Flange Front / Single Flange Rear
SUSPENSION
Torsion Axle System
OPERATING WEIGHT
12785 lb
MAX TRAVEL SPEED
9.2 mph
RATED OPERATING CAPACITY (35% OF TIPPING LOAD)
3807 lb
RATED OPERATING CAPACITY (50% OF TIPPING LOAD) one
5439 lb
HEIGHT TO TOP OF CAB
7' 0"
LENGTH WITHOUT BUCKET
11' 1"
VEHICLE WIDTH (400MM SHOE)
6' 5"
VEHICLE WIDTH (450MM SHOE) one
6' 7"
HEIGHT TO HINGE PINS AT MAX LIFT
10' 9"
CLEARANCE AT MAX LIFT AND DUMP
8' 1"
REACH AT MAX LIFT AND DUMP
3' 10"
MAX AUX FLOW
22 gal/min
STANDARD/HIGH AUX FLOW
22 GPM (84 LPM) / 40 GPM (151 LPM)
